English
1. INTRODUCTION
11

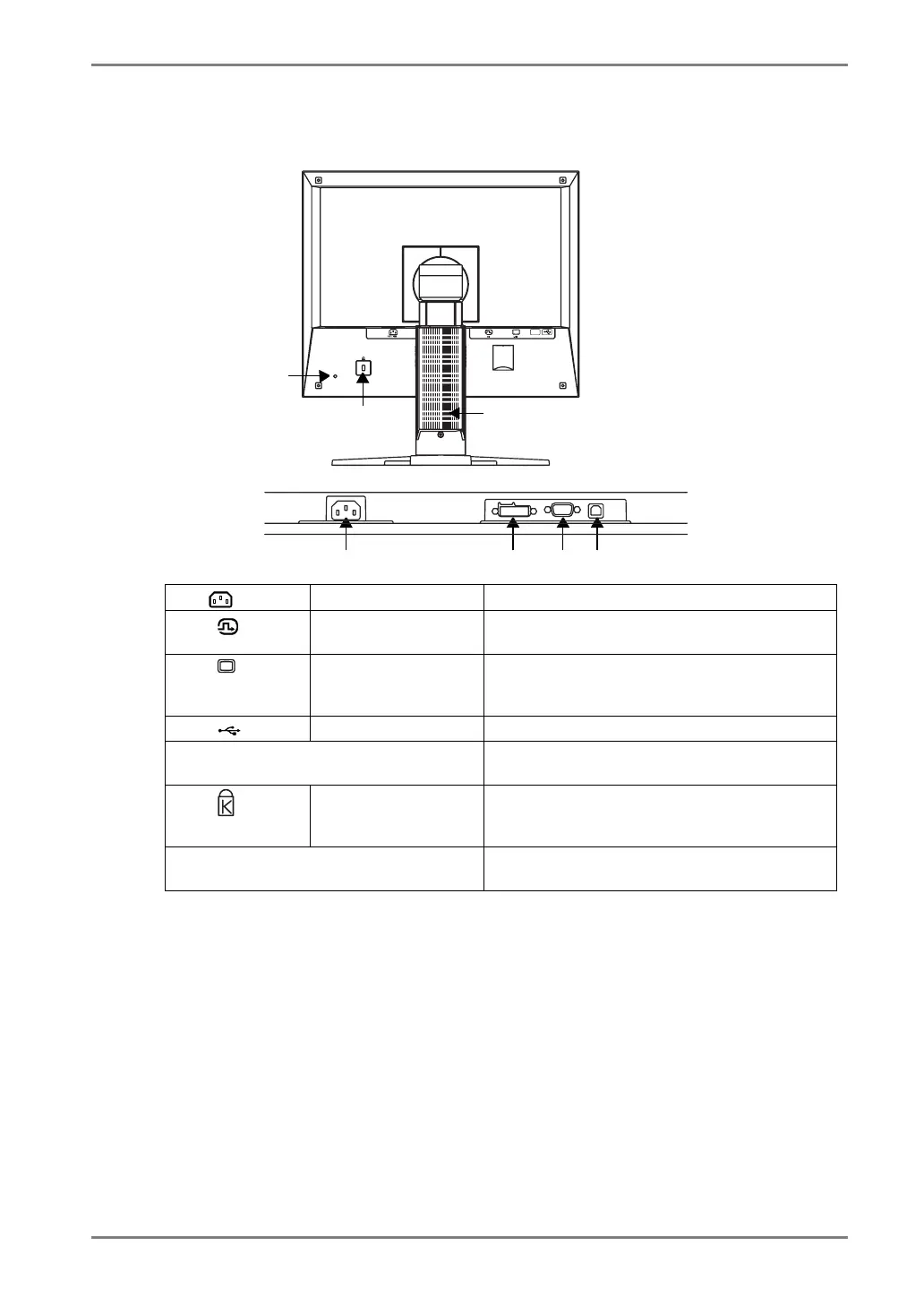

Rear
(14)
(15)
(13)
(9) (10) (11)(12)
(9)
Power Connector Connect the power cord.
(10)
DVI-D Connector
(SIGNAL1)
Connect the optional digital cable.
(11)
D-Sub mini 15 pin
Connector
(SIGNAL2)
Connect the enclosed analog cable (MD-
C87)
(12) USB port (Up) Connect the USB cable (MD-C93)
(13) Hole for TP1 Hole for installing the lead of the TP1
(Optional Touch Panel Pointer).
(14)
Security Lock Slot Allows for connection of a security cable.
This lock supports Kensington’s MicroSaver
security system.
(15) Stand (Detachable) The LCD monitor can be used with an other
stand by removing the stand (see page 25).
Bottom
To Next Page
