Eizo L761T-C

English
8. SPECIFICATIONS
33

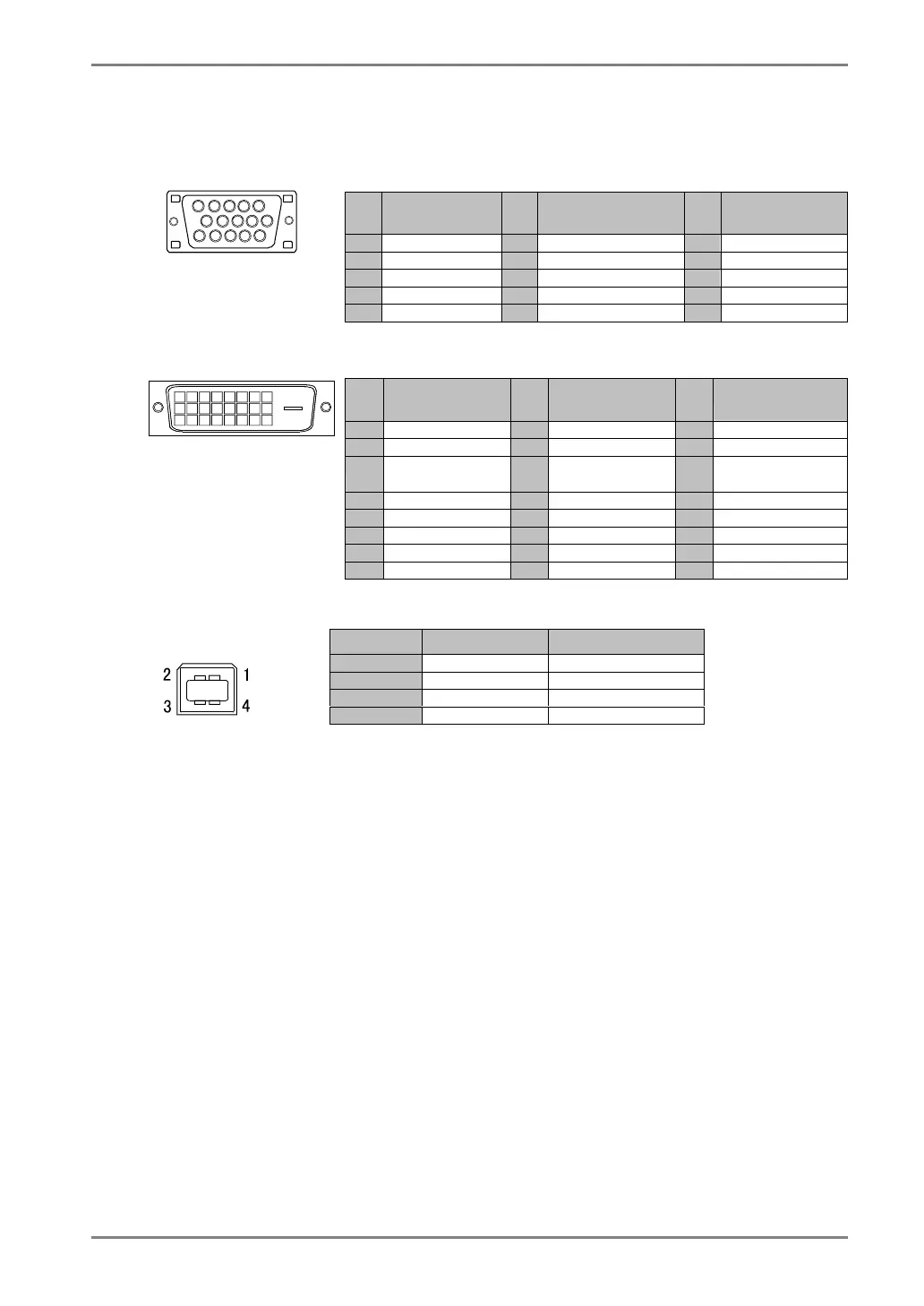

Pin Assignment
D-Sub mini 15 pin connector
Pin
No.
Signal Pin
No.
Signal Pin
No.
Signal
1 Red video 6 Red video ground 11 Ground
2 Green video 7 Green video ground 12 Data (SDA)
3 Blue video 8 Blue video ground 13 H. Sync
4 Ground 9 NC* 14 V. S y n c
5 NC* 10 Ground 15 Clock (SCL)
(*NC: No Connection)
DVI-D Connector
Pin
No.
Signal Pin
No.
Signal Pin
No.
Signal
1 TMDS Data2- 9 TMDS Data1- 17 TMDS Data0-
2 TMDS Data2+ 10 TMDS Data1+ 18 TMDS Data0+
3 TMDS Data2/4
Shield
11 TMDS Data1/3
Shield
19 TMDS Data0/5
Shield
4 NC* 12 NC* 20 NC*
5 NC* 13 NC* 21 NC*
6 DDC Clock (SCL) 14 +5V Power 22 TMDS Clock shield
7 DDC Data (SDA) 15 Ground (For +5V) 23 TMDS Clock+
8 NC* 16 Hot Plug Detect 24 TMDS Clock-
(*NC: No Connection)
USB Port
Contact No. Signal Remarks
1
VCC Cable power
2
-DATA Serial data
3
+DATA Serial data
4
Ground Cable Ground
5
1
3
4
2
8
7
6
9
10
12
1314
15
11
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
19
20
2117
18 22 23
24
Upstream
Series B connector
