EK Loop Vertical GPU Holder EVO Gen4 Riser - Step 7: Riser Cable Connection to Motherboard; Step 8: PCIE Bracket Removal

- 13 -

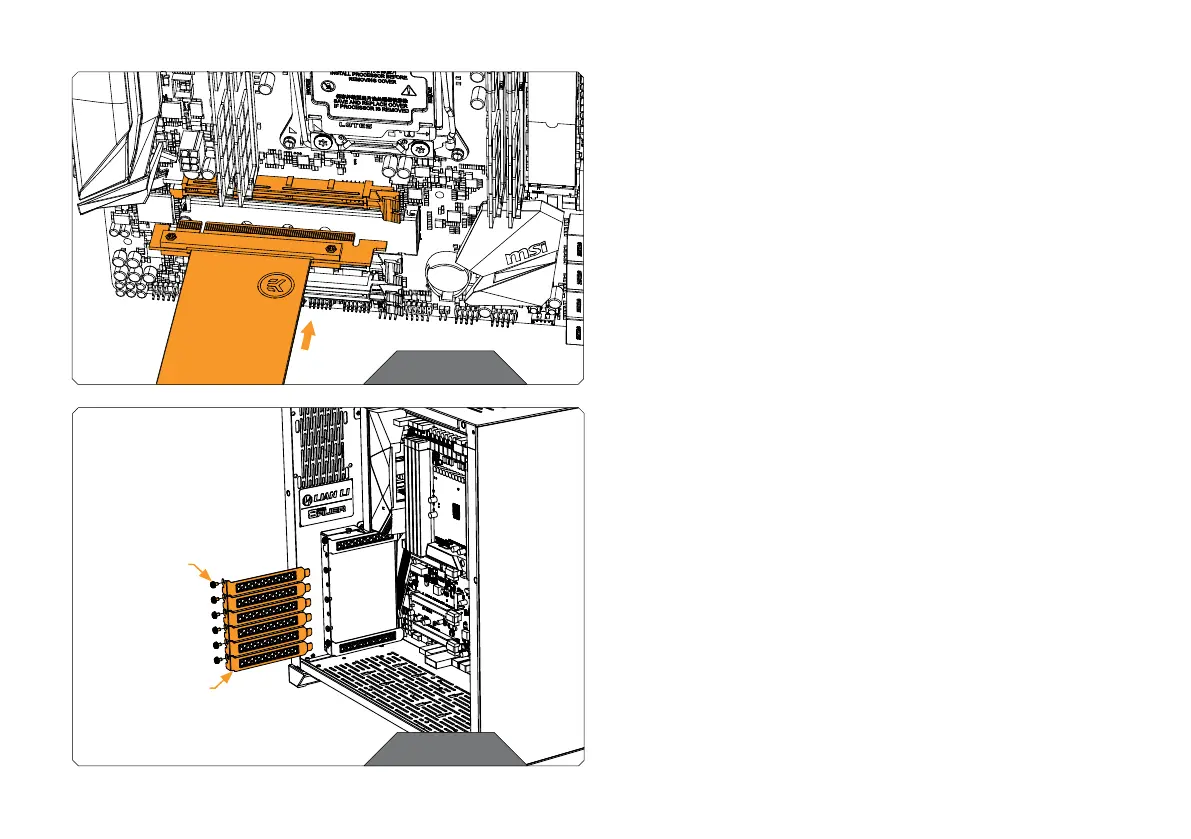

STEP 7
STEP 7
Carefully connect the Riser cable from the GPU Holder to the PCIE
slot on the motherboard.
STEP 8
PCIe
BRACKETS
SAVE THE
SCREWS
FOR L ATER
STEP 8
Remove the appropriate PCIE brackets from your case. Which
brackets you need to remove depends on the installation option you
chose at STEP 1.
Save all removed screws - you’ll need them later.
