TECNOEKA Srl ___________________________________________________________ operating and instruction manual
page 18 _____________________________________________________________________________________________

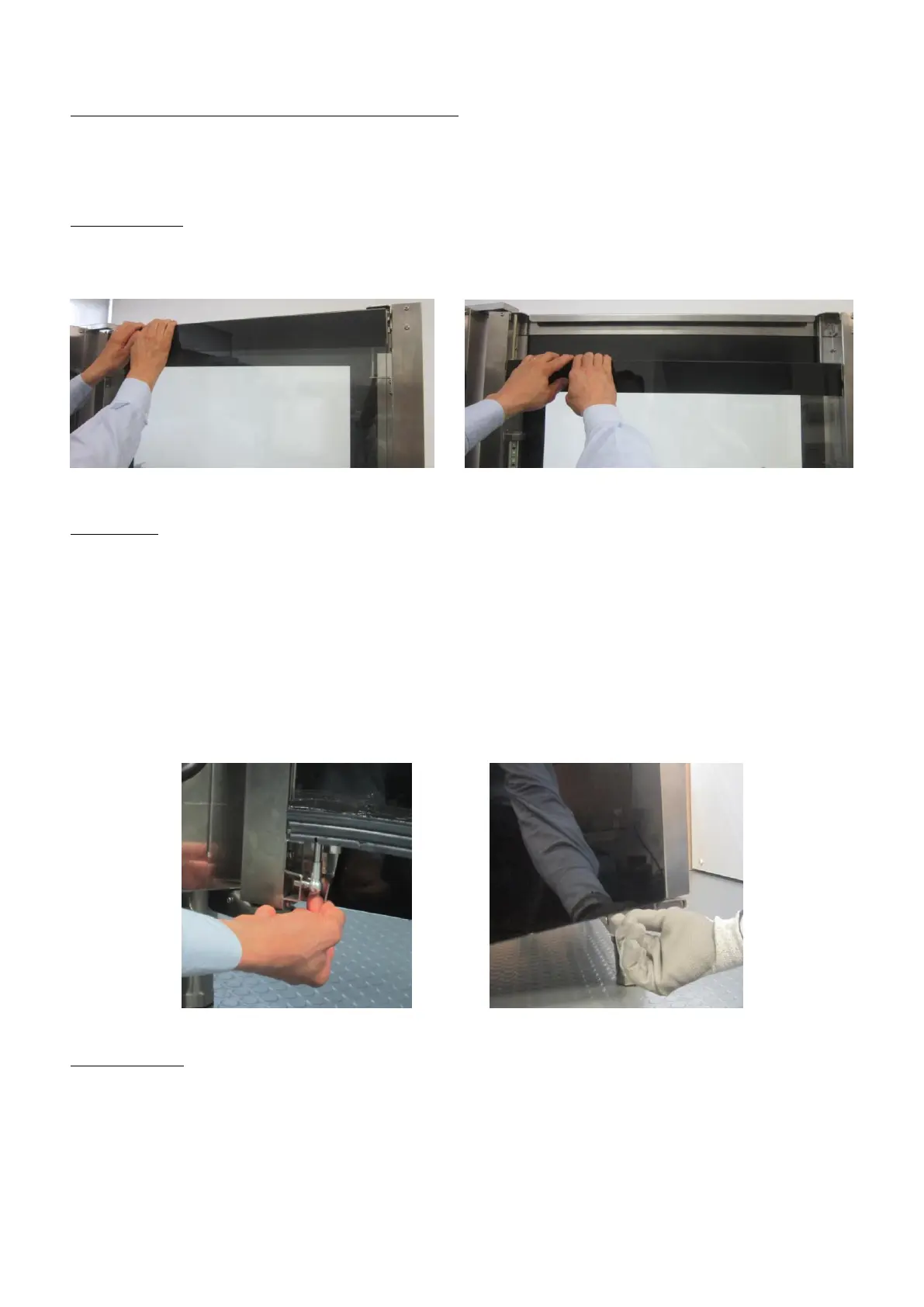

Only for mod. EKF 1664 TC e mod. EKF 2011 TC (wheeled models)
These models are equipped with a special mobility system (patented) of the internal door glass.
The system allows you to “slide” the internal glass down or up, according to the application
needs.
Glass "down"
To obtain this position the oven door must be completely opened and by exerting adequate force,
“slide” the internal door glass down until the mechanical “lock” device is engaged: the closing
“click” can be heard (Fig. 4).
Fig. 4
Glass "up"
To obtain this position, the oven door must be opened (even partially) and by acting on the
suitable “lever” in the lower portion (right side) of the door, behind the external glass, activate the
“release” device to let the internal glass “slide” up automatically.
Important
If the internal glass “release” operation is performed before using the oven (cooking chamber still
cold), it is recommended to completely open the door and act on the suitable “lever” from the
inside of the door (fig. 5). If the internal glass “release” operation is performed after using the
oven (cooking chamber is hot), it is recommended to partially open the door, let the hot air vent
off, and act on the suitable “lever” from the outside of the door using adequate heat protection
clothing (fig. 6).
Fig. 5 Fig. 6
Glass “down” and door open with no tray trolley inserted
This position of the internal door glass lets the cooking chamber be hermetically closed without
the presence of the relevant tray trolley in or without needing to use a suitable closing partition.
The RED SCREEN (warning) is displayed with the words “DOOR GLASS LOWERED”.
When the door is closed, the OVERVIEW SCREEN is displayed (BLUE screen) and the oven may be
used for the “PRE-HEATING” function (paragraph 4.3.3.4) with no tray trolley in or for the SEMI-
AUTOMATIC CLEANING function (paragraph 8.2.2) and AUTOMATIC CLEANING of the cooking
chamber (with no tray trolley in) with the “KWT” system (paragraph 8.2.3).
