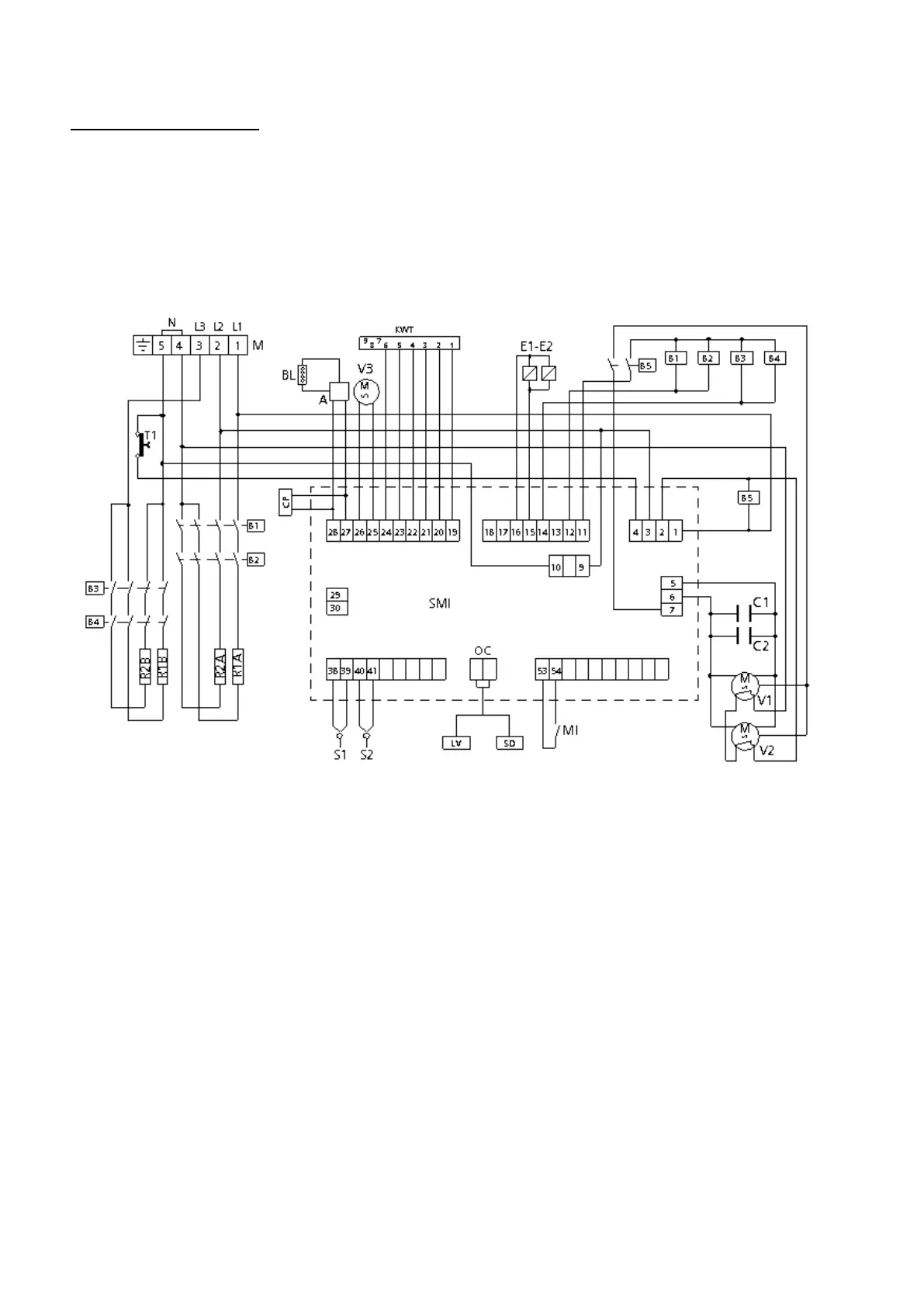

12 Wiring diagrams
MODELS EKF 616 TC – EKF 664 TC – EKF 711 TC
M Power supply terminal board
B1-B2-B3-B4 Contactor coils
B5 Relay coil
R1-R2 Circular resistors
T1 Safety thermostat
C1-C2 Capacitors
V1-V2 Radial motorfans
V3 Cooling motorfans
A LED Bar Power Supply Unit
BL LED Bar
MI Door microswitch
E1-E2 Water solenoid valves
S1 Cooking chamber probes
S2 Food “core” probe
SMI Microprocessor board
SD Display board
