TECNOEKA Srl ___________________________________________________________ operating and instruction manual
page 44 _____________________________________________________________________________________________

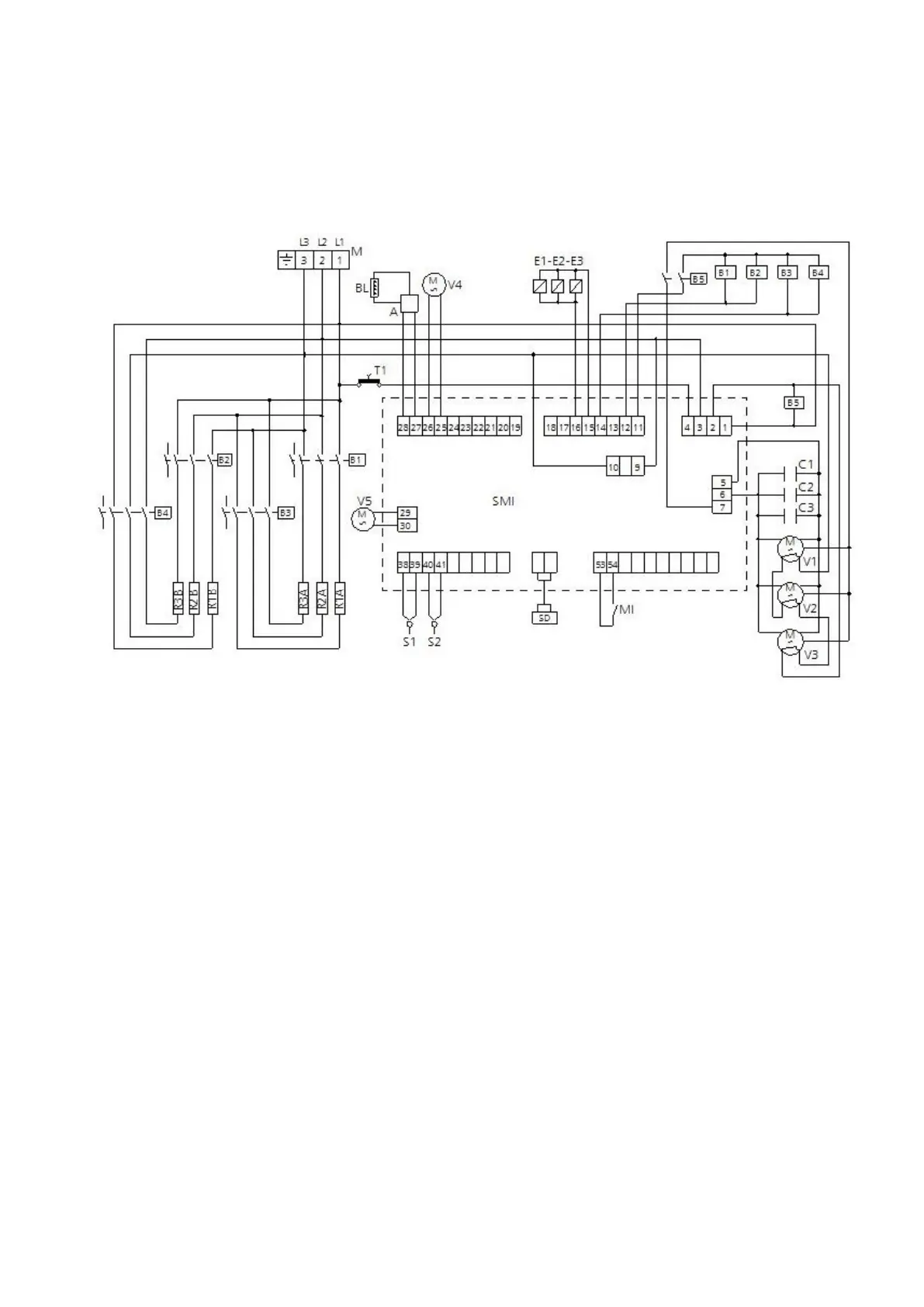

MODEL EKF 1064 TC/0/029 - EKF 1111 TC/1/029
M Power supply terminal board
B1-B2-B3-B4 Contactor coils
B5 Relay coil
R1-R2-R3 Circular resistors
T1 Safety thermostat
C1-C2-C3 Capacitors
V1-V2-V3 Radial motorfans
V4 Cooling motorfan
A LED Bar Power Supply Unit
BL LED Bar
MI Door microswitch
E1-E2-E3 Water solenoid valves
S1 Cooking chamber probes
S2 Food “core” probe
SMI Microprocessor board
SD Display board
