Elan 310 - GENERAL ARRANGEMENT; DECK LAYOUT

Owner’s Manual
17
4
4
.
.
2
2
.
.
D
D
E
E
F
F
I
I
N
N
I
I
T
T
I
I
O
O
N
N
O
O
F
F
D
D
E
E
S
S
I
I
G
G
N
N
ELAN 310 is designed and built in conformity with the requirements of the “A” ocean sailing”
design category. The “A” category sailing yacht is designed and built for sailing in waves up to
7 m and winds up to 10 Beaufort, i.e. 55 knots, 28 m/s or 100 km/h. It has to be suitable for
longer cruises, for instance ocean sailing as well as for coast sailing in the regions that are
not protected against winds and waves for several hundred miles.
4
4
.
.
3
3
.
.
M
M
A
A
X
X
I
I
M
M
U
U
M
M
T
T
O
O
T
T
A
A
L
L
L
L
O
O
A
A
D
D
(
(
d
d
i
i
s
s
p
p
l
l
a
a
c
c
e
e
m
m
e
e
n
n
t
t
m
m
a
a
x
x
)
)
Keep the total weight of boat provisions, miscellaneous equipment not supplied by
manufacturer and persons on board, below maximum total load and suitably distributed.
5
5
.
.
G
G
E
E
N
N
E
E
R
R
A
A
L
L
A
A
R
R
R
R
A
A
N
N
G
G
E
E
M
M
E
E
N
N
T
T
5
5
.
.
1
1
.
.
D
D
E
E
C
C
K
K
L
L
A
A
Y
Y
O
O
U
U
T
T

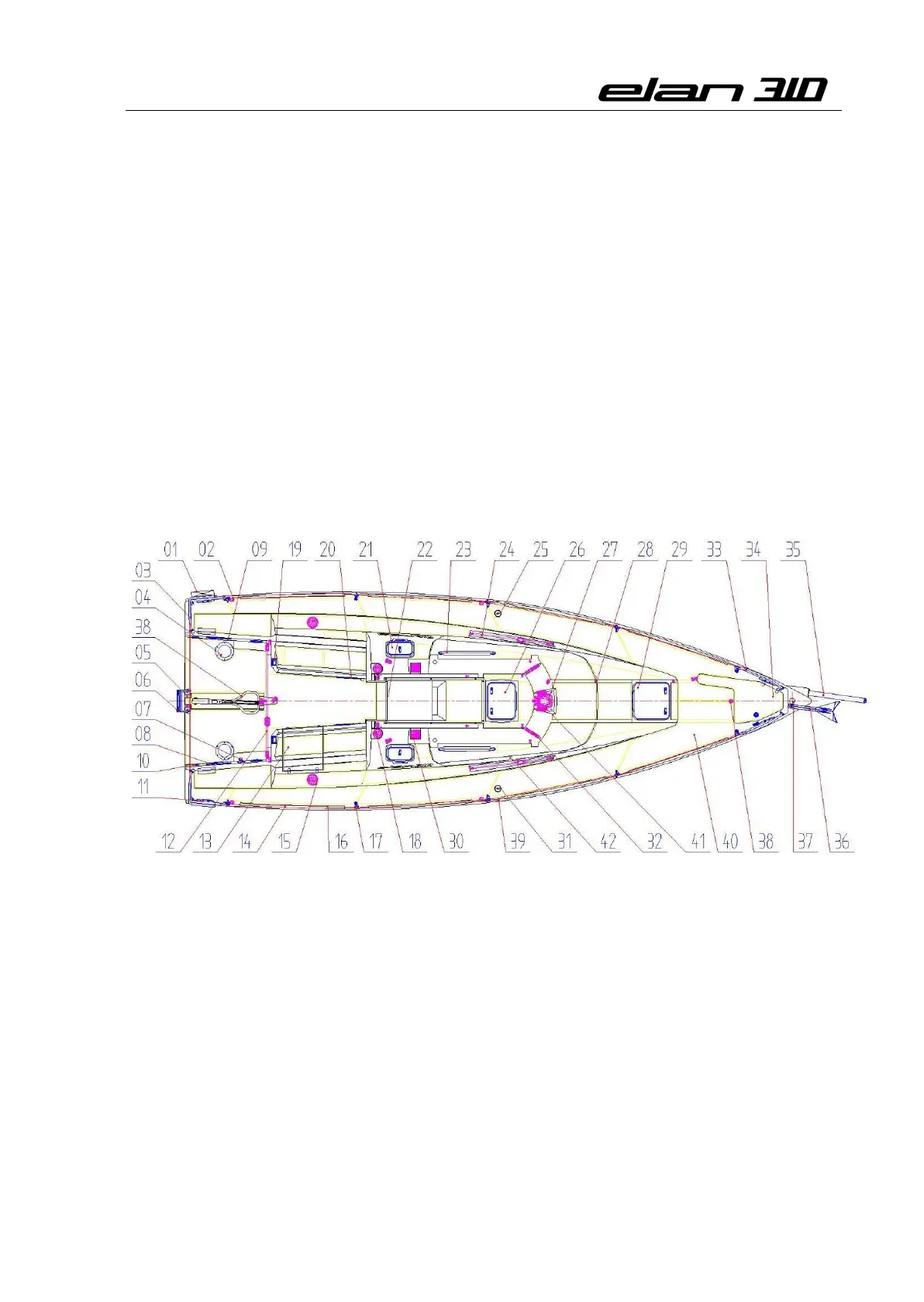

Figure 3
1. Horseshoe lifebuoy
2. Pad eye
3. Pushpit
4. Rudder bearing covers
5. Backstay system
6. Folding swimming ladder
7. Engine lever
8. Gas bottle compartment
9. Storage box
10. Hand operated bilge pump
11. Mooring cleats
12. Mainsheet track & system
13. Cockpit locker
14. Toe rail
15. Genoa winches 35.2 STA
16. Lifelines
17. Stanchions
18. Halyard winches 20.2 STA
19. Autopilot display
20. Cockpit portlights
21. Hatch
22. Sliding hatch
23. Grabrail
24. Genoa tracks & systems
25. Fuel filler
26. Hatch
27. Mat deck ring
28. Bullseye
29. Escape hatch
30. Stoppers
31. Water filler
32. Organizers
33. Bow pulpit
34. Anchor storage cover
35. Sliding bowsprit
36. Anchor bow roller
37. Forestay fitting
38. Steering tiller
39. Chainplates
40. Anti-slip surfaces
41. Mast base blocks
42. Custom glass portlights
