Elan 310 - Hot Water System

Owner’s Manual
26

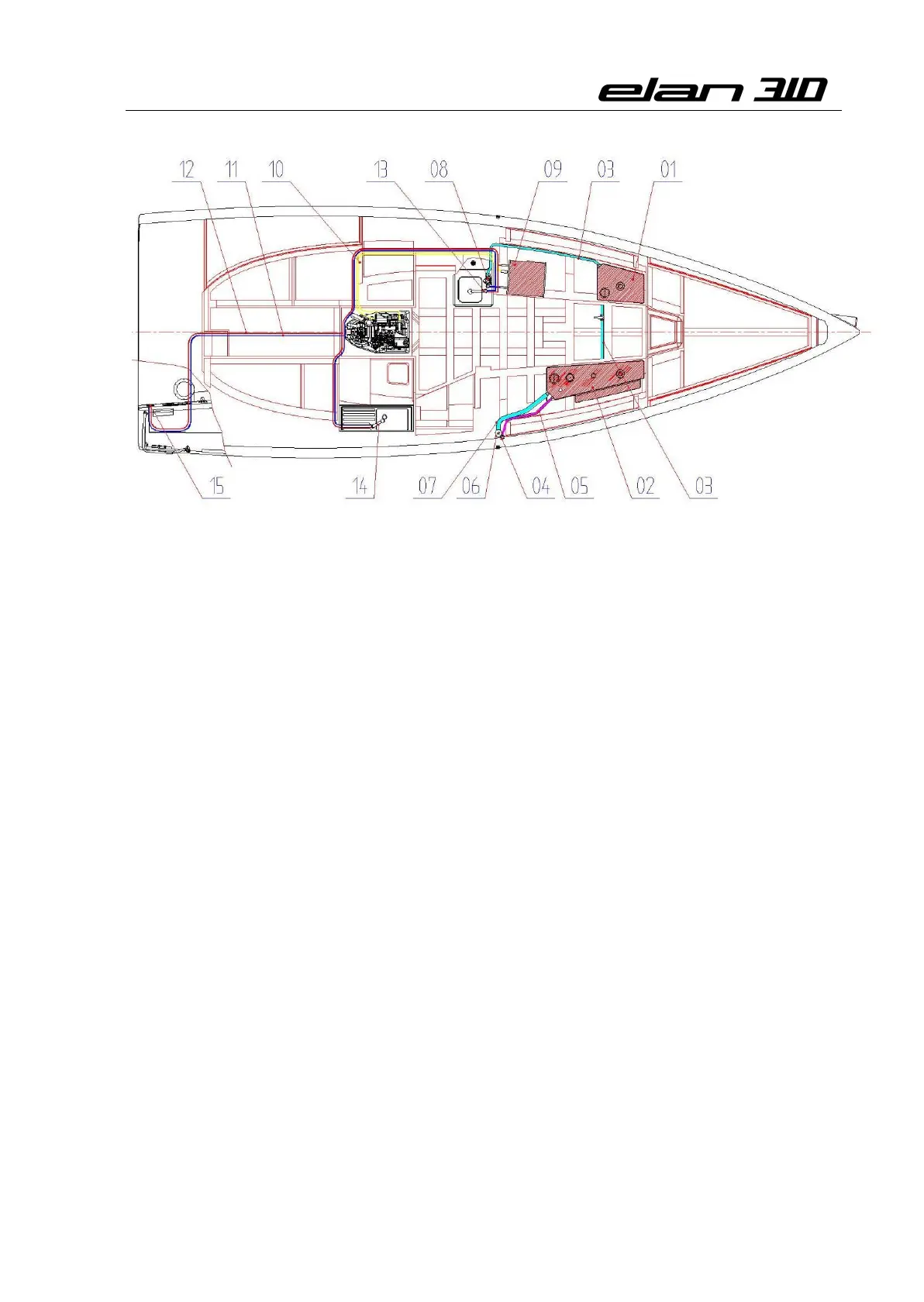

Figure 10
1. Fresh water tank - port ~ 45 l
2. Fresh water tank - starboard ~ 95 l
3. Water tank connection
4. Air vent
5. Tank ventilation hose
6. Fresh water deck filler
7. Fresh water filler hose
8. Electric fresh water pump
9. Water heater
10. Engine to water heater exchange
11. Cold water tube
12. Hot water tube
13. Galley tap
14. Head toilet tap
15. Cockpit shower tap
7
7
.
.
2
2
.
.
2
2
.
.
H
H
O
O
T
T
W
W
A
A
T
T
E
E
R
R
S
S
Y
Y
S
S
T
T
E
E
M
M
A separate hot water system leads hot water from the water heater (see Fig. 10) to the
users. The hot water system is filled with fresh water from the fresh water system. When the
empty hot water system is being filled, open the hot water seacocks at the taps to let air out
of the system.
For further details see the instructions supplied by the manufacturer and included in the
Owner’s Manual. Before using the hot water system, you should familiarize yourself with
those instructions.
The warranty will be valid only provided the maintenance instructions are strictly observed.
For details see the enclosed instructions supplied by the engine manufacturer.
Fresh water is heated in two ways:
 With the coolant water from the engine when the engine is in operation. The coolant
water runs through the water heater where it is used to heat the fresh water filled from
the fresh water system.
