6.2.2. ENGINE AND PROPELLER INSTALLATION
The standard version of the ELAN 310 is equipped with a VOLVO D1-20 engine - sail drive
version. The engine runs on normal diesel fuel D2. It is cooled with seawater in a closed
cooling circuit. Access to the engine is possible from the front by lifting the companionway
and via the engine compartment covers in the aft cabin or head/shower. For further
information see operation instructions supplied by the engine manufacturer.

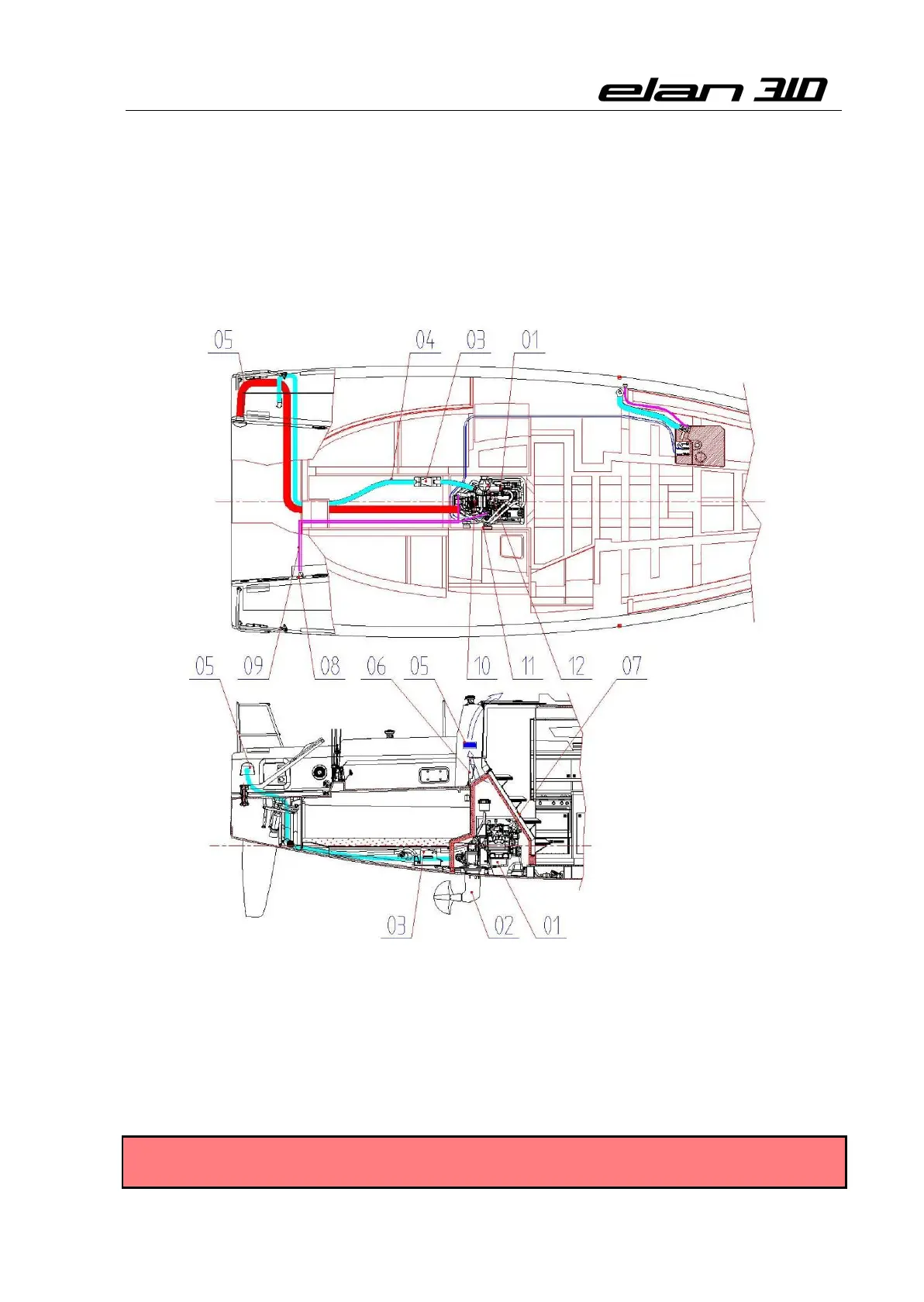

Figure 7
1. Engine Volvo D1-20
2. Sail-drive gearbox
3. Exhaust waterlock
4. Exhaust hose
5. Engine room ventilation
6. Engine panel
7. Fire extinguisher hole
8. Engine lever
9. Engine control cables
10. Sea water inlet seacock
(on sail-drive)
11. Sea water air vent
12. Sea water filter
WARNING: - Do not obstruct fuel lines (possible damage).
- Do not put flammable material in contact with hot engine parts.
