Elan D1200 - Trigger Inputs and Outputs

D1200 TRIGGERS
A/V RECEIVER
TRIGGER OUT
TRIGGER
OUT
+12VDC
TRIG OUT
+12V TRIGGER INPUTS
ALL
ON
1/2 3/4 5/6
7/8
9/10
11/12

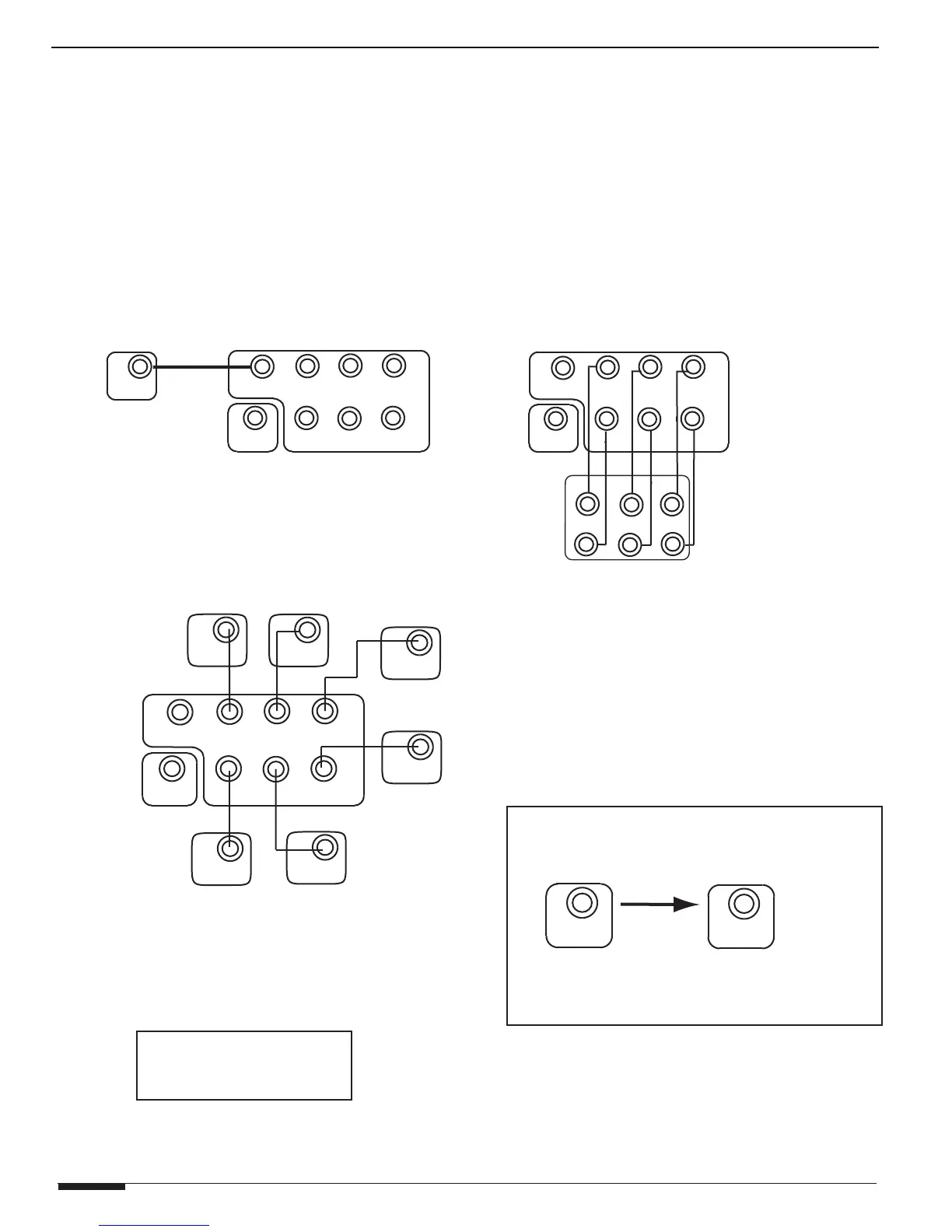

Single A/V Receiver Mutes/Turns
On all channels simultaneously
TRIGGER INPUTS
D1200 TRIGGERS
+12VDC
TRIG OUT
+12V TRIGGER INPUTS
ALL
ON
1/2 3/4 5/6
7/8
9/10
11/12
Multi-Zone System (S6) Mutes/Turns
On each Pair of Channels Independently
+12VDC
TRIG OUT
+12V TRIGGER INPUTS
ALL
ON
1/2 3/4 5/6
7/8
9/10
11/12
TRIGGER
OUT
TRIGGER
OUT
TRIGGER
OUT
TRIGGER
OUT
TRIGGER
OUT
TRIGGER
OUT
Multiple A/V Receivers Mute/Turn On
Each Pair of Channels Independently
A/V RECEIVER
TRIGGER OUT
(6 RECEIVERS SHOWN)
D1200
TRIGGERS
1
2
3
4 5
6
ZONE TRIGGER OUTPUTS
S6 ZONE TRIGGER
OUTPUTS
D1200
TRIGGER
OUT
TRIGGER IN
(ADDITIONAL AMP)
+12VDC
TRIG OUT
TRIGGER
IN
D1200 Turns On Additional Amplifier
With +12VDC Trigger Output
TRIGGER OUTPUT
TRIGGER INPUTS
ACCEPT 3 TO 24 VDC
PAGE 11
©ELAN Home Systems 2003 All rights reserved 07/03
D1200/D1201 INSTALLATION MANUAL & USER'S GUIDE ELAN HOME SYSTEMS
E. TRIGGER INPUTS/OUTPUT
Each channel pair of the D1200 has its own Remote Turn On/Muting circuit. Individual channel
pairs can be turned on or muted independently of any others. An ALL ON port allows the entire
amp to turn on and mute as one unit. The 12 Volt Trigger Out can be used to turn on other
equipment, additional amps, or to perform automated functions desired by the user. The Front
Display of the D1200 will show nA when a channel is in Mute.
