A. UNIVERSAL STEREO BUS MODES
One of the primary design goals for the D1200 was ease of installation and flexibility. The
Universal Stereo Bus has achieved this goal by grouping desired channels together without
the use of additional RCA patch cables. By using the BUS A Dip switch settings, any number
of outputs can be tied together to the same input. Use of BUS B allows any number of other
channels to be grouped together Independently of BUS A. Any channel not configured to
BUS A or BUS B remains independent.
STEREO
BUS A
STEREO
BUS B
OR
BUS A/
BUS B
INPUT

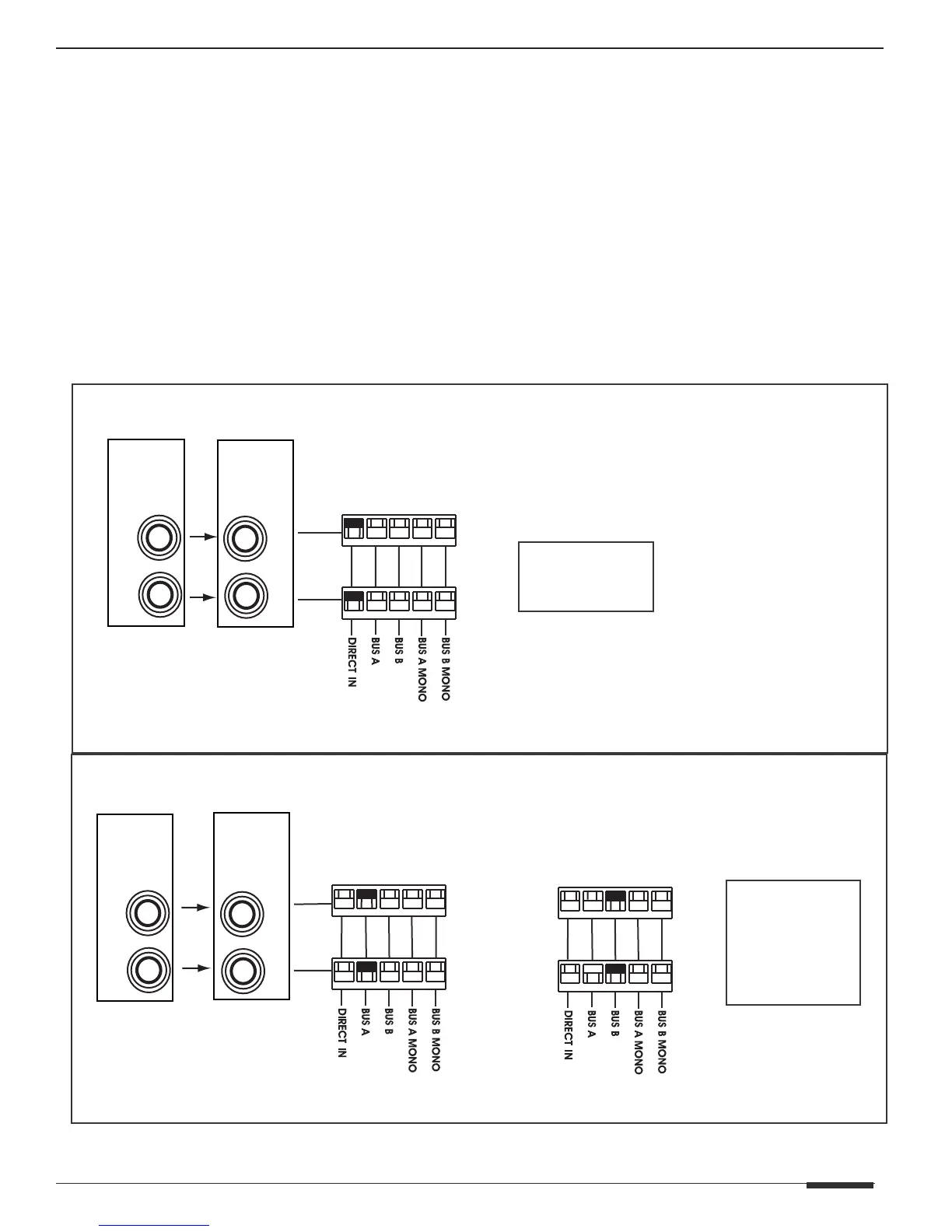

STEREO BUS MODES
STEREO
DIRECT IN
SRC/
ZONE
OUT
D1200
DIRECT
INPUT
STEREO DIRECT MODE
L & R INPUTS TO L & R CHANNEL SPECIFIC SPEAKER OUTPUTS
L & R SPEAKER OUTPUTS TO ALL BUS A (OR BUS B) CHANNELS
IV. SYSTEM MODES & CONFIGURATIONS
DIRECT IN DIP
SWITCH UP
(DEFAULT)
MOVE BUS A
OR B DIP
SWITCH TO
UP POSITION
PAGE 12
D1200/D1201 INSTALLATION MANUAL & USER'S GUIDE ELAN HOME SYSTEMS
©ELAN Home Systems 2003 All rights reserved 07/03
L
R
L
R
SRC/
ZONE
OUT
L
R
L
R
