Elan D1200 - Multi-Zone System Examples; Multi-Zone ELAN S System

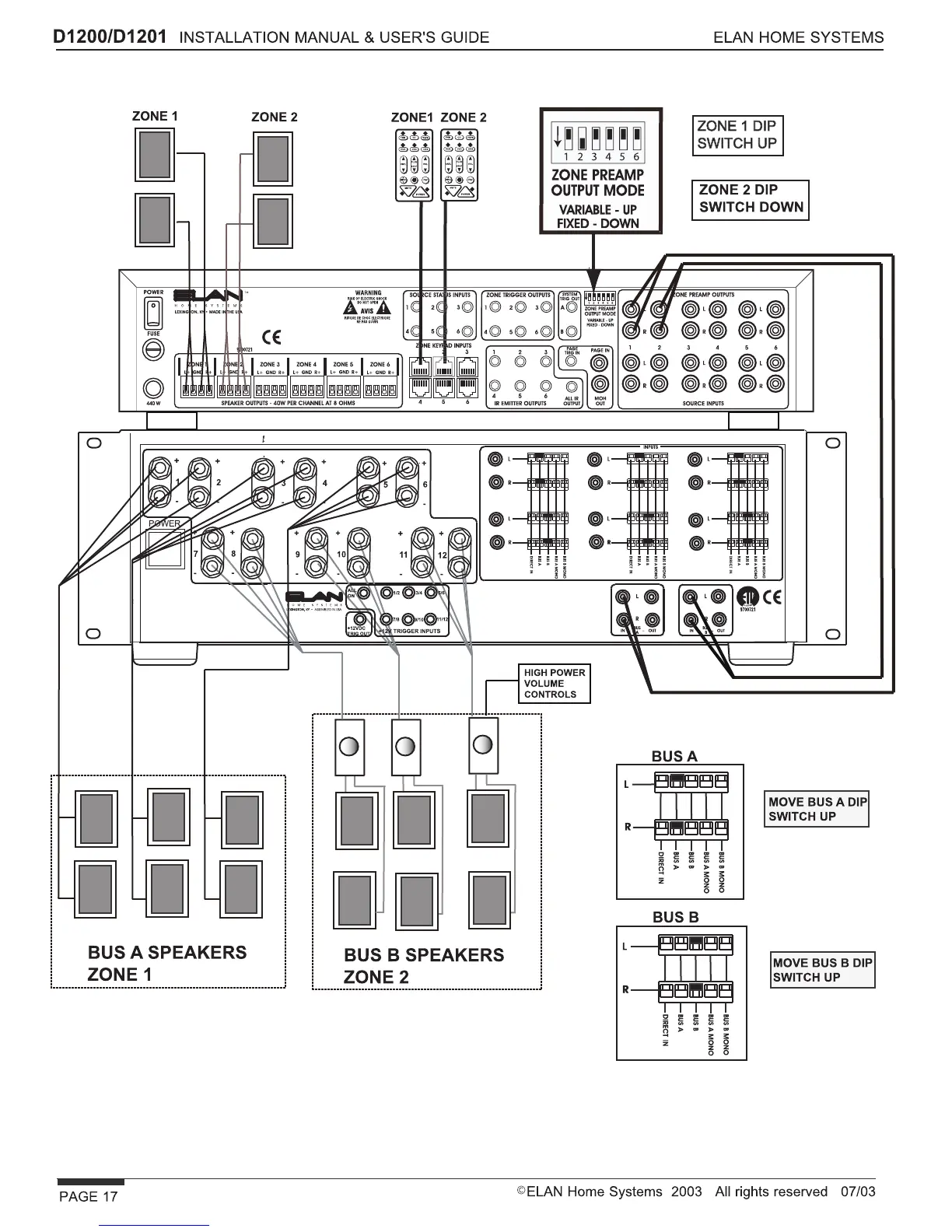

2. MULTI-ZONE ELAN S SYSTEM
S6
S6 6 ZONE SYSTEM (ZONE 1 & 2 SHOWN)
ZONE 1 PREAMP OUT VARIABLE
ZONE 2 PREAMP OUT FIXED
ALL SPEAKERS IN ZONE 1 VOLUME RAMPS UP/DOWN USING KEYPAD
MAIN SPEAKERS IN ZONE 2 VOLUME RAMPS SEPARATELY USING HIGH POWER VOLUME CONTROLS
BUS A AND BUS B ENABLED
