CAUTION: When sailing with inclination over 20 degrees, stop the engine.
All fuel capacity cannot be used. Make sure that the tank will be filled
over 10% of its capacity.
6.2.2. ENGINE AND PROPELLER INSTALLATION
The standard versions of the ELAN E4 are equipped with a VOLVO D1-30 engine – sail drive
version. The engine runs on normal diesel fuel (D2). It is cooled with seawater in a closed
cooling circuit. Access to the engine is possible from the front by lifting the companionway
and via the engine compartment cover in the aft cabins or head compartment. For further
information see operation instructions supplied by the engine manufacturer.

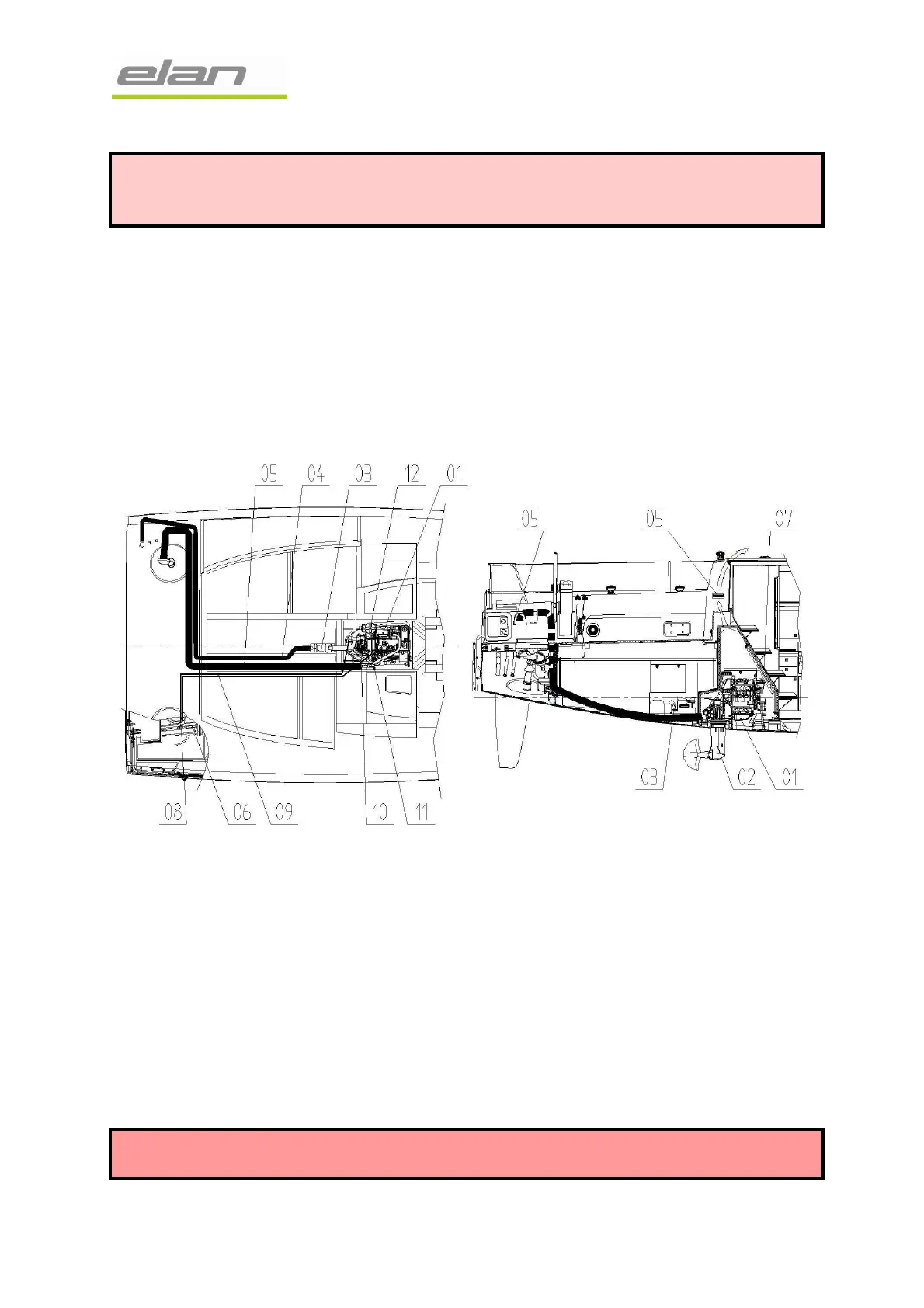

Figure 8
1. Engine Volvo D1-30
2. Sail drive gearbox
3. Exhaust waterlock
4. Exhaust hose
5. Engine room
ventilation
6. Engine panel with
engine stop
7. Fire extinguisher hole
8. Engine lever
9. Engine control cables
10. Sea water inlet
seacock (on sail-drive)
11. Sea water air vent
12. Sea water filter
WARNING: Do not obstruct fuel lines (possible damage).
Do not put flammable material in contact with hot engine parts.
