7.6.3. PHILIPPI INSTRUMENT SETUP AND SETTINGS

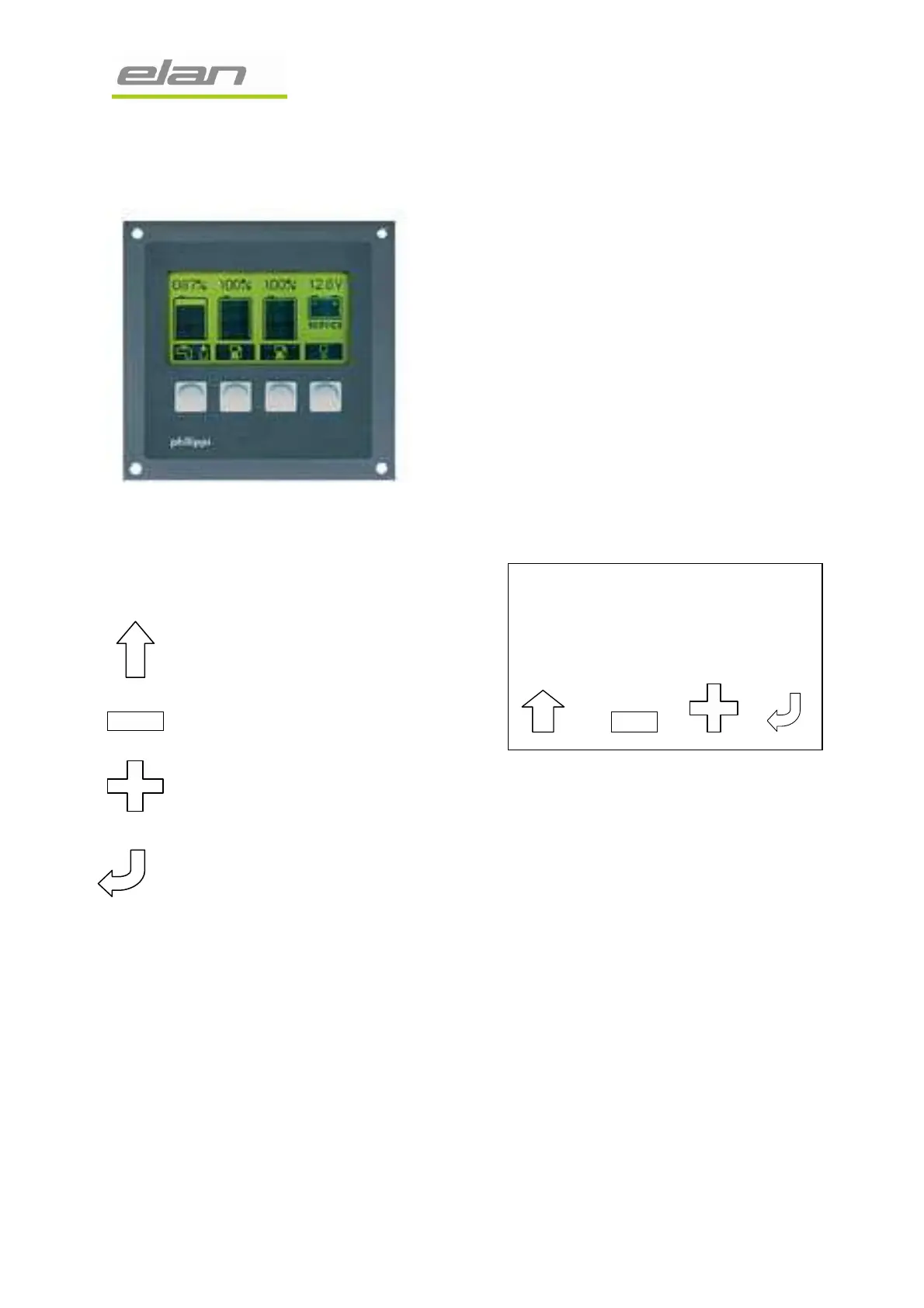

Display on control panel:
Technical data TCM
Connection voltage 8-30 V
Instrument dimensions 105 x 105 x 40 mm
Cut-pout to install instrument 90 x 90 mm
Type: TCM 1 TCM 2 TCM 4 TCM 4p
Number of tanks 3 3 1-4 1-4
Pouring sensor DFS 0 1 0 1
Tank sensors TGT/TGW/UTV 3 2 1-4 1-3
Measuring voltage 2 batteries 2 batteries no no
Consumption 2 mA 9 mA 2 mA 9 mA
PHILIPPI TCM 1/2/3/3p
General settings:
Key functions
Choice of row for entry
Negative change in value
Positive change in value
Saving data and return to state of tank
Possible number of displayed tanks: 1-4
Show: 0 = show state in liters (l)
1 = show state in percentage (%)
Language: Language setting is possible in menu
Contrast: Possibility to set monitor brightness
Tank settings:
In the settings, it is possible to define size in liters, type of tank and compensational value for
each individual tank (see table).
Sprache
Anzeige l/% 00
Anzahl tanks 04
