ELAN E4 – Owner's manual
36

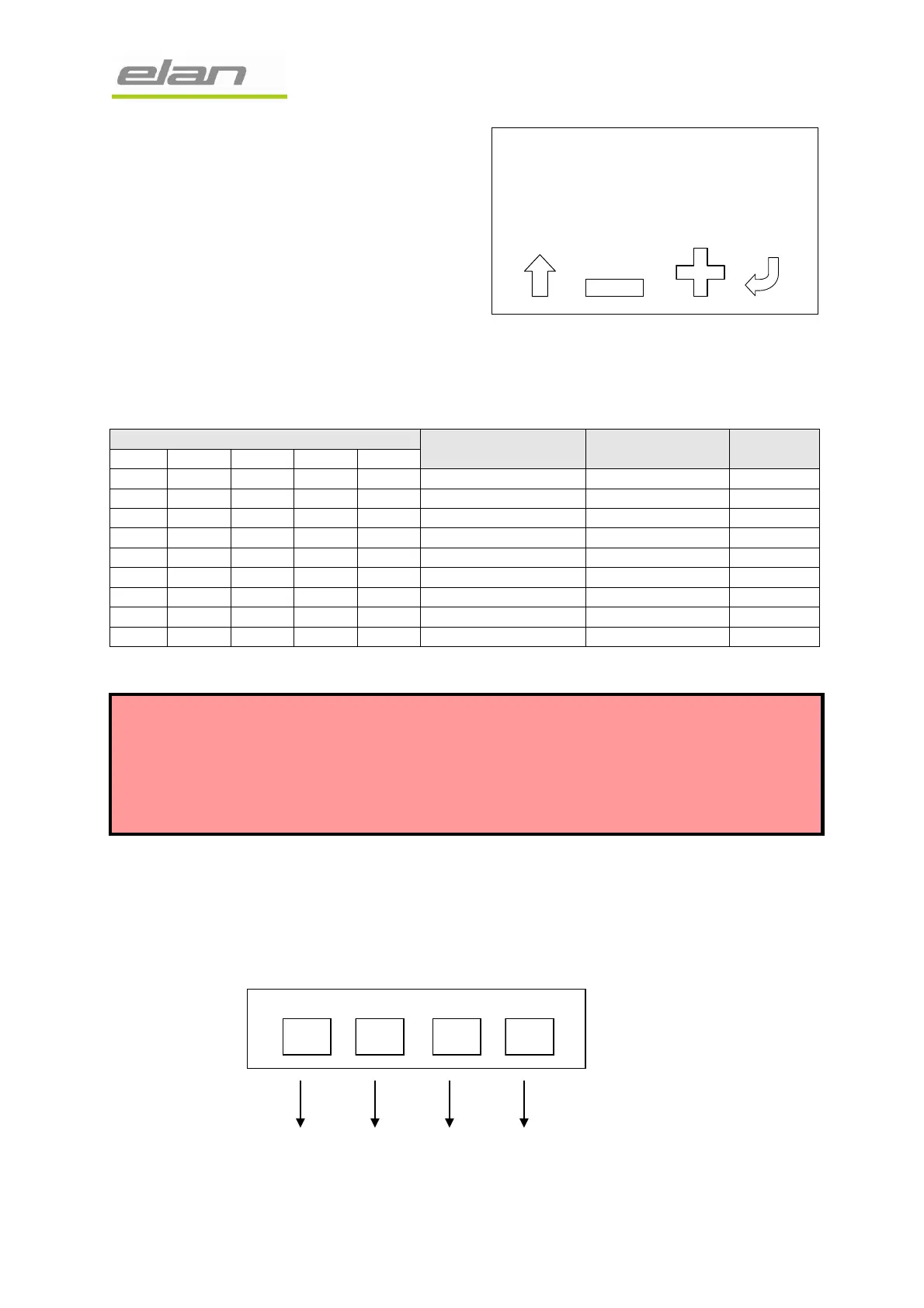

Key functions:
Arrow – choice of data for entry
Plus – positive change in value
Minus – negative change in value
Return – saves data and returns to show state of tank
Settings:
Tank size (1-4) tanks 1….4 4000l step is 5l
Tank type (1-4) for each tank there is a choice of five settings (see table)
Tank type
Measuring instrument Measuring range Comments
Water Fuel Fecal Waste Gas
0 1 2 3 4 Philippi TRG 6 stages
5 6 7 8 9 Philippi TGT / TGW 5 – 180 ohm Manual
10 11 12 13 14 4 – 20 mA
15 16 17 18 19 0 – 10 V
20 21 22 23 24 240 – 33 ohm
25 26 27 28 29 300 – 10 ohm
30 31 32 33 34 90 – 0 ohm
35 36 37 38 39 0 – 90 ohm Optional
40 41 42 43 44 Five inches mater 4 stages
WARNING: Change settings of the tank type only for defined equipment (for example
0-4, 5-9,…).
Some equipment requires manual changes, which can be carried out only
by the manufacturer of equipment.
If the equipment and settings do not correspond, than the measured data
could be wrong.
Operating the program:
• When any key is touched, the illumination of the monitor is turned on for 30s.
• Via connection B on the back, permanent illumination of monitor can be turned on.
Key 1 Key 2 Key3 Key4
Kompensation 51
Tanktype 00
Tankvolumen 110
