1. Fuel tank 90 l
2. Fuel inlet deck filler
3. Diesel tank inlet hose
4. Diesel air vent
5. Diesel tank air vent
6. Fuel line to engine
7. Fuel line engine
overflow
8. Diesel engine D1-30
9. Diesel fuel filter
7. SYSTEMS AND CIRCUITS
7.1. POSITION OF SEACOCKS AND THROUGH-HULL FITTINGS
CAUTION: Keep the seacocks closed when not in operation to avoid the possibility of
water penetration or leakage.
When sailing, the seacocks must be kept closed.
When sailing close the water tank connection valve.

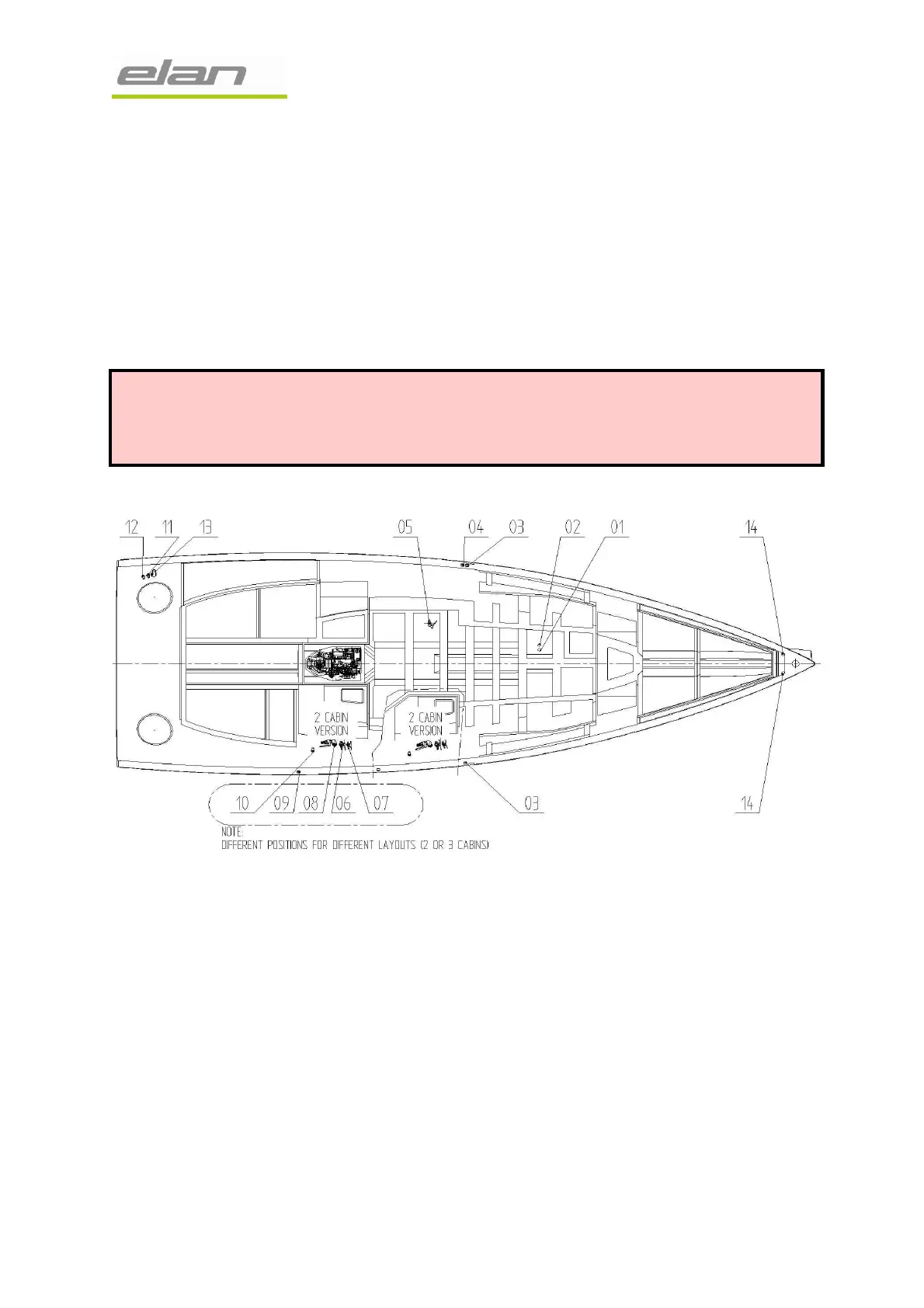

Figure 10
1. Depth sounder
2. Speedo meter
3. Through hull – water tank air vent
4. Through hull – diesel tank air vent
5. Seacock – galley sink waste water
outlet
6. Seacock – toilet sink waste water
outlet
7. Seacock – toilet sea water inlet
8. Seacock – toilet waste water outlet
9. Through hull – waste tank air vent
10. Through hull – shower bilge water
outlet
11. Through hull – electric bilge pump
outlet
12. Through hull – manual bilge pump
outlet
13. Through hull – engine exhaust
14. Through-hull – Chain storage outlet
