7.7. RUDDER AND STEERING SYSTEM
The boat is fitted with two connected rudders consisting of a long aluminum shafts passing
through the deck and hull and a GRP rudder blade. The shaft goes almost to the end of the
rudder blade. The rudder can be operated by twin wheel system.
WARNING: In case of a defect of the mechanism, first remove the draglink,
connecting two steering quadrant (see Fig.17 & 18).
Any contact of the rudder with the ground can cause the blade to break or
split or the shaft to bend. It requires immediate checking and consultation
with an expert.
Do not let go the steering wheel when you navigate backwards. Self-
turning of the rudder can damage the steering mechanism.
Recommended speed in reverse navigation should not exceed 2 knots.
CAUTION: It is recommended to disassemble the steering mechanism every two
years to lubricate it and thoroughly check the rudder blade.
Clean the bearings and when reassembling, lubricate them with a
lubricant resistant to sea water.

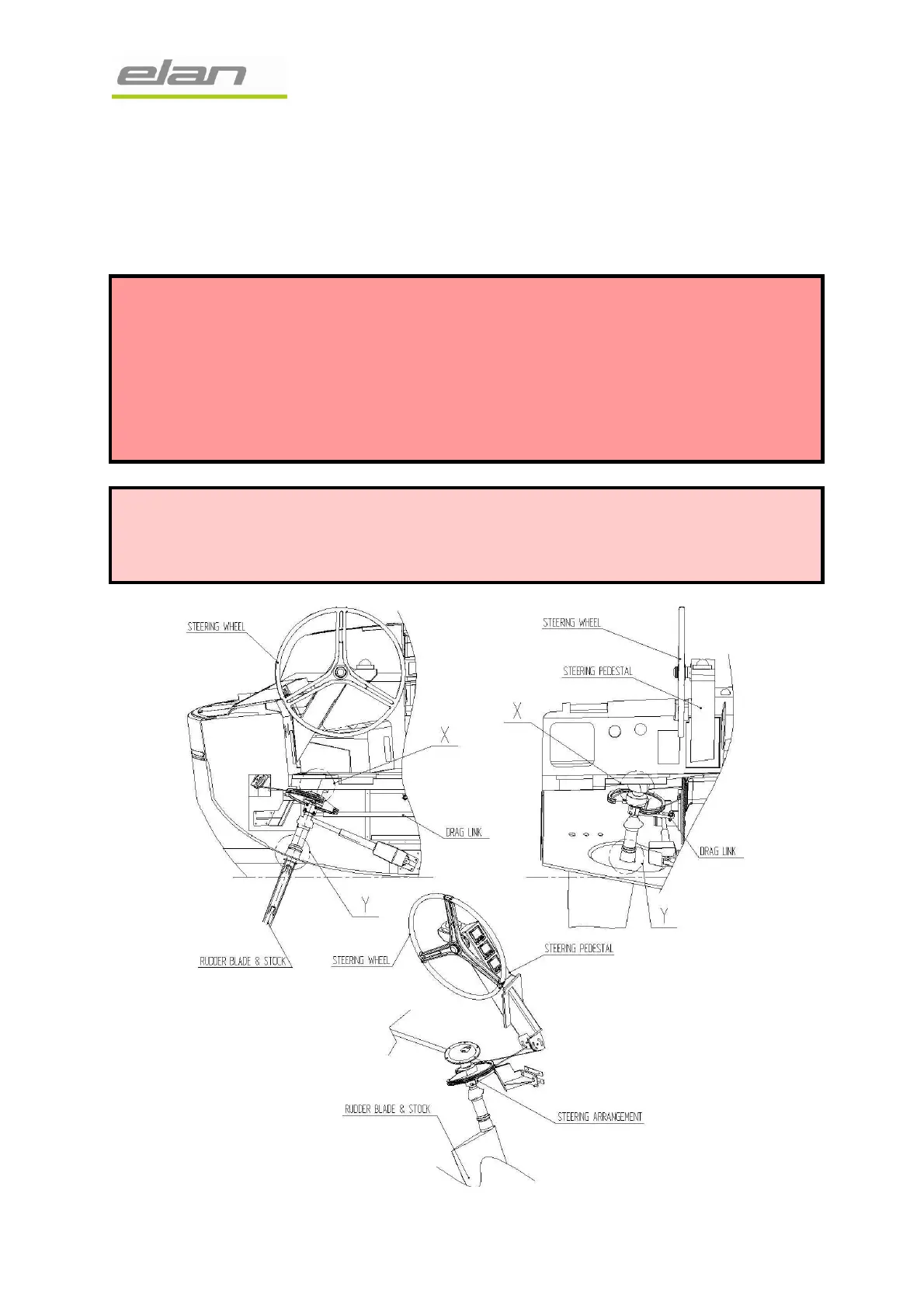

Figure 17
