Instrument connection:

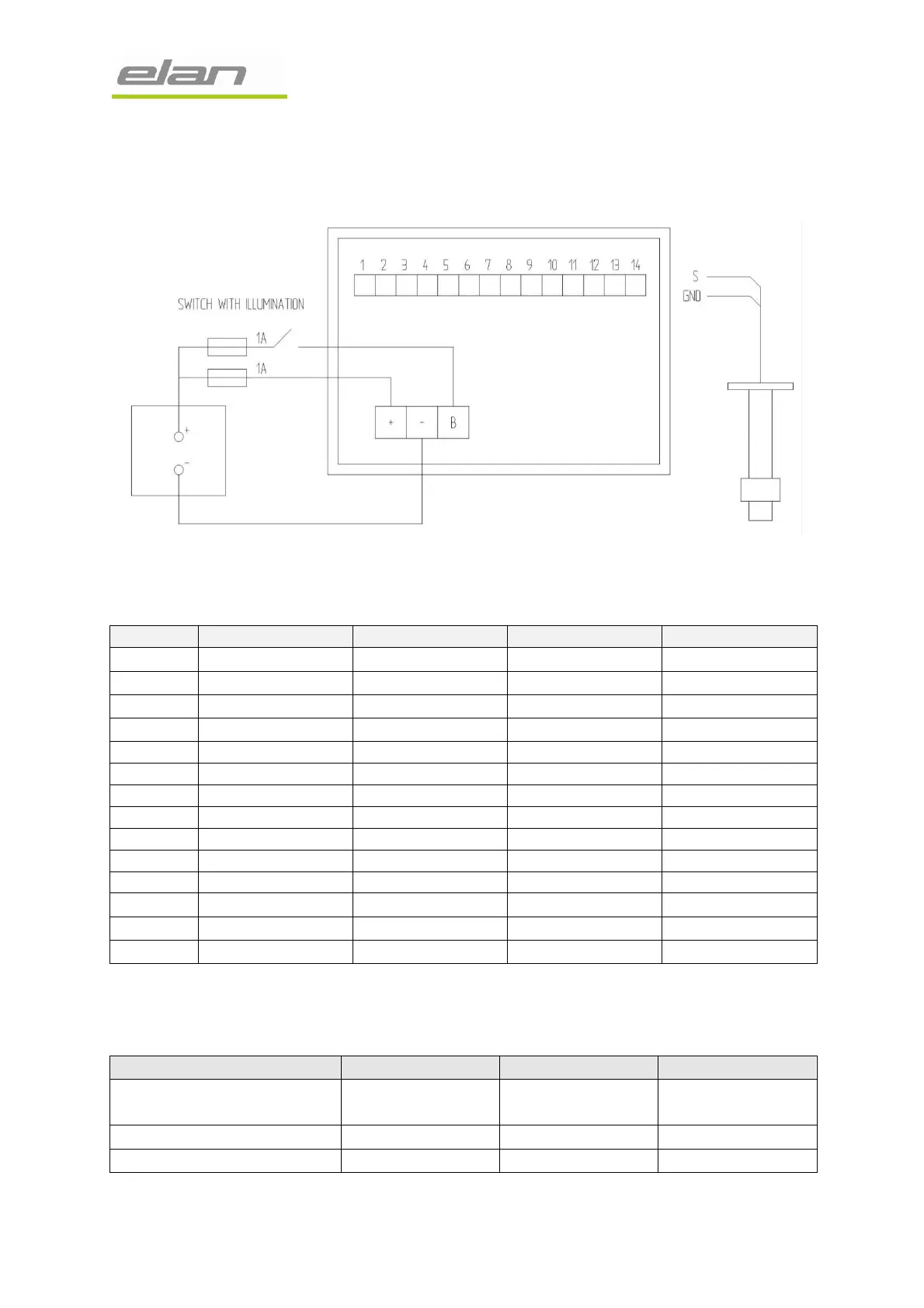

The monitor screen connection is shown in the scheme below, the thickness of the
conductor is 1,5 mm and it is connected directly to the battery.
View from the back:
Connection of sensors, measuring instruments in the table below:
CLIP
TCM 1
TCM 2
TCM 3
TCM 4
01
+ starter battery + starter battery
02
- -
03
+ service battery + service battery
04
- -
05
Tank 3 (S)
Tank 3 (S)
Tank 4 (S)
Tank
4 (S)
06
Tank 3 (GND)
Tank 3 (GND)
Tank 4 (GND)
Tank 4 (GND)
07
Tank 2 (S)
Tank 2 (S)
Tank 3 (S)
Tank 3 (S)
08
Tank 2 (GND)
Tank 2 (GND)
Tank 3 (GND)
Tank 3 (GND)
09
Tank 1 (S)
DFS signal
Tank 2 (S)
Tank 2 (S)
10
-
DFS +
-
-
11
Tank 1 (GND)
DFS
-
Tank 2 (GND)
Tank 2 (GND)
12
Tank 1 (S) DFS signal
13
- DFS +
14
Tank 1 (GND) DFS -
COMPENSATION VALUES FOR ELAN E4:
ELAN E4 Water tanks Fuel tank Waste water tank
Volume (liters) Port 90 litres &
STB 95 litres
90 litres 70 liters
Type 05 21 22
Compensation value 47 50 43
