ELAN E4 – Owner's manual
26

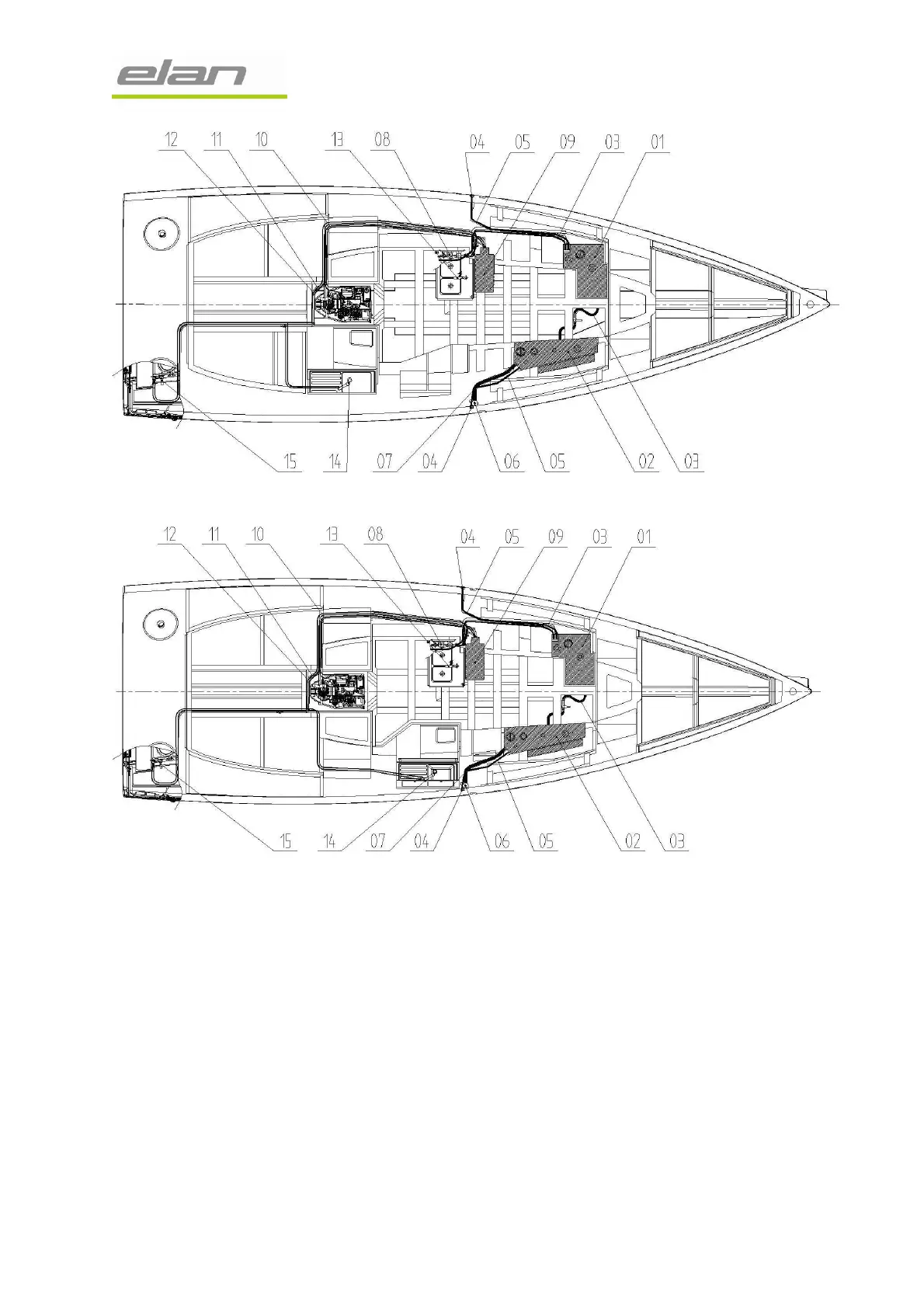

Figure 11-1
Figure 11-2
1. Fresh water tank – port ~ 105 l
2. Fresh water tank – stb ~ 95 l
3. Water tank connection
4. Air vent
5. Tank ventilation hose
6. Fresh water deck filler
7. Fresh water filler hose
8. Electric fresh water pump
9. Water heater
10. Engine to heater exchange
11. Cold water tube
12. Hot water tube
13. Galley mixer tap
14. Toilet mixer tap
15. Cockpit shower tap
