Elastec MediBurn30 - Chamber Parts List #1

MEDIBURN30 27 D-115 Rev 010
www.elastec.com

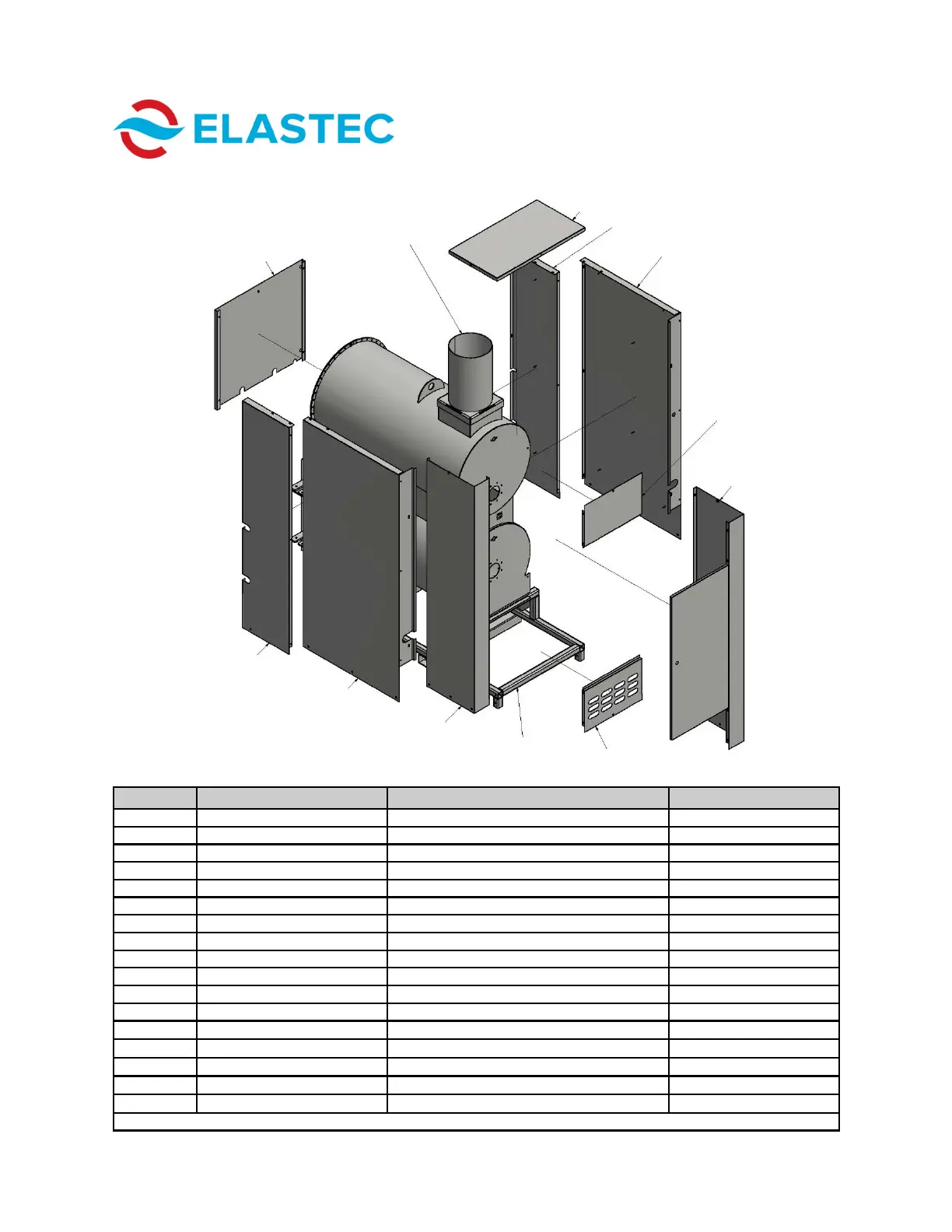

CHAMBER PARTS LIST #1
Item# Part # Description Quantity
1 4BURNCH055WC Burn Chamber 1
2 4COVEBU050AP Cover Burner Doghouse Lower w/vents 1
3 4COVEBU050BP Cover Burner Doghouse Roof 1
4 4COVEBU050DP Cover Burner Doghouse Upper 1
5 4COVEBU050WP Cover Burner Doghouse Door 1
6 4COVEBU051WP Cover Burner Right Doghouse 1
7 4SHIEHE126C Shield Heat L-Long w/lock rod 1
8 4SHIEHE127P Shield Heat L-Short w/lock rod 1
9 4SHIEHE128C Shield Heat R-Long 1
10 4SHIEHE129P Shield Heat R-Short 1
11 4SHIEHE133P Shield Heat w/logo 1
12 4STACME010P Stack MediBurn Removable 1
13* 4REFRBO020C Refractory Board, 1” x 16” x 24” 1
14* 4REFRBO011 Refractory Board, 1/2” x 15” x 32” 1
15* 4REFRBO030C Refractory Board 1
16* 4SHIEHE110P Shield Heat MB Door Bottom 1
17* 4COVEBU050CP Cover Burner MB Z Channel 2
* — Item not shown
