Elastec MediBurn30 - Burner Parts List

MEDIBURN30 32 D-115 Rev 010
www.elastec.com
Item# Part # Description
1 4BURNHE220 Burner Head F220 Upper Chamber
2 4NOZZBU250 Nozzle 2.50 GPH Upper Burner
3 0KIT-EL010 Kit Electrode 6” Tube MediBurn
4 4DETECA010 Detector, Cad Cell
5 4IGNIME012 Burner Igniter 220 Volt
6 4COUPFU012 Coupler Fuel Pump “Green and Gray”
7 4BURNHE160 Burner Head F160 Lower Chamber
8 4NOZZBU200 Nozzle 2.00 GPH Lower Burner
9 4FILTFU540 Filter Fuel
10 4VALVCH008C Fuel Check Valve
11 4HOSEFU809 Fuel Line, Burner to Burner
12 4PUMPFU030 Fuel Pump, 2 Stage, MB 30
13 4SOLEFU012 Solenoid, Fuel, MediBurn
14 Air Bleeder Screw For Information Only - Not a Replacement Part
15 4SOLEFU030 Solenoid, Fuel, Low Fire, MediBurn
1
2
3
4
6
11
9
10
14
7
8
5
13
12
7
8
12
13
14
15
↑

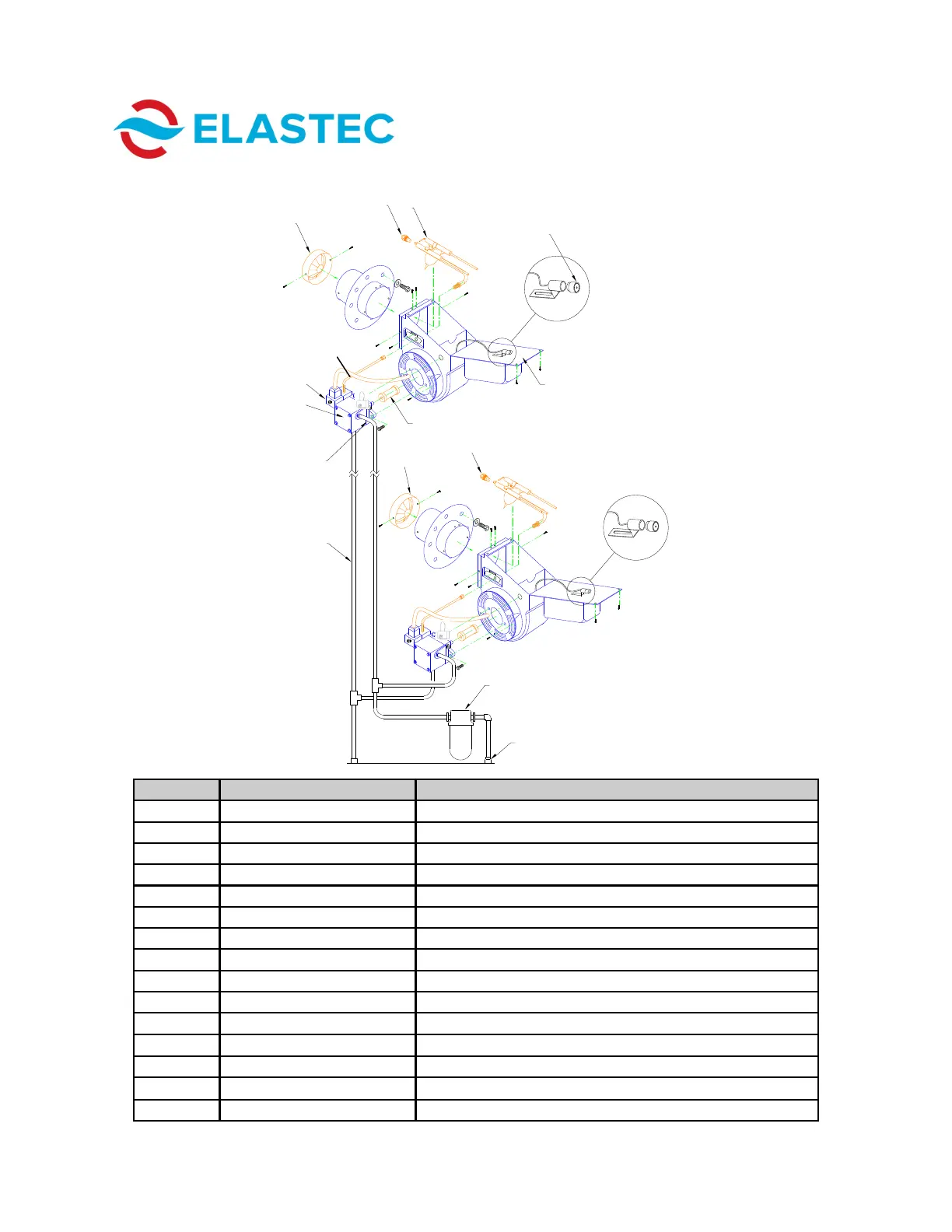

BURNER PARTS LIST
