ELASTEL TECHNOLOGY CO., LTD.
9. WiFi HaLow
9.1 Module Installation
EG500 IoT gateway support 802.11ah WiFi (also named WiFi HaLow) network powered by SX-NEWAH
module from SilexTechnology, the first industrial IEEE 802.11ah Wi-Fi module that operates in the Sub
1GHz band.
Visit SX-NEWAH to learn more benefit of WiFi HaLow technology in IoT.

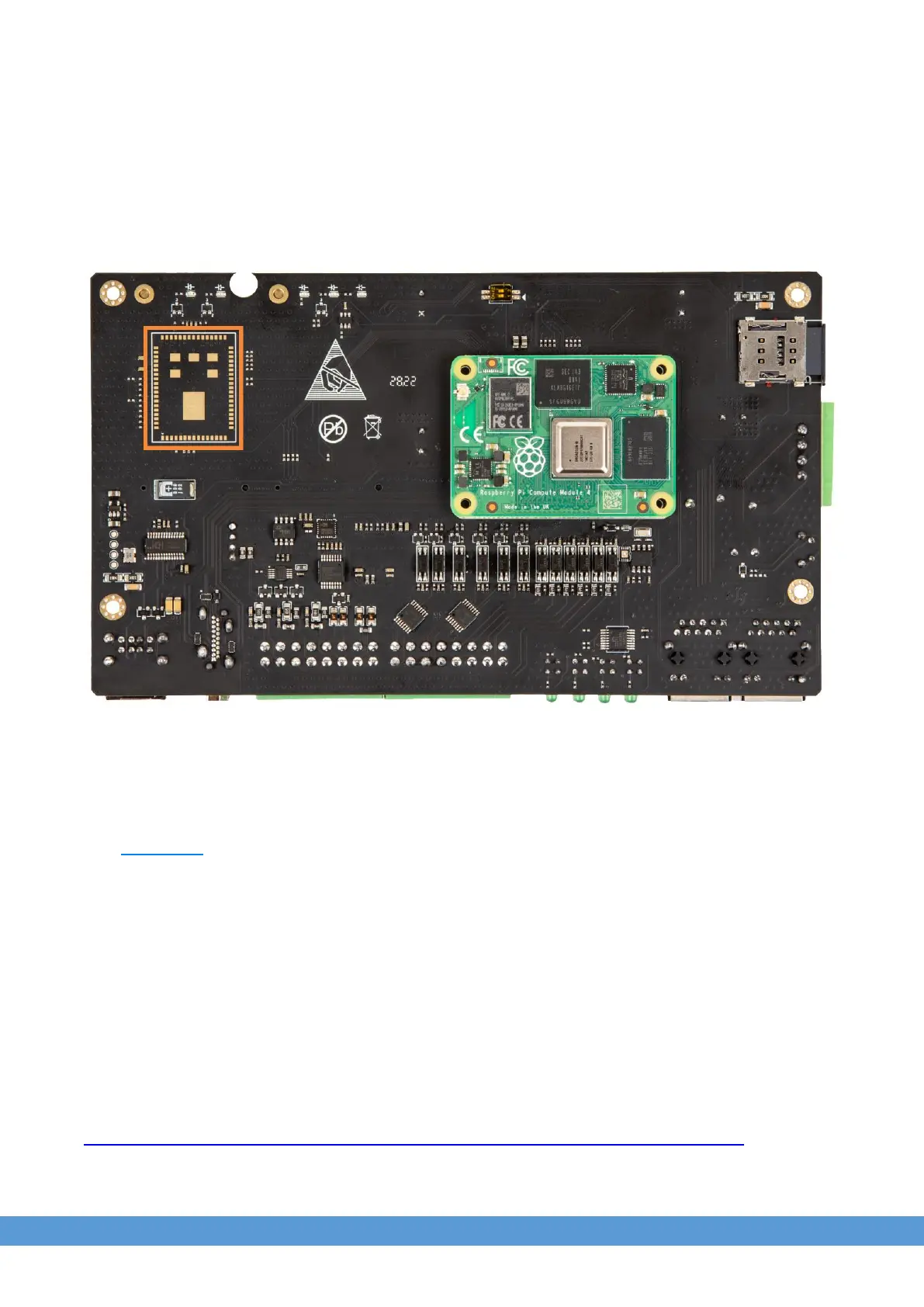

EG500 carrier board reserved the corresponding mount points for wearing SX-NEWAH module. Check
the above drawing orange area for module position. You are allowed to mount SX-NEWAH by yourself.
Attention! You may need special weld tool and skill to mount SX-NEWAH on EG500 by yourself.
Incorrect operation may destroy the carrier board and SX-NEWAH.
Purchase EG500 WiFi HaLow version from Elastel directly would be highly recommended.
https://www.elastel.com/product/industrial-cellular-router/eg500-wifi-halow-gateway/
