ELASTEL EG500 - Interfaces Definition & Installation

ELASTEL TECHNOLOGY CO., LTD.
WWW.ELASTEL.COM
4. VI & AI

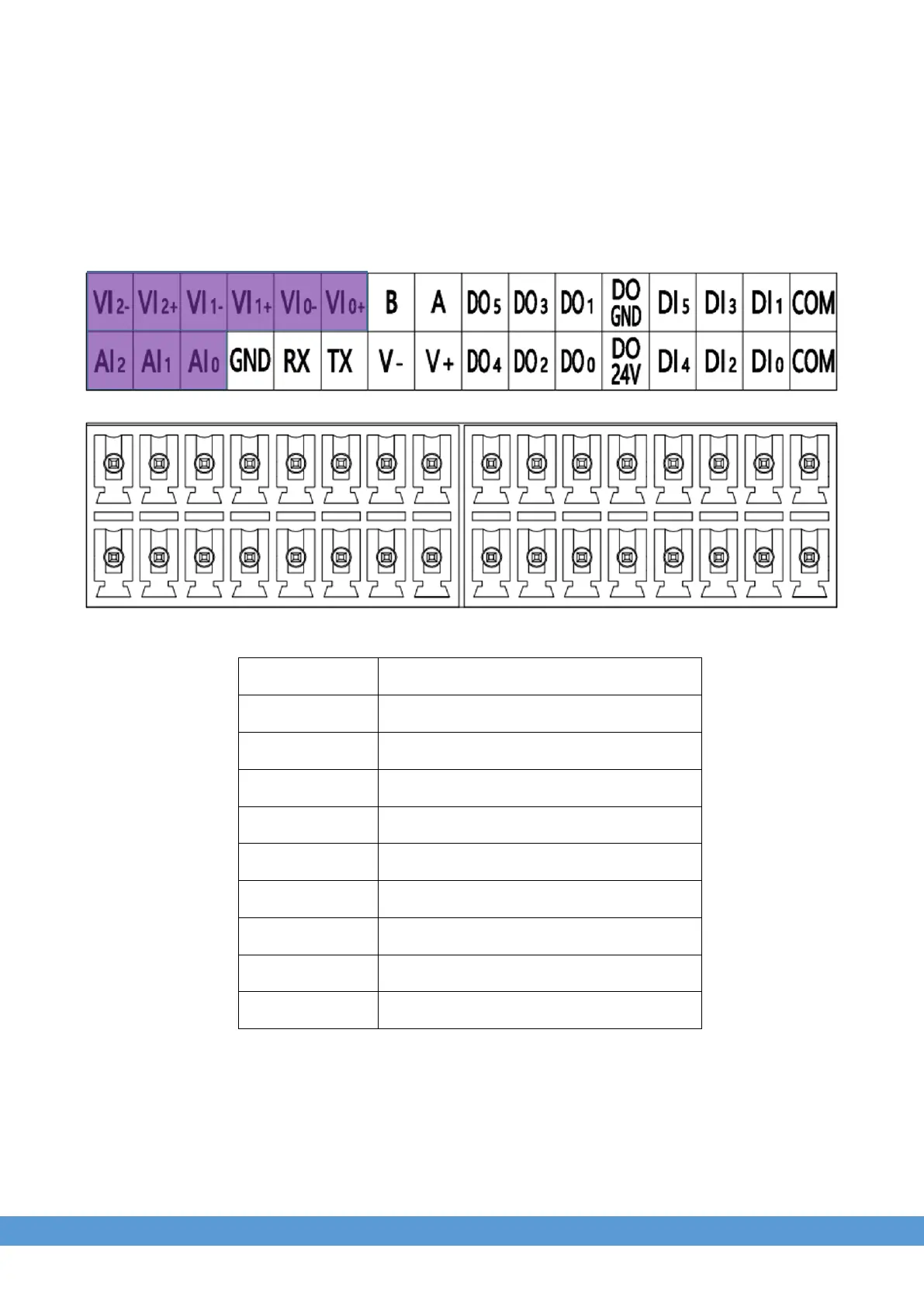

4.1 PIN Definition and Wiring
PIN
Description
VI0+
Voltage type analog input channel 0 +
VI0-
Voltage type analog input channel 0 -
VI1+
Voltage type analog input channel 1 +
VI1-
Voltage type analog input channel 1 -
VI2+
Voltage type analog input channel 2 +
VI2-
Voltage type analog input channel 2 -
AI0
Current type analog input channel 0
AI1
Current type analog input channel 1
AI2
Current type analog input channel 2
