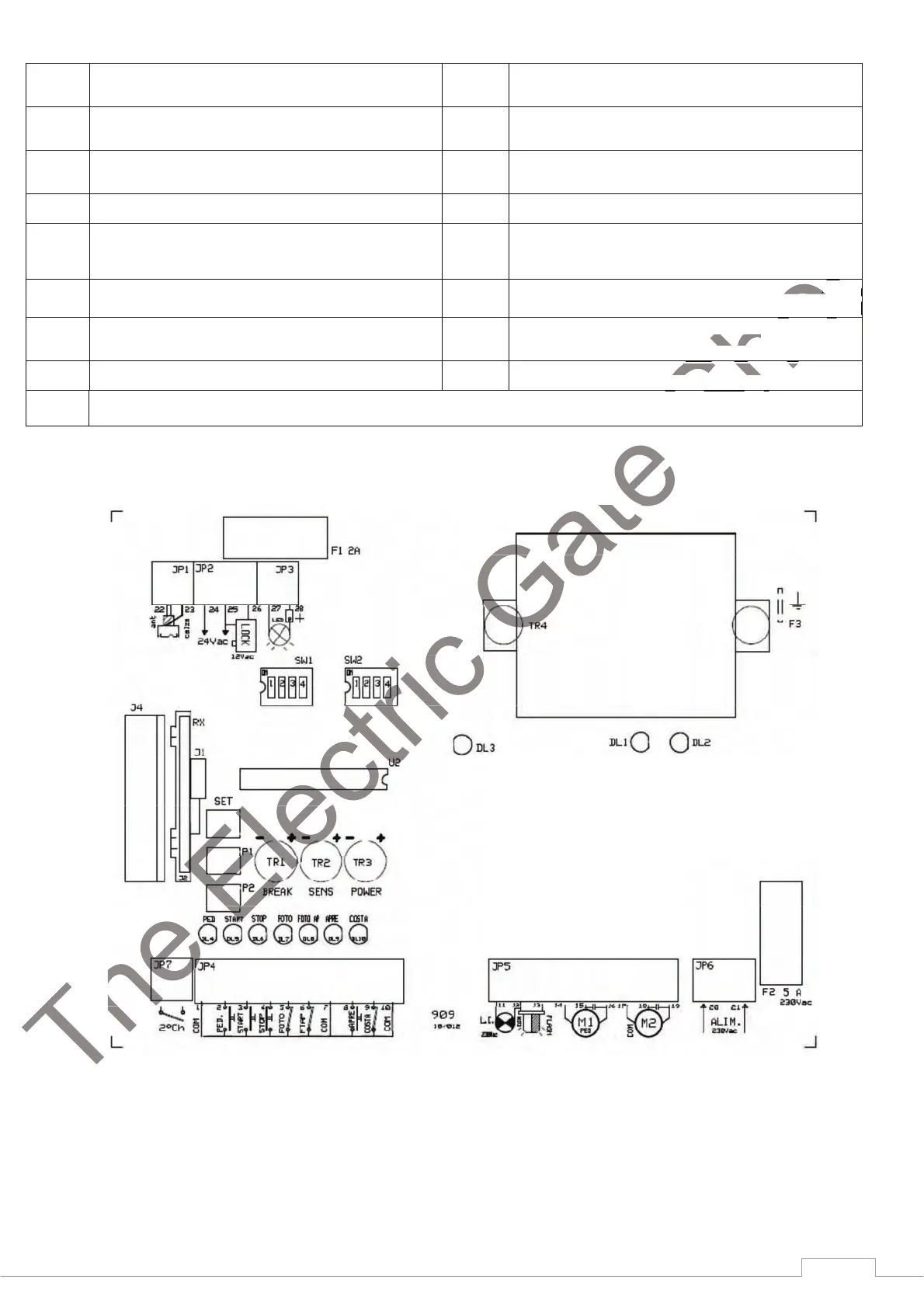

Terminal legend
1 - 2
PED.
(M1)
Pedestrian button input, N.O. contact. Open only M1 12 - 13
FLASH
Output steady warning light 230 Vac max 100 W.
1 - 3
START
In put Start (NO contact). While opening it works step by step
(operators stop), while closing reverses (stop and re-open).
14 - 15 -
16
M1 (PED.)
Output
for pedestrian leaf, (14 common, 15 opening,
16 closing). 500W Max
1 - 4
STOP
STOP button input. N.C. contact input
If terminal 4 circuit is broken, the gate/s will stop. If activated
during the break time, the automatic closing will be cancelled
17 - 18 -
19
M2
Output
delayed leaf in opening for gates with 2 swing
leaves (17 common, 18 opening, 19 closing). 500W
5 - 7
FOTO
Photocell input active only in closing. N.C. contact (stop and
reopen)
20 - 21
ALIMENT.
Input power supply 230 Vac
6 - 7
FOTO AP
Photocell for opening input, active during both opening and
closing N.C. contact. In opening stop and start up again, in
closing stop and reopen.
22 – 23
ANTENNA
In put antenna (22 coaxial, 23 shield).
8 - 10
FINE CH
Input limit switching opening NC contact). 24 -25
ALIMENT.
Output 24 Vac for powering the photocells (max 500 mA).
9 - 10
FINE AP
COSTA
Sensitive edge input N.C. contact. Active during both opening
and closing. WITH SW2 dip 2 on, this input can use 8K2
resistor or end of line resistors..
25 - 26
ELET.SER.
Output 12 Vac for the electrolock (max 15W).
11 - 12
L.C.
Output courtesy light (90 sec.). Max 100W 230 Vac 27 - 28
SPIA
Gate movement led indicator (27= Com 28= +24V ). Max 50
mA.
29 - 30 2° channel
