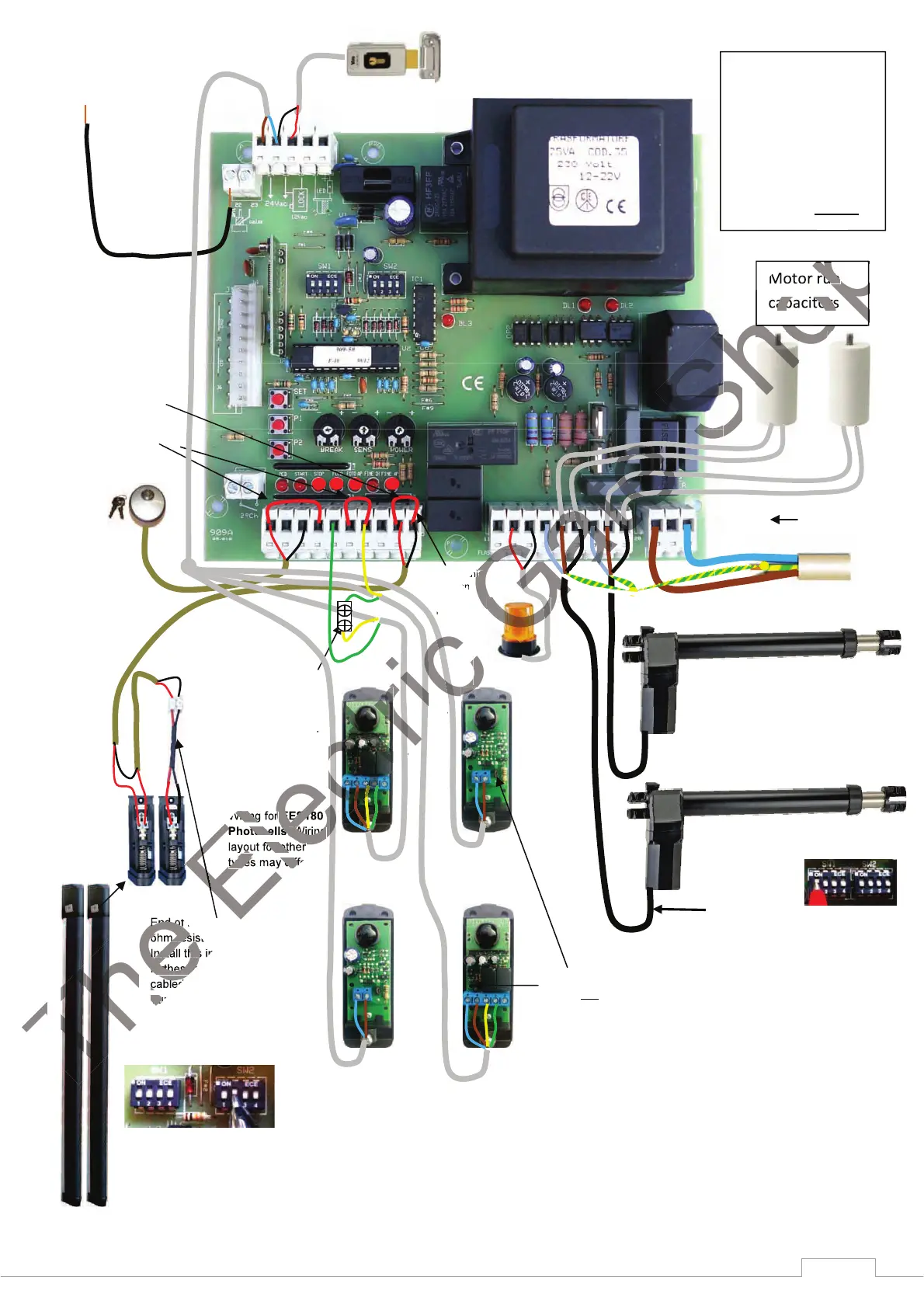

909 Typical wiring diagram



Wired gate release

items connection

point. Intercoms etc.

The connected device

needs to be voltage

Remove this

link when

using wired

in edges.

Wiring for

FES180

Photocells. Wiring

layout for other

types may differ.



With a single

gate motor use

M1. SW1-1

must be ON (UP)

for single motor.



^ĂĨĞƚǇ

ĚŐĞƐ



Viro lock

when

specified

The vertical jumpers

should not be installed as

the 909 photocell power

is 24VAC. Install all the

anti rotation screws here

once the photocells are

aligned correctly.

With two sets of

photocells link

together these

two wires here.

These 3 circuits

marked (red)

need linking if the

circuits are not

being used.

End of line 8K2

ohm resistor.

Install this in the

furthest away

cabled edge.

Turn this dip

switch ON in the

control panel for

8K2.



Cable Information

Main Supply 230Vac @

6.0Amp(minimum)

Photocells, Safety Edges

and Viro Lock -BT cable,

CW1128 recommended.

Motors 4 Core 1.5mm2

Main Power Supply

Input 230VAC





DŽƚŽƌƌƵŶ

ĐĂƉĂĐŝƚŽƌƐ

Photocells are usually installed at 50cm high just beyond the swing of the gate, one pair just in front of the

gates when closed and the other just beyond the end of the leaf when open. This will stop the gates closing if

there is something in the way. Two sets are highly recommended especially when using automatic closing.

They are crossed as laid out here so that the beam from one set does not interfere with the other.



Aerial Wire

Beacon

230VAC

The

End of line 8K2

ohm resistor.

Install this in the

furthest away

cabled edge.

Turn this dip

Electric

Wiring for

FES180

Photocells

. Wiring

layout for other

types may differ.

Electric

Gate

Remove this

Gate

Shop

DŽƚŽƌƌƵŶ

ĐĂƉĂĐŝƚŽƌƐ
