Flue gas system
Dimensioning
Dimensioning

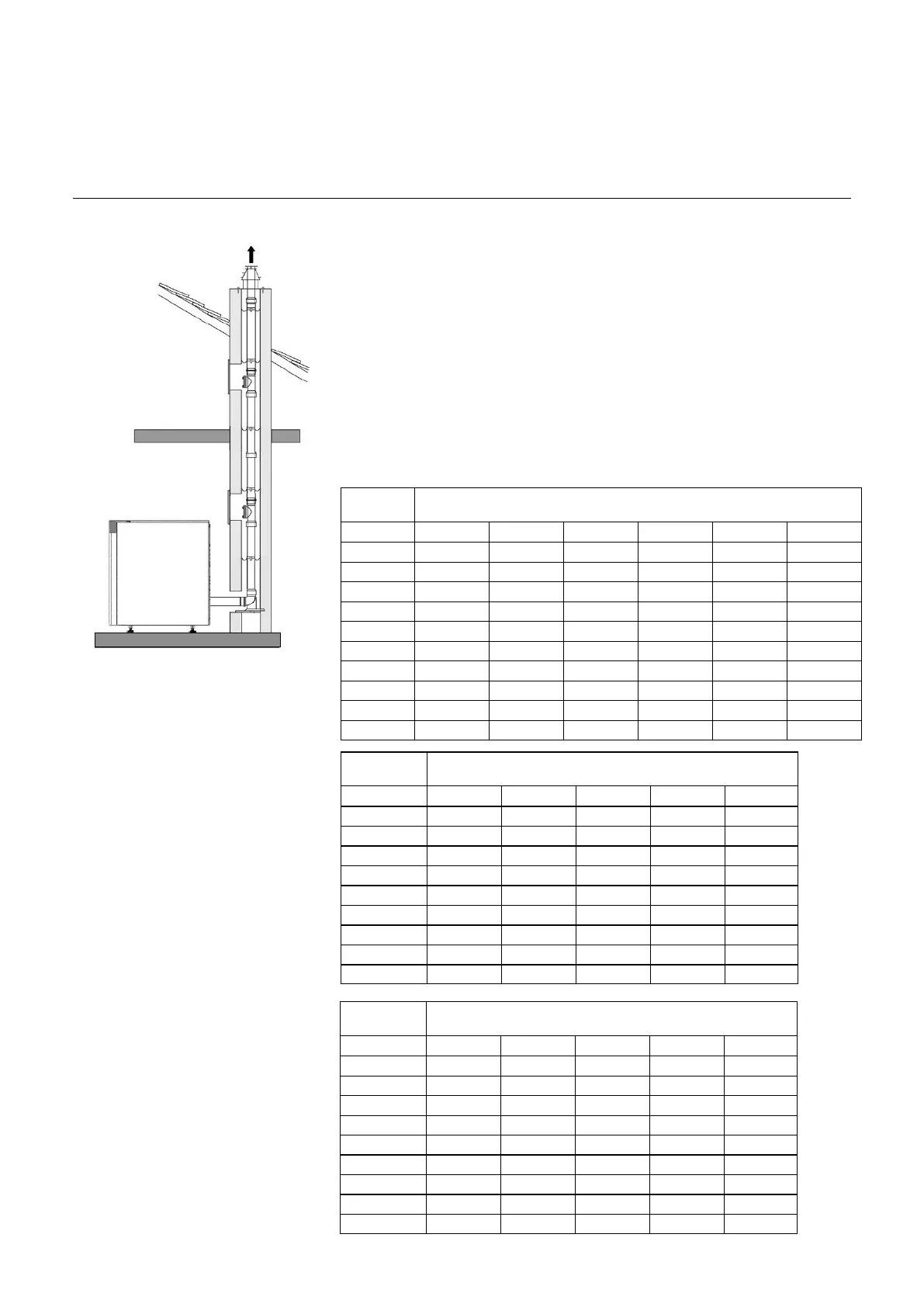

When dimensioning a flue gas system, it’s necessary to perform a calculation
check of the flue gas system in order to verify if the choosen system is applicable.
The following tables represent as an example of possible flue gas systems of TRI-
GON XXL SE, EVO and ECO series, including the maximum possible height of
the system. These examples only give an indication of the possible heights, but
they can not be used for official flue gas layout calculation. Each flue gas system
must be calculated by an authorized company.
The maximum negative flue gas pressure, which doesn’t affect the burner modula-
tion ratio, is 30 Pa. Higher negative pressure will lead to limitation of the burner
modulation ratio.
The maximum horizontal flue gas way is 20m. With horizontal ways longer than
20m, a faultless burner start in cold condition can not be guaranteed.
Maximum permissible height* (h) of
flue gas system in [m]
Type Ø250mm Ø300mm Ø350mm Ø400mm Ø450mm Ø500mm
SE 650
23 50 50
SE 750
47 50 50
SE 850
34 50 50
SE 1000
50 50 50
SE 1100
40 50 50
SE 1200
33 50 50
SE 1300
46 50 50
SE 1500
36 50 50
SE 1700
45 50
SE 1900
36 50
Calculation base:
Total connection length in
boiler room ≤ 1.5 m;
1x 87°-bend
* Based on straight pipe, open
outlet
Maximum permissible height* (h) of
flue gas system in [m]
Type Ø250mm Ø300mm Ø350mm Ø400mm Ø450mm
EVO 700
38 50 50
EVO 800
50 50 50
EVO 900
50 50 50
EVO 1000
50 50 50
EVO 1100
50 50 50
EVO 1200
50 50 50
EVO 1400
49 50 50
EVO 1550
39 50 50
EVO 1700
17 31 50 50
Maximum permissible height* (h) of
flue gas system in [m]
Type Ø250mm Ø300mm Ø350mm Ø400mm Ø450mm
ECO 650
29 50 50
ECO 750
50 50 50
ECO 850
43 50 50
ECO 950
50 50 50
ECO 1050
50 50 50
ECO 1150
50 50 50
ECO 1300
38 50 50
ECO 1450
30 50 50
ECO 1600
24 41 50
25
