elco TRIGON XXL Series Planner Documentation

Neutralisation
General

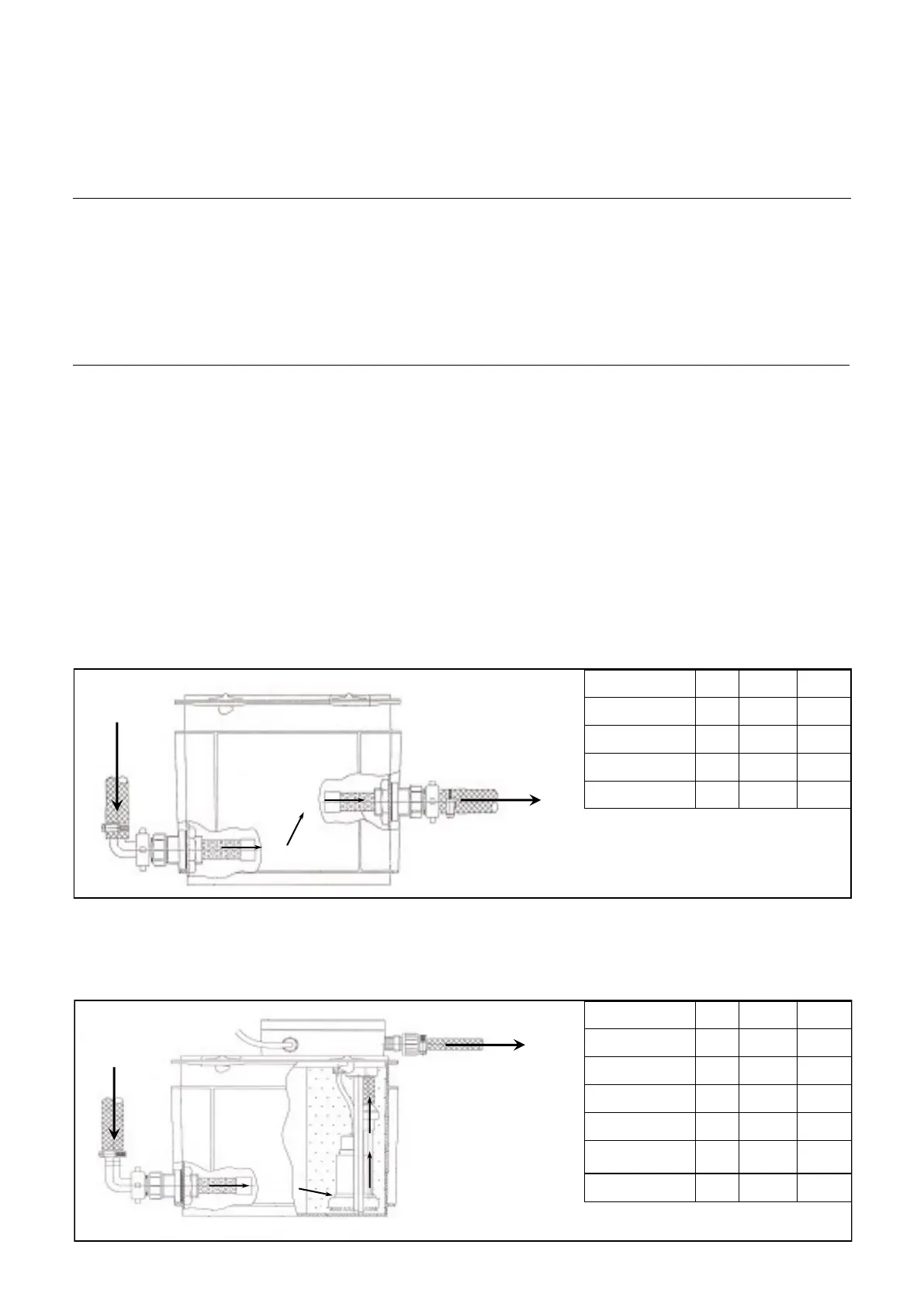

Neutralisation systems
Standard neutralisation system (DN)
Neutralisation system with pump (HN)
General
Condensate, created by the TRIGON
XXL, should be drained into the public
draining system. The condensate PH is
between 3.0 and 3.5. National and/or
local regulations have to be checked, in
order to find out whether the condensa-
te should be neutralised before entering
the public draining system.
Type DN2 DN3
Applicable for [kW] 450 1500
Length [mm] 420 640
Width [mm] 300 400
Height [mm] 240 240
Type HN 1.5 HN 2.5
Applicable for [kW] 280 540
Length [mm] 410 640
Width [mm] 300 400
Height [mm] 290 240
Power con-
sumption pump
[W] 40 150
Pump head [m] 6 3
Neutralisation systems
The neutralisation systems can be
placed in the bottom section of the boi-
ler. The delivery of the system contains
the following components:
 Granulate for first filling
 Connection hoses for inlet and outlet
connection
 Boiler connection adapter
For the neutralisation two different sys-
tems are available:
Standard neutralisation system (DN)
The standard neutrlisation system is used, when the public draining connection is
at lower level than the boiler syphon connection.
Neutralisation system with pump (HN)
The neutralisation system with pump is used, when the public draining system is at higher level than the boiler syphon
connection and the condensate needs to be transported to a higher level before draining is possible. The built-in pump of the
neutralisation system takes care of the transport of the condensate.
The maximum amount of condensate
for each boiler type can be found in the
chapter „Technical data“.
26
