elco TRIGON XXL Series Planner Documentation

Technical description

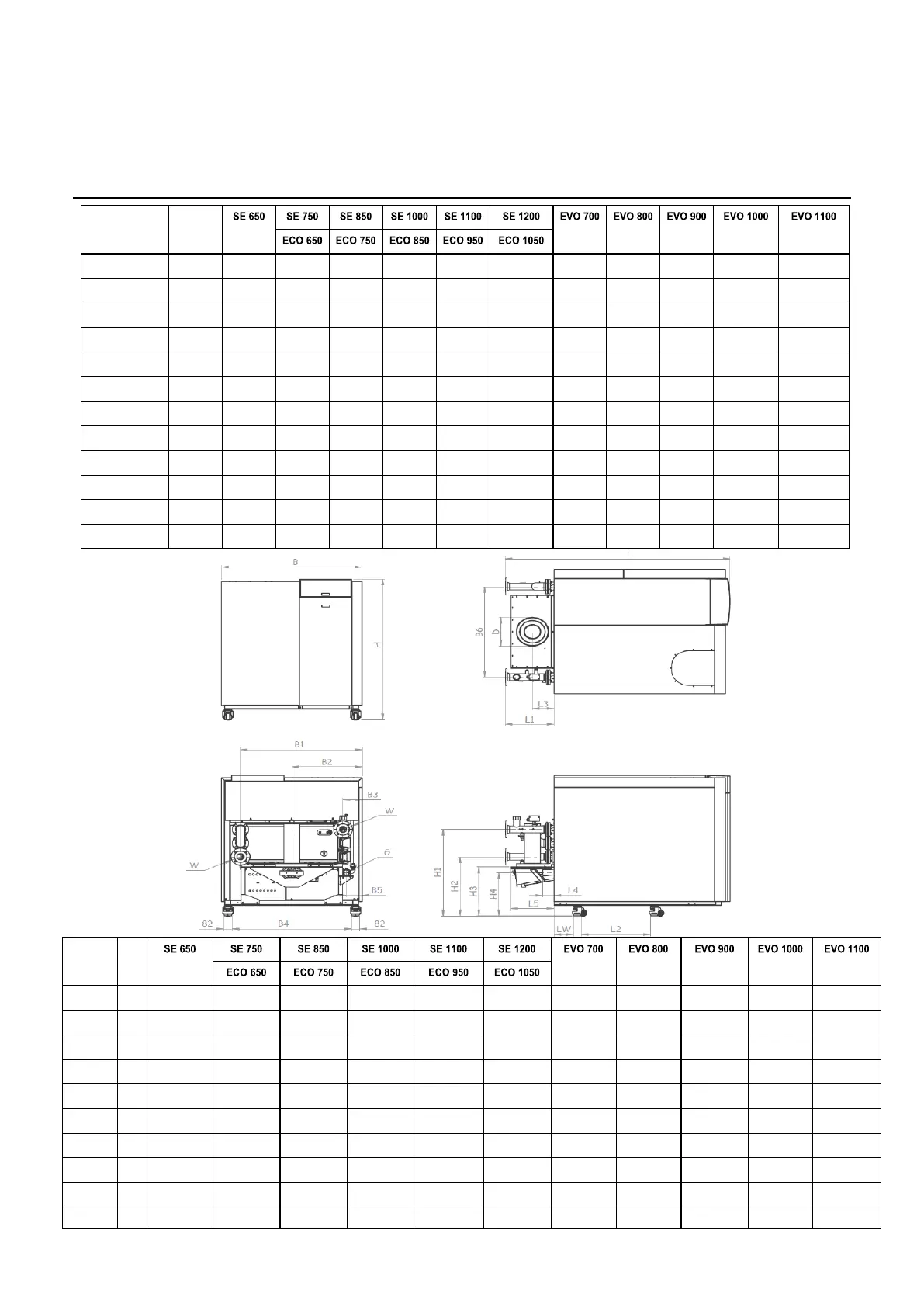

Dimensions
TRIGON XXL SE/ECO/EVO
Dimensions
L mm 2185 2185 2565 2565 2565 2565 2185 2565 2565 2565 2565
L1 mm 475 475 480 480 480 480 475 480 480 480 480
L2 mm 660 660 1030 1030 1030 1030 660 1030 1030 1030 1030
L3 mm 210 260 260 260 260 260 260 260 260 260 260
L4 mm 110 110 110 110 110 110 110 110 110 100 100
L5 mm 420 550 550 550 550 550 550 550 550 550 550
LW mm 185 185 185 185 185 185 185 185 185 185 185
H mm 1555 1555 1555 1555 1555 1555 1555 1555 1555 1555 1555
H1 mm 960 960 960 960 960 960 1110 1110 1110 1110 1110
H2 mm 660 660 660 660 660 660 660 660 660 660 660
H3 mm 540 530 530 530 530 530 530 530 530 530 530
H4 mm 480 480 500 500 500 500 460 460 480 480 480
Dimen-
sions
B mm 1370 1370 1170 1170 1370 1370 1370 1170 1170 1370 1370
B1 mm 1185 1235 1025 1075 1225 1275 1235 1025 1075 1225 1275
B2 mm 685 685 585 585 685 685 685 585 585 685 685
B3 mm 185 135 145 95 145 95 135 145 95 145 95
B4 mm 1160 1160 960 960 1160 1160 1160 960 960 1160 1160
B5 mm 150 100 150 100 150 100 100 150 100 150 100
B6 mm 1000 1100 880 980 1080 1180 1100 880 980 1080 1180
D mm 300 350 350 400 400 400 300 350 350 400 400
W DN DN65PN16 DN65PN16 DN80PN16 DN80PN16 DN80PN16 DN80PN16 DN65PN16 DN80PN16 DN80PN16 DN80PN16 DN80PN16
G DN DN50 DN50 DN50 DN50 DN65PN16 DN65PN16 DN50 DN50 DN50 DN65PN16 DN65PN16
12
