03/2013 - Art. Nr. 4200 1032 7200A12

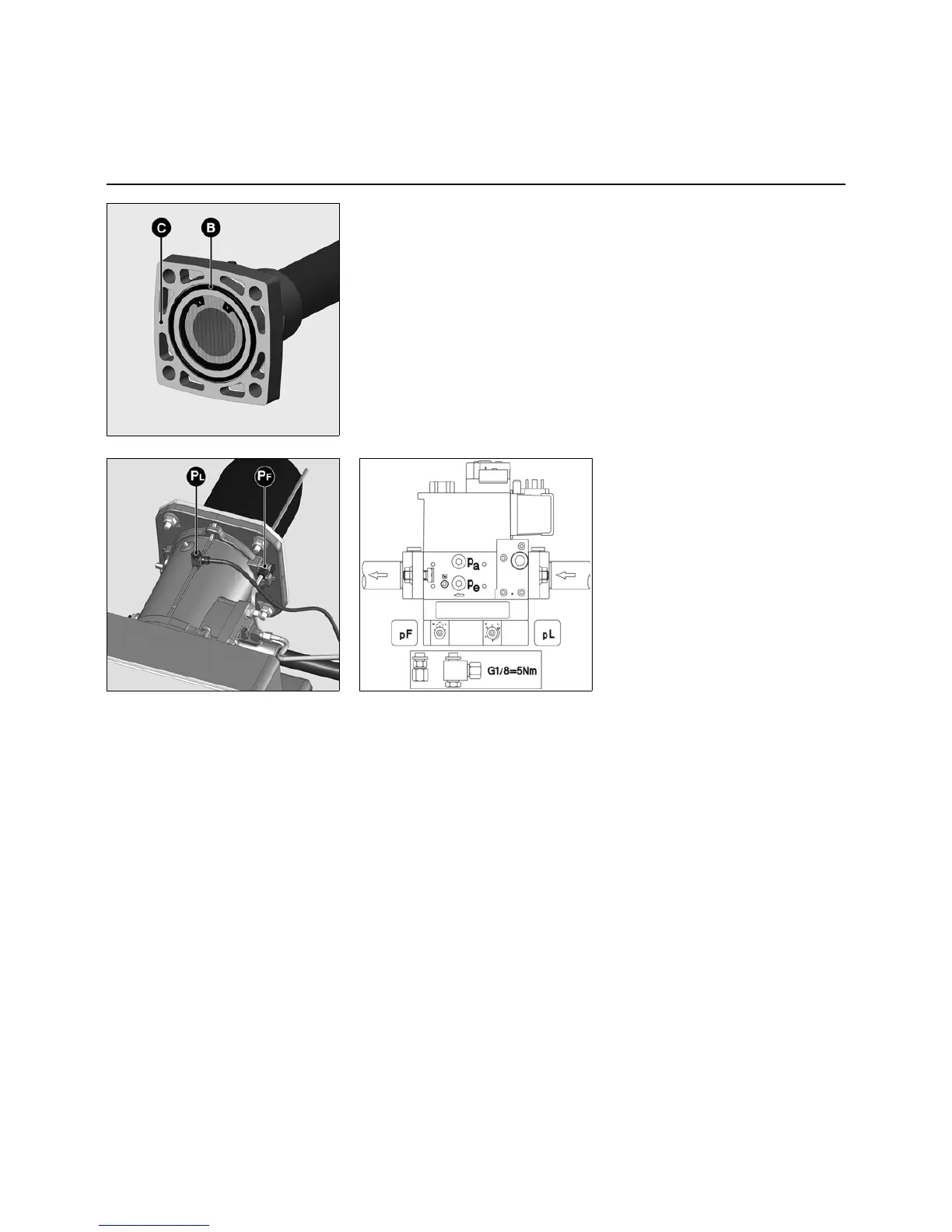

Gas train assembly
• Check the correct position of the
O-ring B in the gas connecting flange
C.
• Secure the gas train on the burner
head so that the gas train coils are in
the upper vertical position.
• Pay attention to the direction of
circulation.
• Connect the power cable to the gas
train.
Assembly
Gas manifold
Pressure take-off pipes
Connecting pressure take-off pipes
pF and pL
• Connect the furnace pressure take-off
pL on the burner body and the union
pL on the gas train using the flexible
tube pL (blue), shorten the tube
depending on the assembly scenario.
• Connect the furnace pressure take-off
pF on the burner body and the union
pF on the gas train using the flexible
tube pF (grey), shorten the tube
depending on the assembly scenario.
• Manually screw in the unions (max.
5 Nm) and check tightness.
