• menu for setting the
servomotor,
• menu for storing the
servomotor setting
points in the display
• menu for consulting
faults
• menu for statistical data
Fonctionnement
Coffret de sécurité TCG 5xx
In parallel with its control and safety
functions, the TCG5xx control unit
allows the following to be set:
(see illustration)
- the position of the air flap during
ignition
- the position of the air flap at minimum
pressure
- the position of the air flap at maximum
pressure
The parameters for the control unit are
set using the display and 5 keys.
Operating values are shown in real time
on the display.

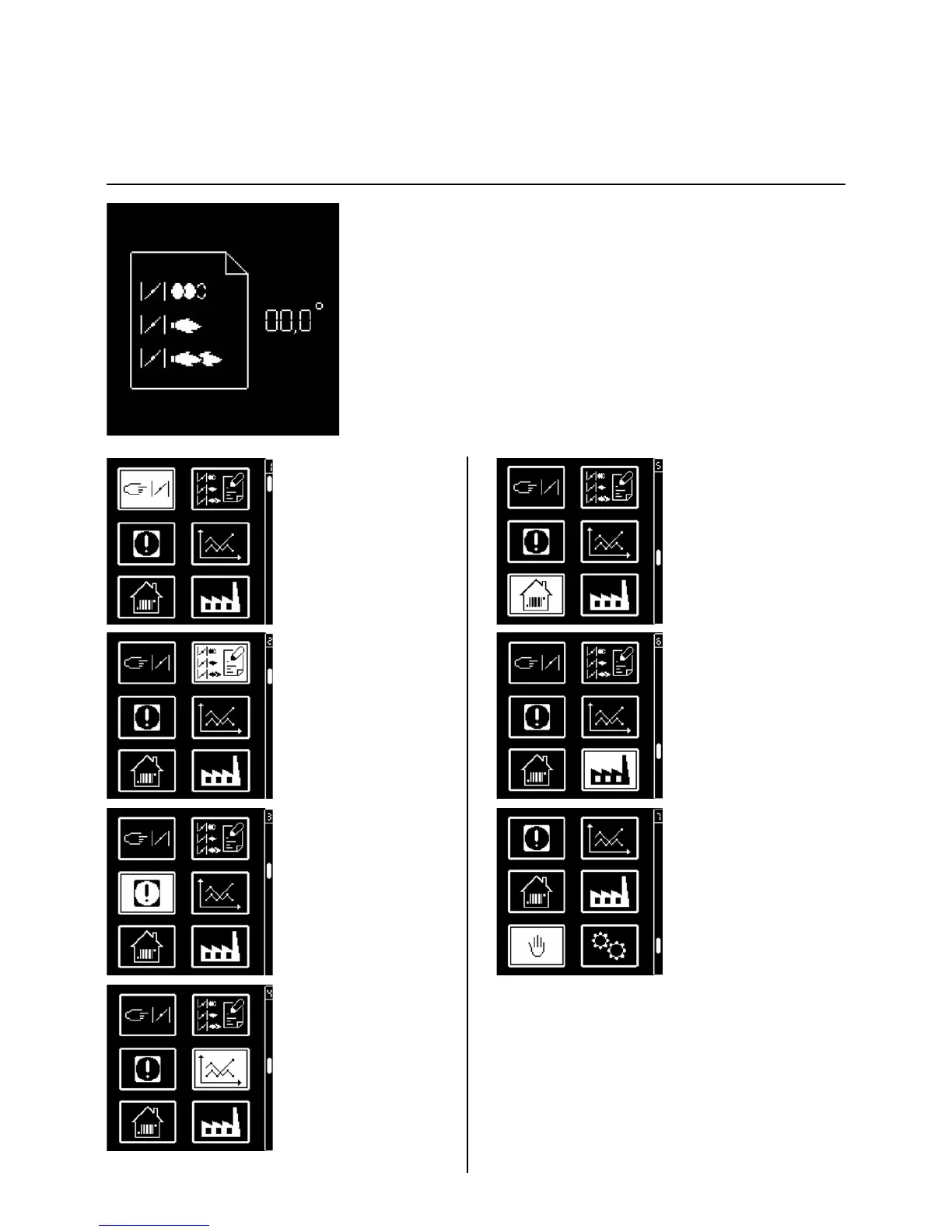

Pressing the keys gives access to 7
menus:
(
The menu on the bottom right is not
activated in VG4.460 DP
and VG4.610
DP burners
)
• menu for setting/
adjusting the standard
configurations*
• menu for setting
industrial applications*
• menu for manual control*
* In these menus, it is
possible to adjust the
control unit's standard
configurations. These
are pre-set in the
factory. No
modifications may be
carried out on-site
without prior
consultation with ELCO.
The access code and
the setting setpoints for
these menus are
available on request.
