Selected Statistics (Fig. 2); As
defined by the user via Display/
Statistics/Select Statistics. The user
can choose to view only those selected
or view all. Select from:
Number of Readings, Mean, Lowest
Reading, Highest Reading, Range, Standard
Deviation, Coefficient of Variation.
Run Chart (Fig. 3); A line trend graph
of the last 20 measurements which is
updated automatically after each
reading.
4.5 SELECTING THE MEASUREMENT UNITS
The Elcometer 510 Model S can display pull test results in MPa, psi,
2
Newtons or N/mm . To select the measurement units, press
Menu/Setup/Units.
4.6 SELECTING THE DOLLY SIZE & PULL RATE
Prior to performing an adhesion test, the appropriate dolly size and
pull rate must be selected. The Elcometer 510 can be used with
10mm, 14.2mm, 20mm and 50mm dollies. As the pull rate is
determined by the dolly size, the dolly size must be selected first -
refer to the ‘ table on page en-8.Pre-defined Pull Rates
To set the dolly size and pull rate:
1 Press Menu/Dolly Size & Pull Rate.
2 Use the softkeys to highlight the required dolly size and
press ‘Select’. The ‘Pull Rate’ screen will now appear.
3 Use the softkeys to set the pull rate as required and press
‘Ok’ to set.
4 GETTING STARTED (continued)

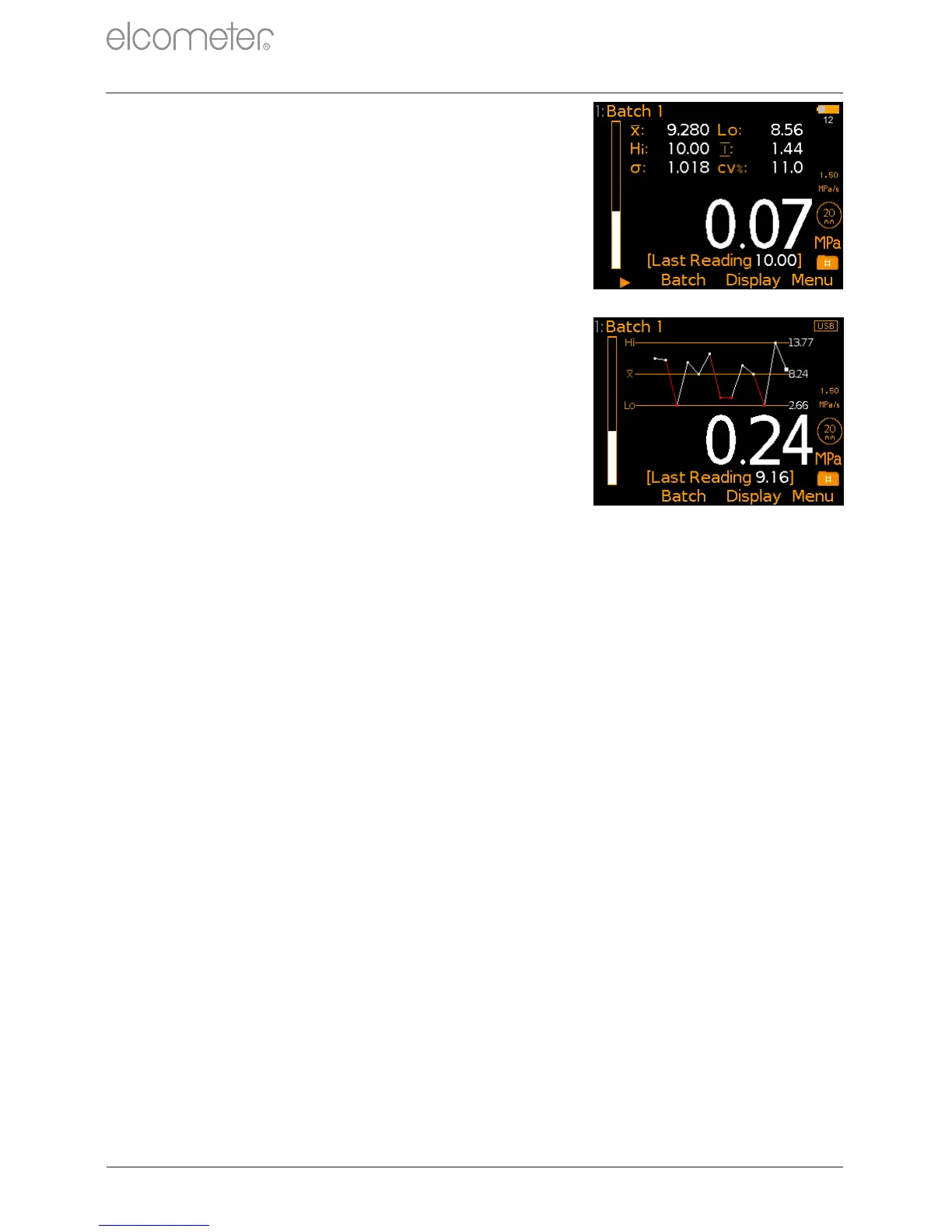

Fig. 2: Selected Statistics
Fig. 3: Run Chart
www.elcometer.com
en-7
