Elcontrol Microvip 3 plus - Measuring Three Phase Power (Delta System)

10

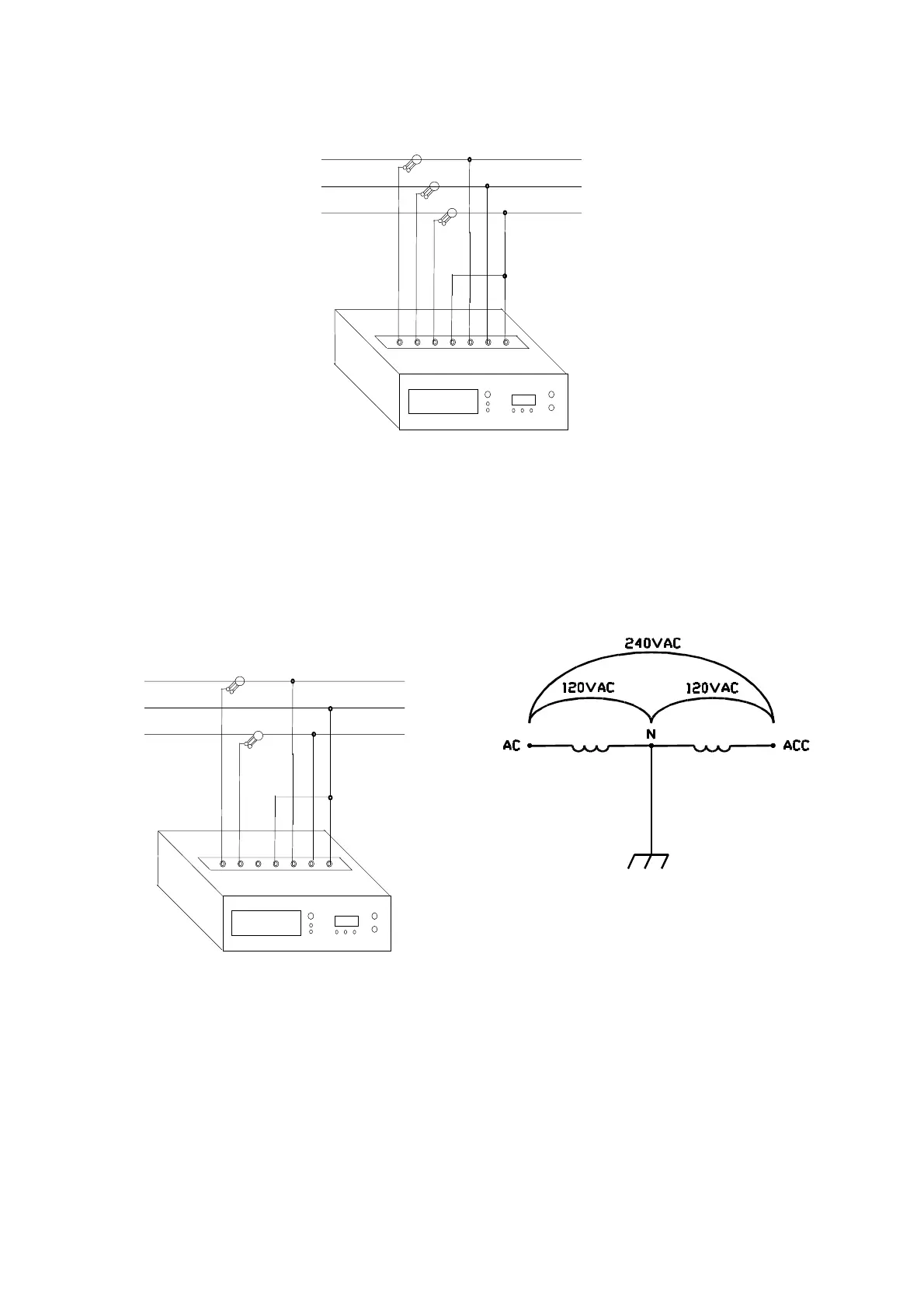

4.1.2 MEASURING THREE-PHASE POWER (DELTA SYSTEM)
(T) L3
(S) L2
(R) L1
Fig. 4.3.2
Connect L1, L2, L3; then connect the neutral voltage input to L3.
Note: Select Delta in Set-up Pages Menu
4.1.3 MEASURING TWO PHASE POWER
ACC
N
AC
Fig. 4.3.3
Connect L1 and L2; then connect the neutral Voltage input to L3.
Note : Select 2 PH in Set-up Pages Menu.
