6 RS232 PORT
The rear panel the MICROVIP3 PLUS is fitted with a mini-Canon 9 pin connector for use with a RS232C cable in the
transmission of measurement data or V & I waveforms from the instrument to a PC.
This enables measurement data and instrument setup to be controlled from a remote personal computer.
1200, 2400, 4800, 9600, 19200, 38400 baud, 7/8 data bits, 1/2 stop bits, no/even/odd parity are selectable. (For data
format see Annex A)
Note : By means of a PC-485-BOX (code 4AAK4)/PC-485-BOARD (code 4AAK1) it is possible to connect a
MICROVIP3 PLUS to a RS485 monitoring network: its address is fixed to 1.
6.1 PC SOFTWARE
ELCONTROL ENERGY PC softwares for data acquisition are :
- VIPVIEW (code 4AAGW) - Win95/98 general purpose software for supervision, control and energy data acquisition
for RS485 serial networks VIPNET-485
- VIPLINK (code 4AAL3) - VIPLOAD (code 4AAO3) - Simple DOS software for reading, storage and printout of
energy measurements for RS485 serial networks VIPNET-485
- MicroWin - Win95/98 and NT4.0 powerful software for stand-alone instruments. It provides features like manual &
automatic measurements campaign, downloading of 1MB on board memory via high-speed serial link (38400 baud), V
& I harmonic analysis to 24th multiple with both DC component and displacement factor, V & I waveforms display and
printout, harmonic bar-chart display and printout.
RS232 CABLE
PIN FUNZIONE PIN
1 N.C. N.C.
2 RX TX 3
3 TX RX 2
4 N.C. N.C.
5 GND GND 5
6 N.C. N.C.
7 N.C. N.C.
8 N.C. N.C.
9 N.C. N.C.

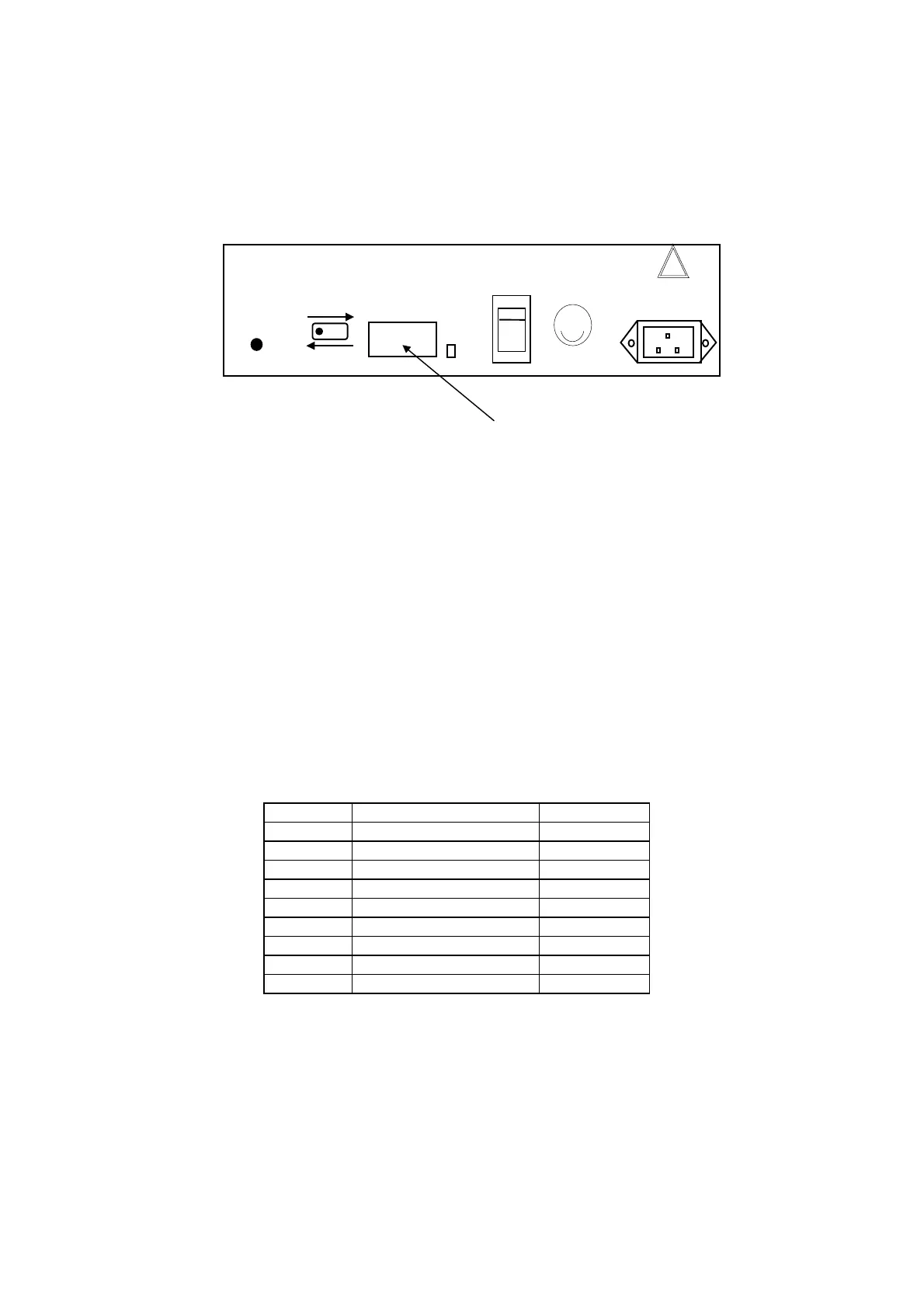

RS232C CONNECTOR
DISPLAY
LIGHT
O
O.F.
I
1 ø
3 ø
FUSE
!
230V
∼±
10%
50/60 Hz 4VA
80mA T 250V-
RS232C
PC
9 PIN CANON
FEMALE
MICROVIP3 PLUS
9 PIN CANON
MALE
