19

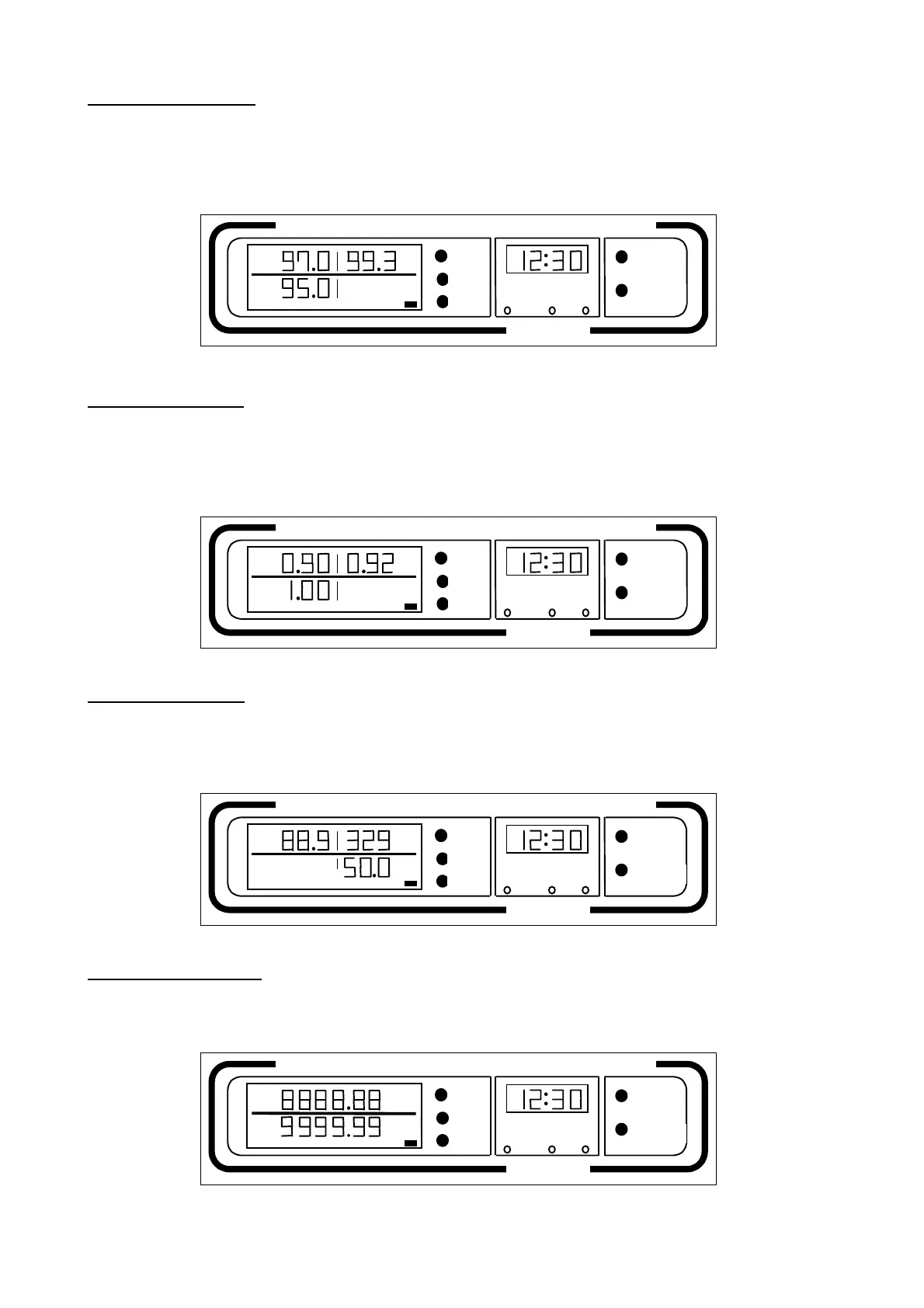

Fourth page (three phase)
kW L1 : Phase L1 active power.
kW L2 : Phase L2 active power.
kW L3 : Phase L3 active power.
(kW L3 only in three-phase, STAR; missing in DELTA)
ELCONTROL energy
MICROVIP3
Plus
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
PRG SELC SETC
PRINT
PAPER
SEL
SET
L2
L1
L3 kW
Fifth page (three-phase)
P.F. Cosø L1 : Phase L1 power factor
P.F. Cosø L2 : Phase L2 power factor
P.F. Cosø L3 : Phase L3 power factor
(only in three-phase, STAR; missing in DELTA)
ELCONTROL energy
MICROVIP3
Plus
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
PRG SELC SETC
PRINT
PAPER
SEL
SET
L2
L1
Cosø
L3
P.F.
Sixth page (three-phase)
kVAr : Reactive power of the three phase system
kVA : Apparent power of the three phase system
Hz : Voltage frequency
ELCONTROL energy
MICROVIP3
Plus
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
PRG SELC SETC
PRINT
PAPER
SEL
SET
kVA
kVAr
Hz
3 ø
Seventh page (three-phase)
kVArh : Reactive energy consumption for the three phase system (Apparent energy with STD2 option)
kWh : Active energy consumption for the three phase system
Note: Press SET to clear
ELCONTROL energy
MICROVIP3
Plus
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
PRG SELC SETC
PRINT
PAPER
SEL
SET
3 ø
kVArh
kWh
