INSTALLATION MANUAL
English 3

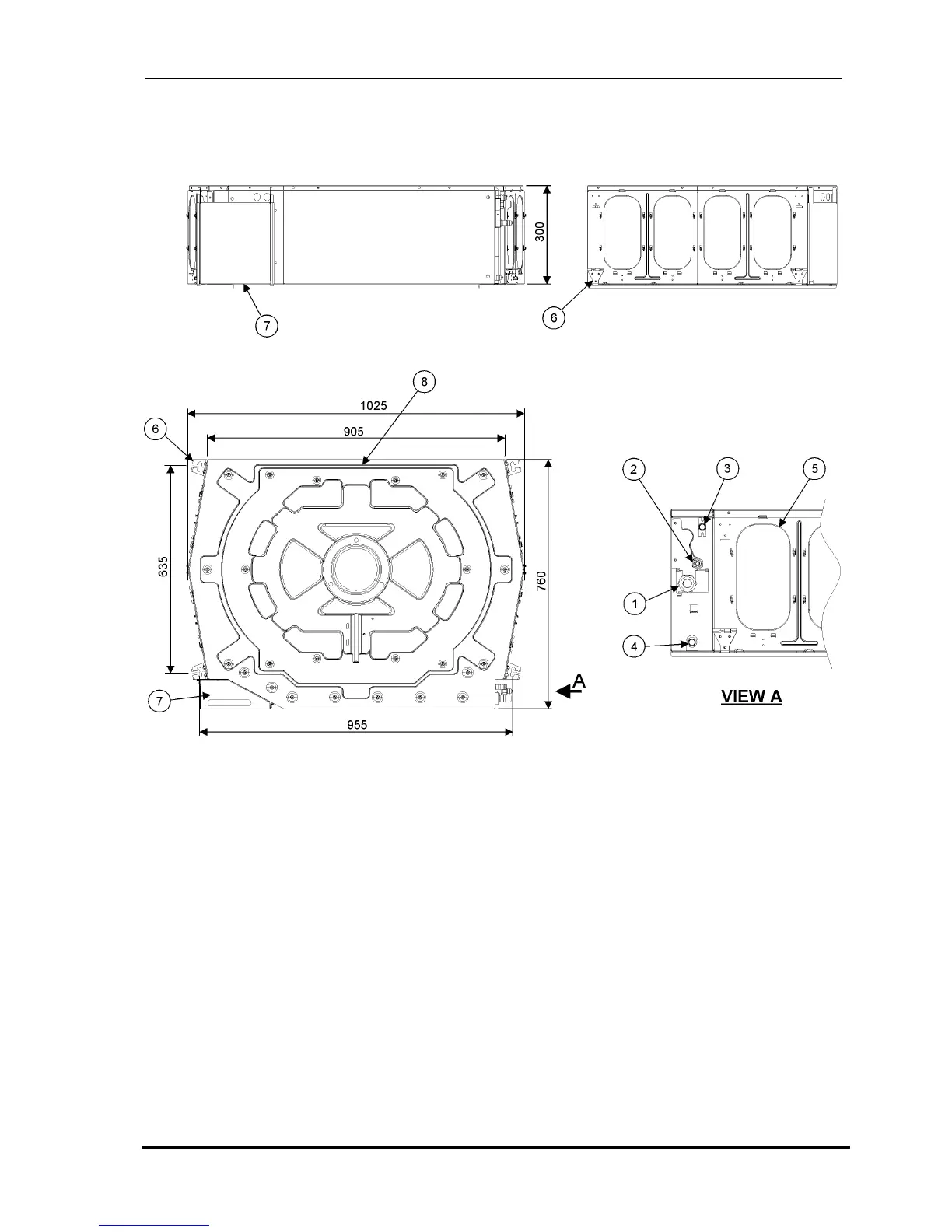

2.1 Indoor unit dimensions DNC - all types
1. Suction tube connector (flared)
2. Liquid tube connector (flared)
3. Pump outlet ∅ 16 mm
4. Drain pool plug (for servicing purposes only)
5. 8” air supply opening
6. Hanging bracket
7. Electrical box
8. Fresh air opening
Fig. 1. General dimensions of DNC indoor unit
