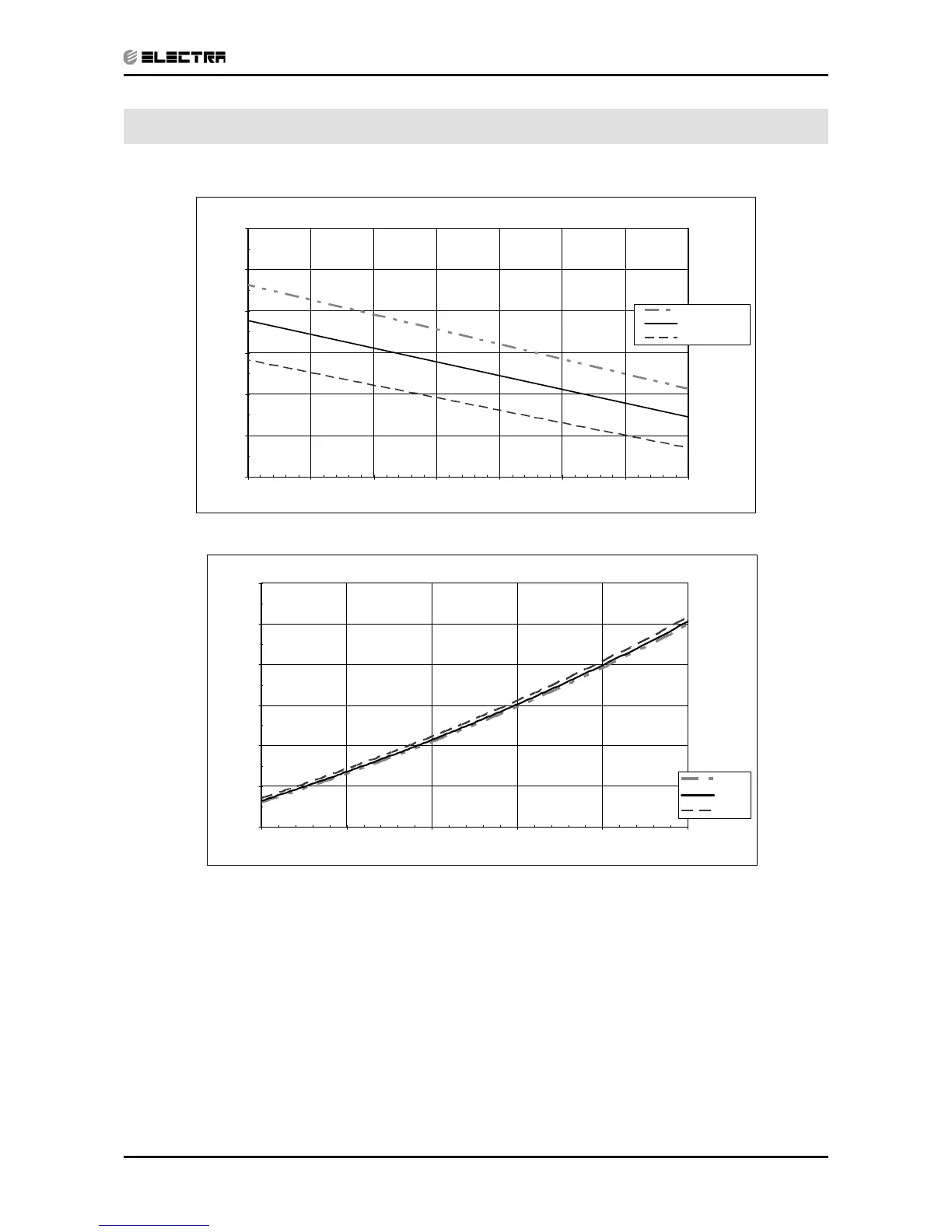

Electra DNC series - PERFORMANCE DATA & PRESSURE CURVES; Capacity Performance Curves

5-1
PERFORMANCE DATA & PRESSURE CURVES
Revision Y05-01Service Manual - DNC Series
DNC 955 - R22 COOLING CAPACITY
7,000
8,000
9,000
10,000
11,000
12,000
13,000
10 15 20 25 30 35 40 45
Outdoor Temp. (C DB)
CAPACITY [W)
30 C DB/50%RH
27 C DB/50%RH
23 C DB/50%RH
Indoor Temp.
DNC 955T - R22 HEATING CAPACITY
6,000
7,000
8,000
9,000
10,000
11,000
12,000
-10 -5 0 5 10 15
Outdoor Temp. (C DB)
CAPACITY [W)
20 C DB
18 C DB
15 C DB
5. PERFORMANCE DATA & PRESSURE CURVES
