INSTALLATION MANUAL
English 4
2.2 Outdoor unit dimensions DNC 955, DNC 955 3PH
1. Wiring connections
2. Suction tube connector (flared)
3. Liquid tube connector (flared)
4. Service valve
5. Air inlet
6. Air outlet

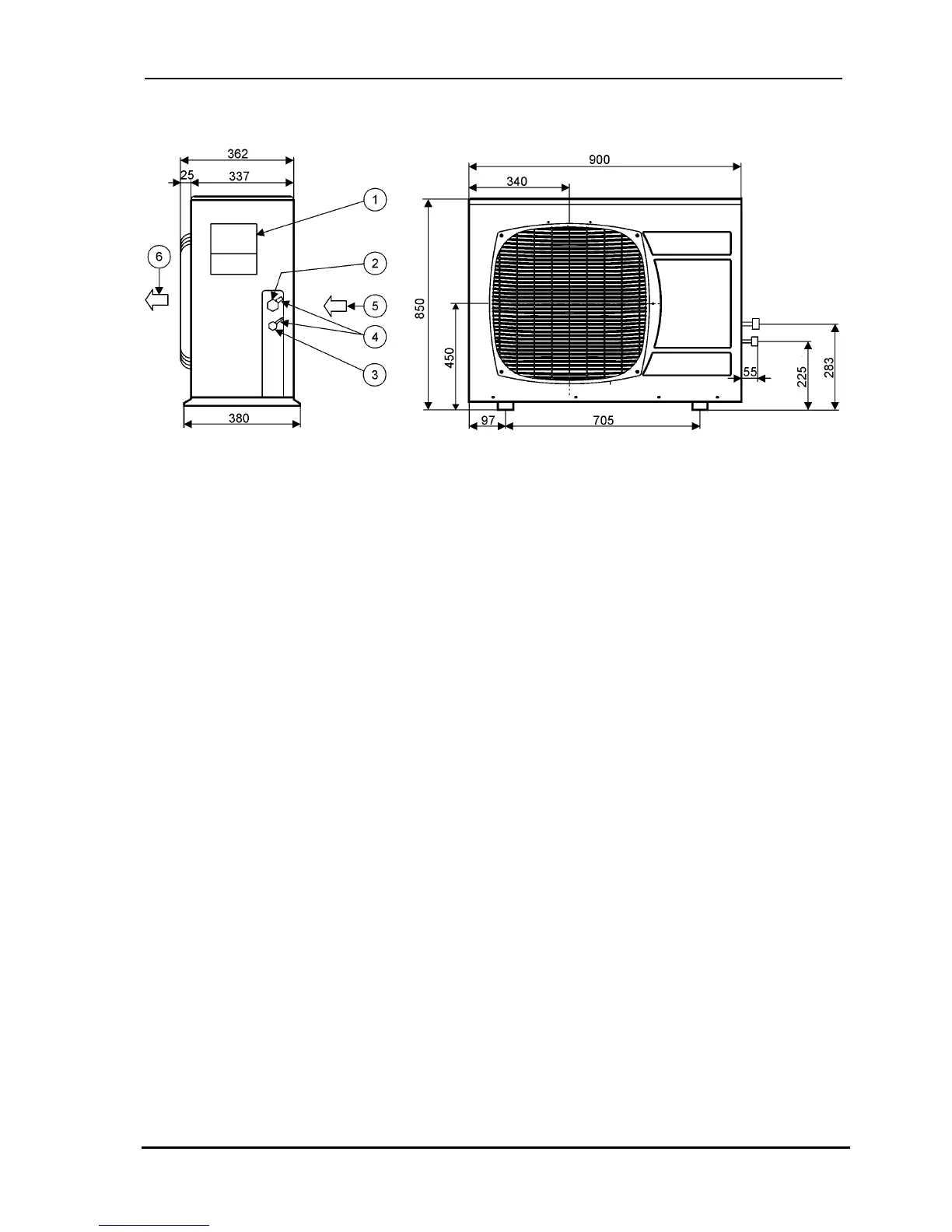

Fig. 2. General dimensions of DNC 955 outdoor unit
