INSTALLATION MANUAL
English 10

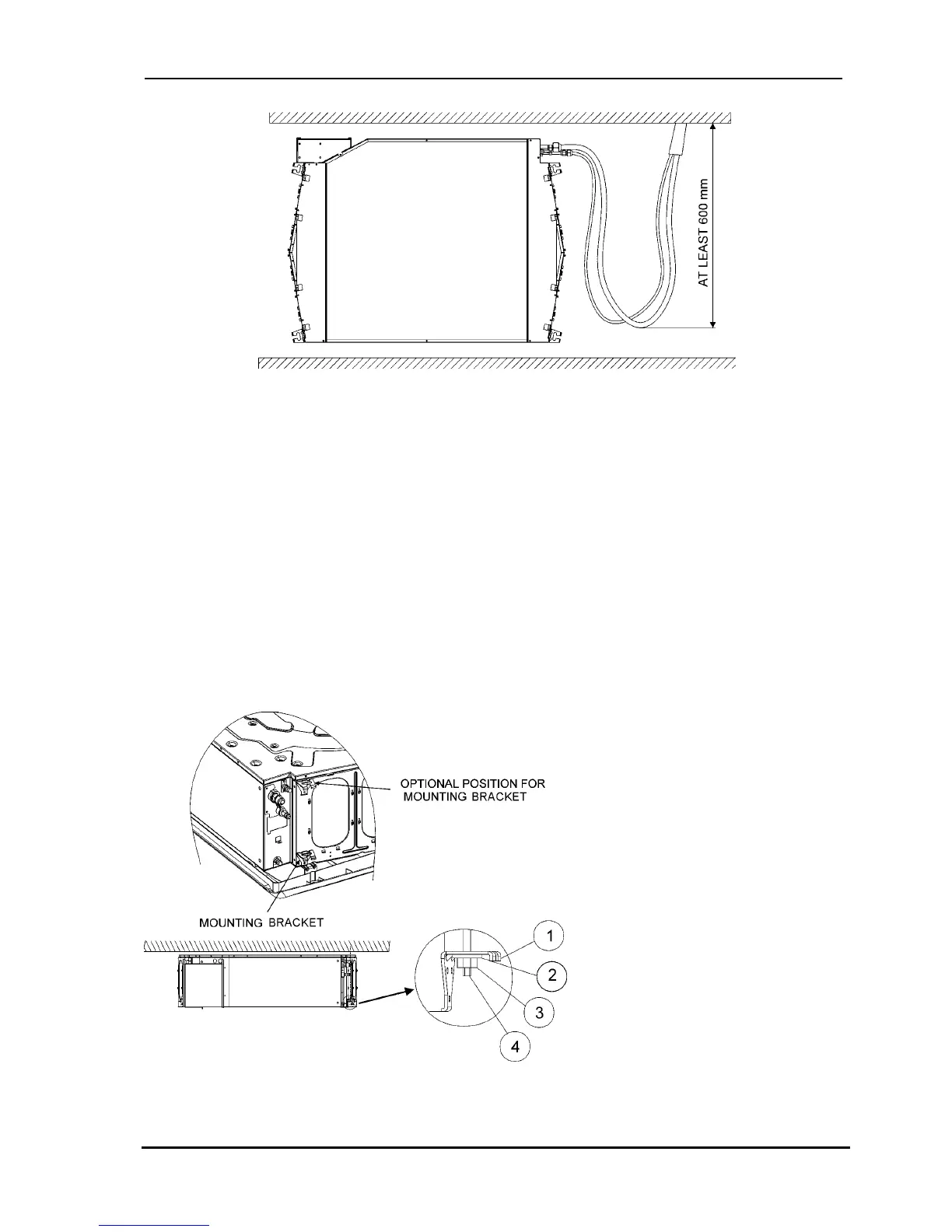

Fig. 7. Preparing gas tubing while using the mounting plate
4.1.2. Hanging the indoor unit by means of mounting brackets
A. Select location for the indoor unit while adhering to instructions provided in
paragraph 3.3.
B. Select location for the unit’s mounting brackets.
C. Mark the position of the hanging rods.
D. Drill the required holes for mounting flanges and install hanging rods.
E. Lift the unit carefully at all four corners.
F. Install the unit on the hanging rods by tightening the screws while making sure to keep
the unit in a perfectly horizontal position.
1. Mounting bracket
2. Washer (supplied)
3. Nut
4. Hanging rod (3/8“ ,5/16“)
Fig. 8. Hanging the indoor unit on mounting brackets
