INSTALLATION MANUAL
English 19

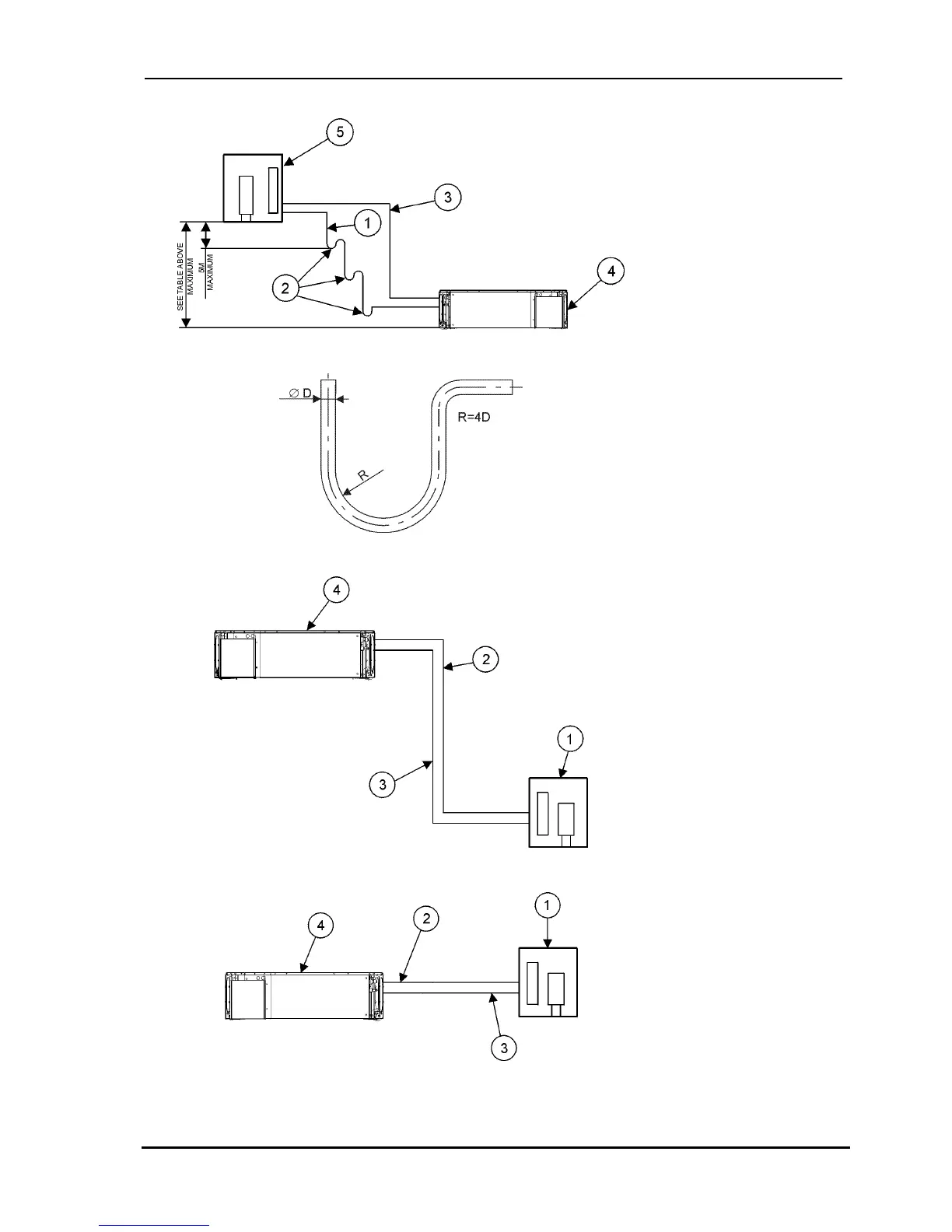

Fig. 19. Outdoor unit installed above the indoor unit
1. Suction tube
2. Oil trap every 5 m
3. Liquid tube
4. Indoor unit
5. Outdoor unit
Fig. 20. The radius of curve in oil trap
Fig. 21. Outdoor unit installed below the indoor unit
1. Outdoor unit
2. Liquid tube
3. Suction tube
4. Indoor unit
Fig. 22. Outdoor and indoor units are installed at
the same level
1. Outdoor unit
2. Suction tube
3. Liquid tube
4. Indoor unit
