PERFORMANCE DATA & PRESSURE CURVES
Revision Y05-01 Service Manual - DNC Series

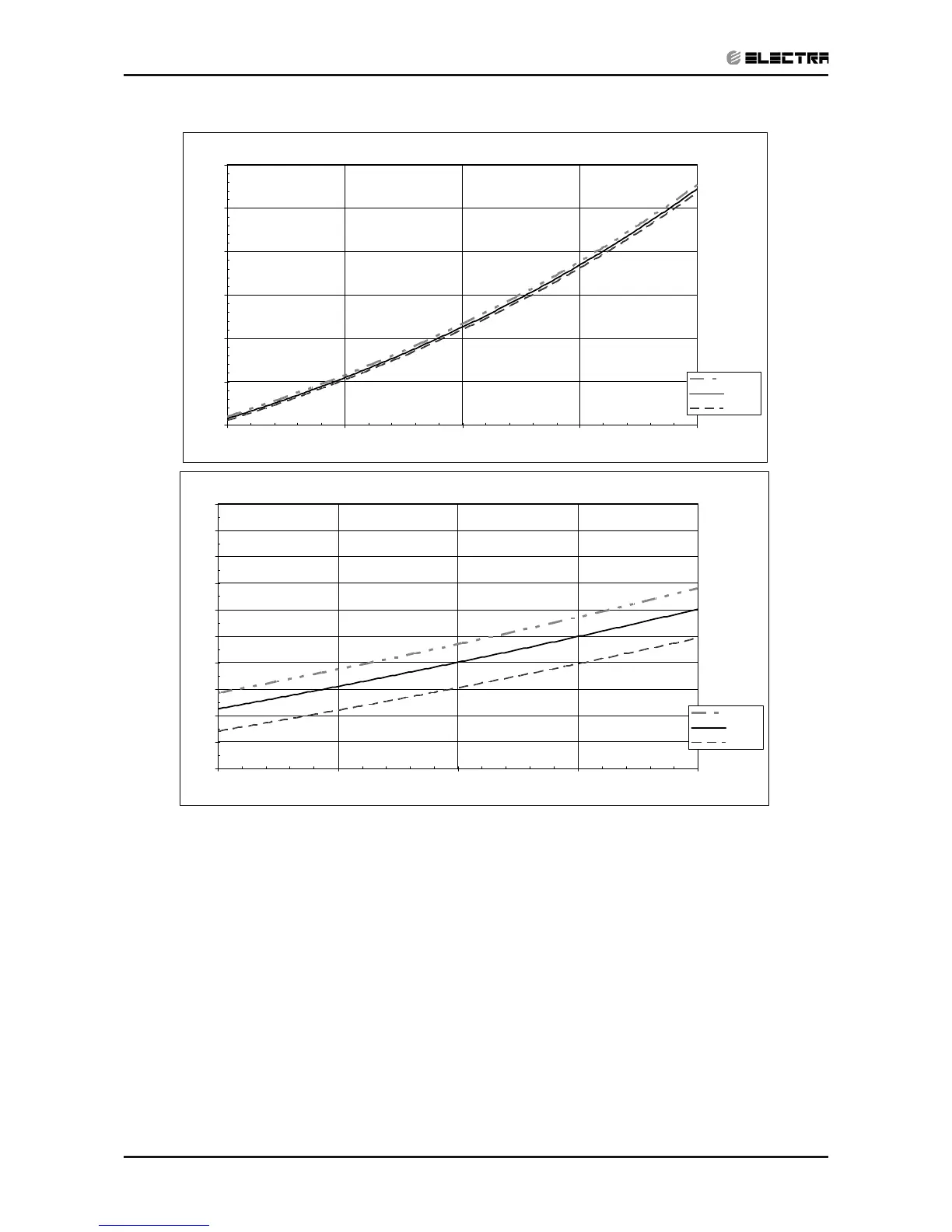

DNC 955T - R22 HEATING SUCTION PRESSURE
2.00
2.50
3.00
3.50
4.00
4.50
5.00
-5 0 5 10 15
Outdoor Temp. (C DB)
SUCTION PRESSURE [Bar(g)]
20 C DB
18 C DB
15 C DB
Indoor Temp.
DNC 955T - R22 HEATING DISCHARGE PRESSURE
10
11
12
13
14
15
16
17
18
19
20
-5 0 5 10 15
Outdoor Temp. (C DB)
DISCHARGE PRESSURE [Bar(g)]
20 C DB
18 C DB
15 C DB
Indoor Temp.
