PERFORMANCE DATA & PRESSURE CURVES
Revision Y05-01 Service Manual - DNC Series

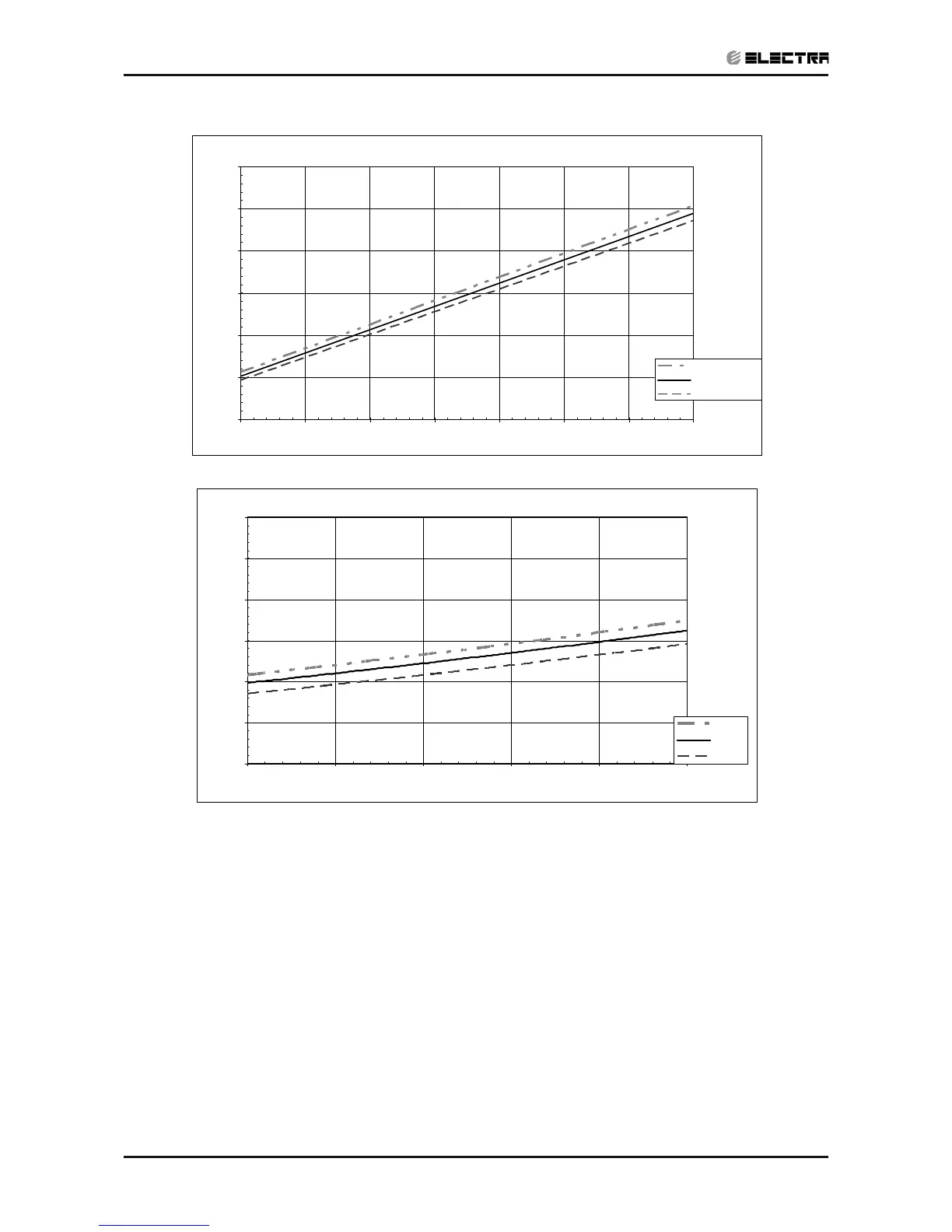

DNC 955T - R407C COOLING TOTAL INPUT
1,500
2,000
2,500
3,000
3,500
4,000
4,500
10 15 20 25 30 35 40 45
Outdoor Te mp. (C DB)
TOTAL INPUT (W)
30 C DB/50% RH
27 C DB/50% RH
23 C W B/50%RH
Indoor Temp.
DNC 955T - R407C HEATING TOTAL INPUT
1,500
2,000
2,500
3,000
3,500
4,000
4,500
-10 -5 0 5 10 15
Outdoor Temp. (C DB)
TOTAL INPUT (W
)
20 C DB
18 C DB
15 C DB
