PERFORMANCE DATA & PRESSURE CURVES
Revision Y05-01Service Manual - DNC Series

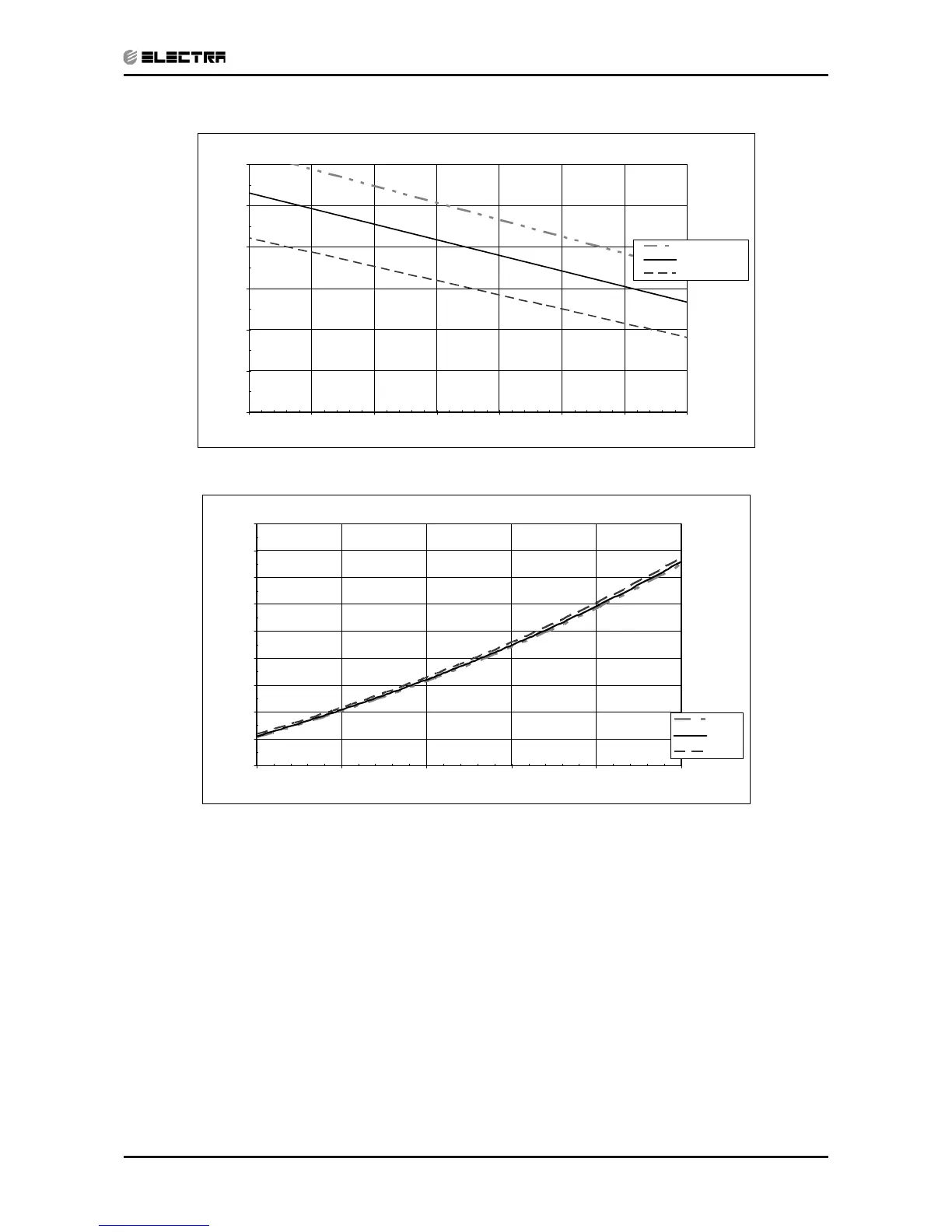

DNC 1155T - R407C COOLING CAPACITY
7,000
8,000
9,000
10,000
11,000
12,000
13,000
10 15 20 25 30 35 40 45
Outdoor Temp. (C DB)
CAPACITY [W)
30 C DB/50%RH
27 C DB/50%RH
23 C DB/50%RH
Indoor Temp.
DNC 1155T - R407C HEATING CAPACITY
6,000
7,000
8,000
9,000
10,000
11,000
12,000
13,000
14,000
15,000
-10 -5 0 5 10 15
Outdoor Temp. (C DB)
CAPACITY [W)
20 C DB
18 C DB
15 C DB
Indoor Temp.
