PERFORMANCE DATA & PRESSURE CURVES
Revision Y05-01Service Manual - DNC Series

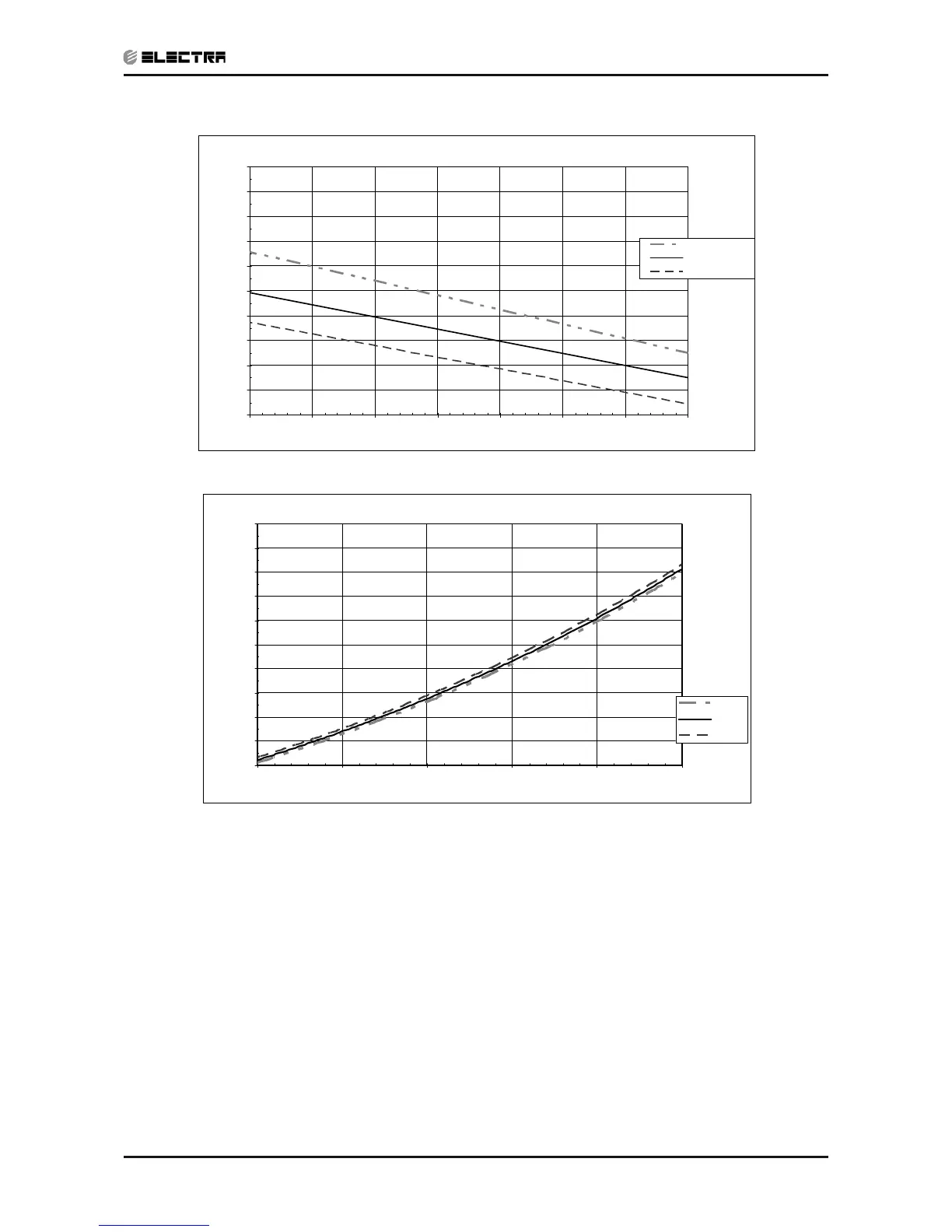

DNC-1255 COOLING CAPACITY
10,000
11,000
12,000
13,000
14,000
15,000
16,000
17,000
18,000
19,000
20,000
10 15 20 25 30 35 40 45
Outdoor Temp. (C DB)
CAPACITY [W)
30 C DB/50%RH
26 C DB/50%RH
23 C DB/50%RH
Indoor Temp.
DNC-1255 HEATING CAPACITY
8,000
9,000
10,000
11,000
12,000
13,000
14,000
15,000
16,000
17,000
18,000
-10 -5 0 5 10 15
Outdoor Temp. (C DB)
CAPACITY [W)
20 C DB
18 C DB
15 C DB
