Electra DNC series - Page 83

8-16
CONTROL SYSTEM
Revision Y05-01
Service Manual - DNC Series
(RT - SPT) in
o
c
+2
+1
0
-1
-2
-3
ON
OFF
ON
OFF
H/M/L
OFF
L
30 sec
HE1
HE2
IFAN
Notes:
1) COMP (or WVL), OFAN and RV are always OFF.
2) Refer to Sect 4.0.3.c for IFAN operations.

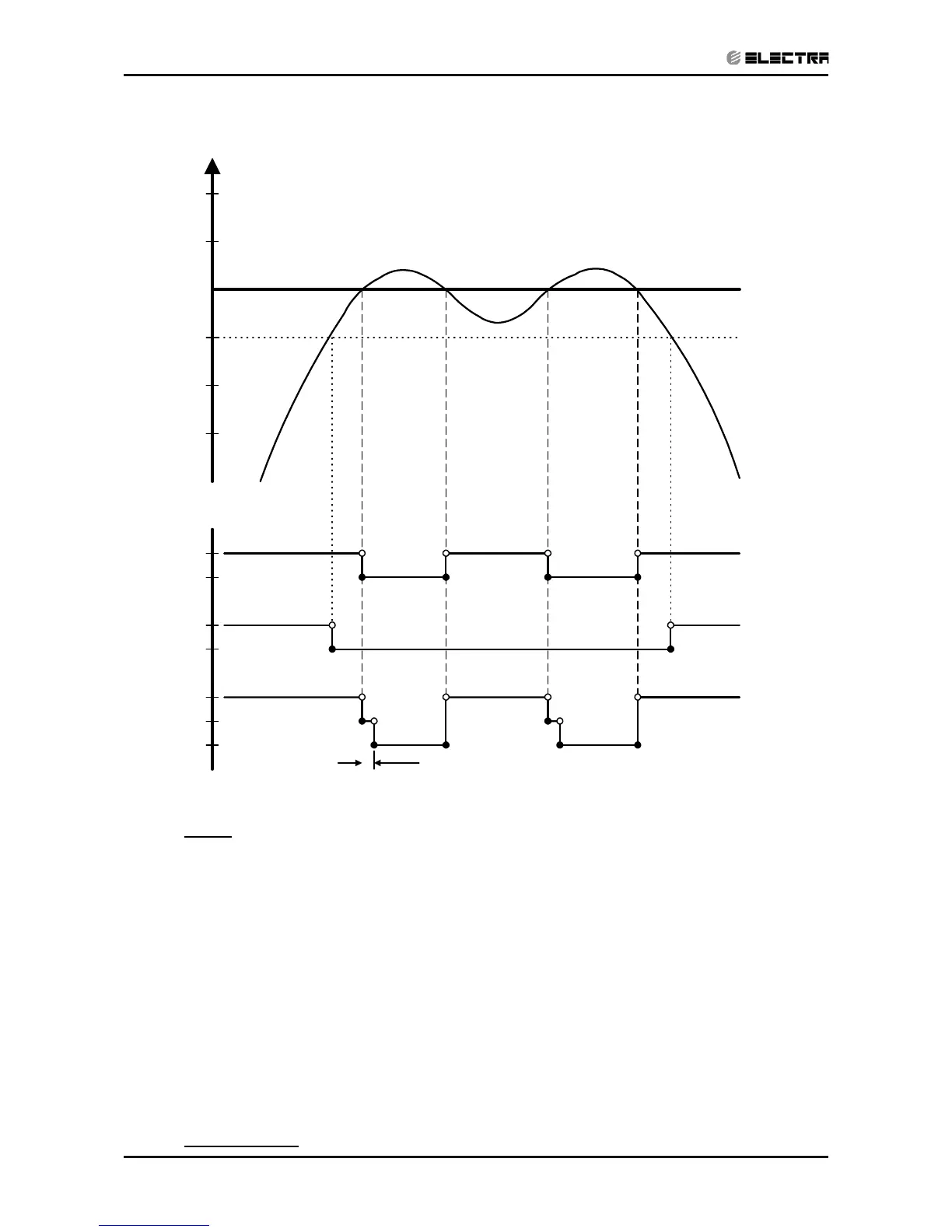

4.4. Heating, RH Group, with Autofan
Mode: Heat, Auto (at Heating)
Temp: Selected desired temperature
Fan: Auto
Timer: Any
I Feel: On or Off
Control function
