Electra SMART - Atm.0 S302 (Audio Mini); Att.0 S102 (Audio Classic)

ATM
Türklingel
Doorbell
UTP cat5e
(AWG 24)
5.4.3.3
ACB
GN
D
CD
+
14
DB
L2
D
BL
1
1
1
2
4
3
GND
2
1

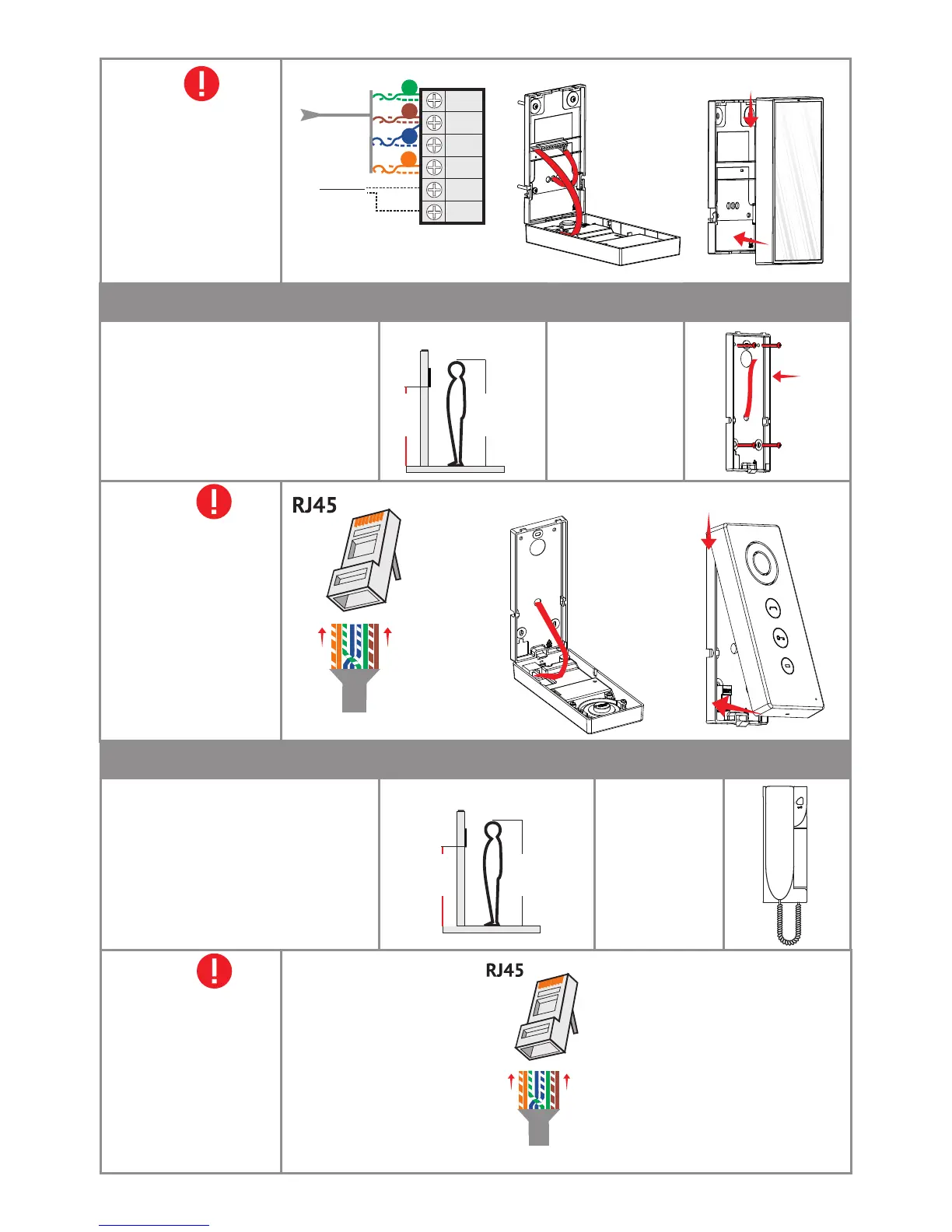

Electrical connections with
screw connectors
Conexiuni electrice cu conectori
cu șurub
Installation of the audio terminal
Instalarea terminalului audio
170 cm
135 cm
Surface
Pe suprafață
5.4.4. ATm.0S302 (audio mini)
5.4.4.1
5.4.4.2
Electrical connections with
RJ45 connector
Conexiuni electrice cu
conector RJ45
≈20cm
UTP cat5e
(AWG 24)
ACB
UTP cat5e
(AWG 24)
1
2
Installation of the audio terminal
Instalarea terminalului audio
170 cm
135 cm
Surface
Pe suprafață
5.4.5. ATt.0S102 (audio classic)
5.4.5.1
5.4.5.2
ACB
UTP cat5e
(AWG 24)
Electrical connections with
RJ45 connector
Conexiuni electrice cu
conector RJ45
