ELECTRO FREEZE CS700-FG - Figure 4 Plunger Box & Switch Assembly

ELECTRO FREEZE Shake Model CS700-FG
185231-17 4

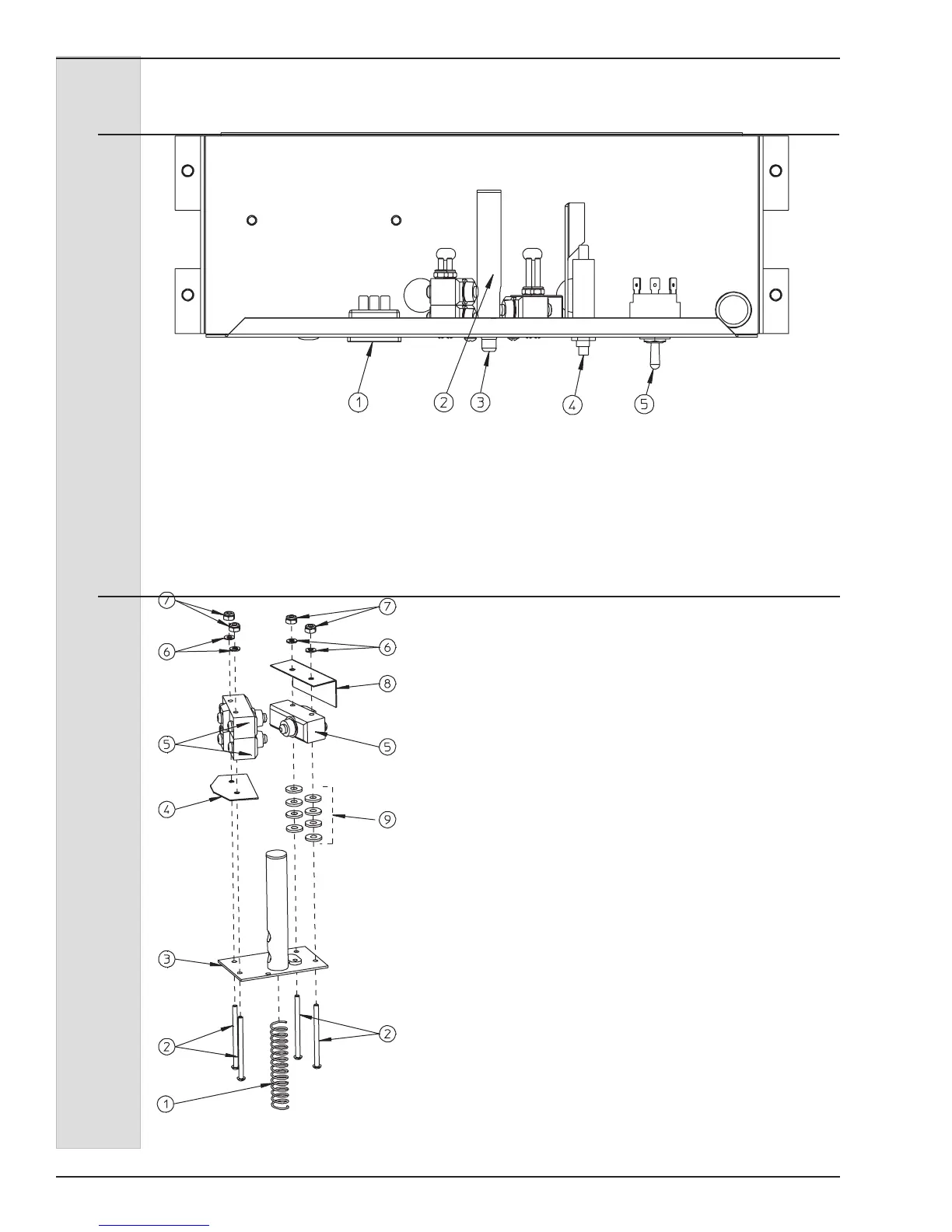

Figure 4 Plunger Box
Figure 5 Switch Assembly
Item Part No. Description
* ....... HC120767 ....... Switch-Assy. Plunger Shake Pres
1 ....... HC162303 ....... Spring-Plunger Rod
2 ....... HC159973 ....... Screw-RDHM #6-32 x 2 Zn
3 ....... HC120768 ....... Guide-Assy Push Rod
4 ....... HC137798 ....... Insulator-Switch
5 ....... HC150456 ....... Switch-Snap Button
6 ....... HC160393 ....... Washer-Flat #6 Brass
7 ....... HC160199 ....... Nut-El Stop #6-32 ZN
8 ....... HC139175 ....... Insulator-Switch
9 ....... HC160157 ....... Washer-1/2 x .196 x 1/16
* Includes all items above.
Item Part No. Description
1 .......HC150629 .... Receptacle-Snap In
2 ......HC120767 .... Switch-Assy. Plunger (See breakout below)
3 .......HC137760 .... Rod-Plunger Switch (Actuator Button)
4 .......HC150452 .... Breaker-Circuit 4.5A
5 .......HC150465 .... Switch-Toggle 3PDT Center Off
