ELECTRO FREEZE CS700-FG - Figure 7 Drive Shaft & Bearing Assembly

ELECTRO FREEZE Shake Model CS700-FG
185231-17 8
Item Part No. Description
* ............. HC120946 ........Bearing-Assy. Rear
1 ............HC130189 ........Spacer-Bearing
2 ............HC153024 ........Bearing-Ball 1.00 ID x 2.0472 OD
3 ............HC153025 ........Stamping-Retainer Plate
4 ............HC153026 ........Stamping-Main
5 ............HC160105 ........Nut-Hex 5/16-18 ZN
6 ............HC160142 ........Washer-Lock 5/16 ZN
7 ............HC160415 ........Bolt-Carriage 5/16-18 x 3 ZN
8 ............HC140824 ........Shaft-Drive
9 ............HC153614 ........Sheave-Driven
10 ............HC160056 ........Screw-SK Set
11 ............HC140823 ........Cap-Coupling
* Includes items 1 through 7.
Not Shown:
HC113948 ........Bar-Alignment (Loaner)
(used to align bearings to cylinder)
HC113948-01 ...Bar-Alignment (Purchase)

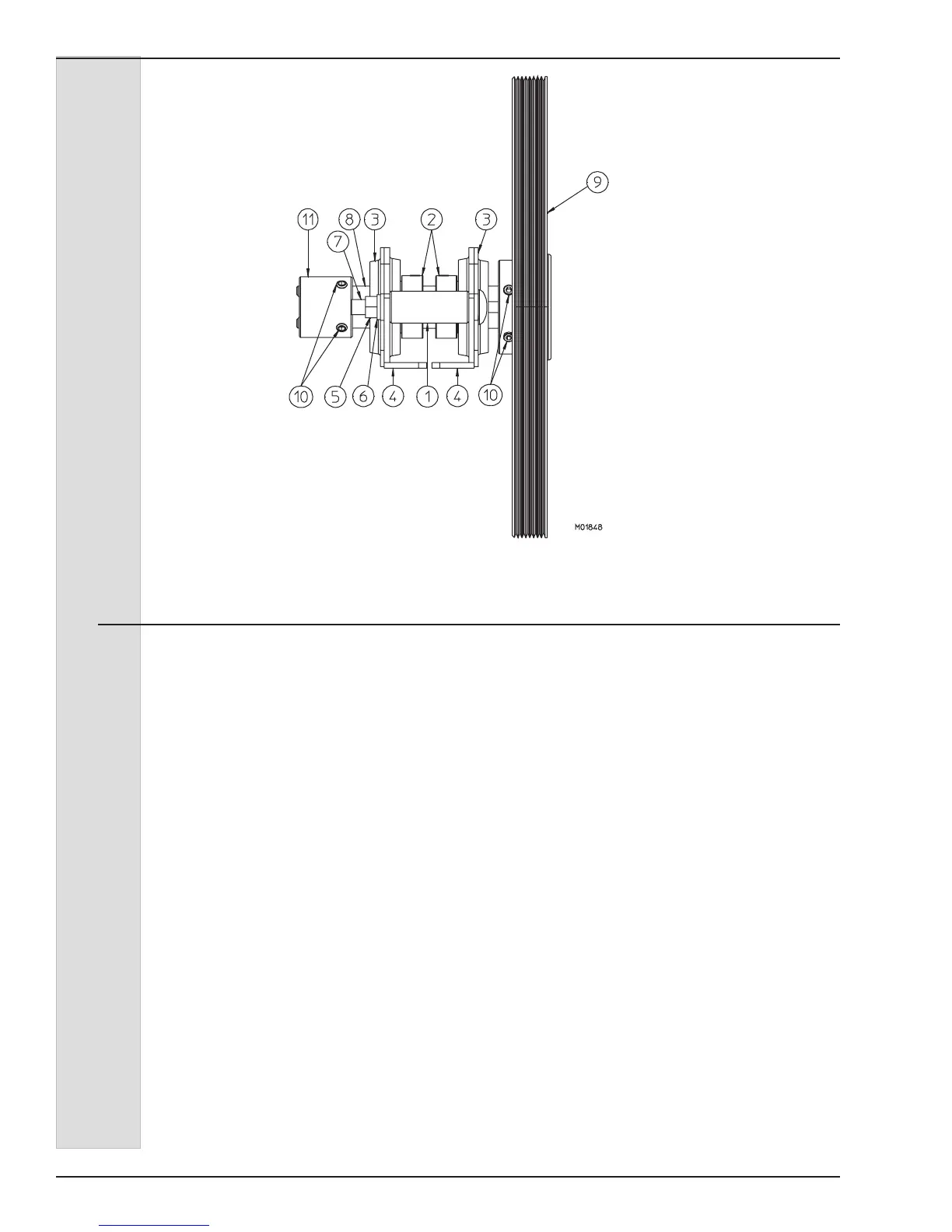

Figure 7 Drive Shaft and Bearing Assembly
