123456789012345

Item Part No. Description

1 150343 Relay-Control Flange DPDT 24V

2. 150795 Strip-Terminal

3 150345 Contactor-3 Pole 24VAC 50/60HZ (Beater Motor)

4 150345 Contactor-3 Pole 24VAC 50/60H (Compressor)

5 150261 Timer-.5-60 Sec. Delay on Break 24VAC

6 150253 Module-Plug on Vari Time .5-60 Sec.

7 150463 Switch-Toggle DPDT (AUTO/OFF/CLEAN-Selector)

8 150461 Switch-Toggle SPDT (DAY/NIGHT)

9 116613 Switch-Assy. Plunger Sides

9A 150456 Switch-Snap Button (Head Switch)

9B 150456 Switch-Snap Button (Plunger Switch)

115684 Guide-Assy. Push Rod (not shown)

137893 Insulator-Switch (not shown)

162303 Spring-Plunger Rod (not shown)

10 150560 Timer-.5-3 Sec. Delay on Make 24V

11 150257 Module-Plug on Vari Time .5-3 Sec.

12 115744 Switch-Assy. Plunger Center

115742 Guide-Assy. Push Rod (not shown)

150479 Switch-Push Button DPDT (not shown)

162303 Spring-Plunger Rod (not shown)

13 137760 Rod-Plunger Switch (Actuator Button)

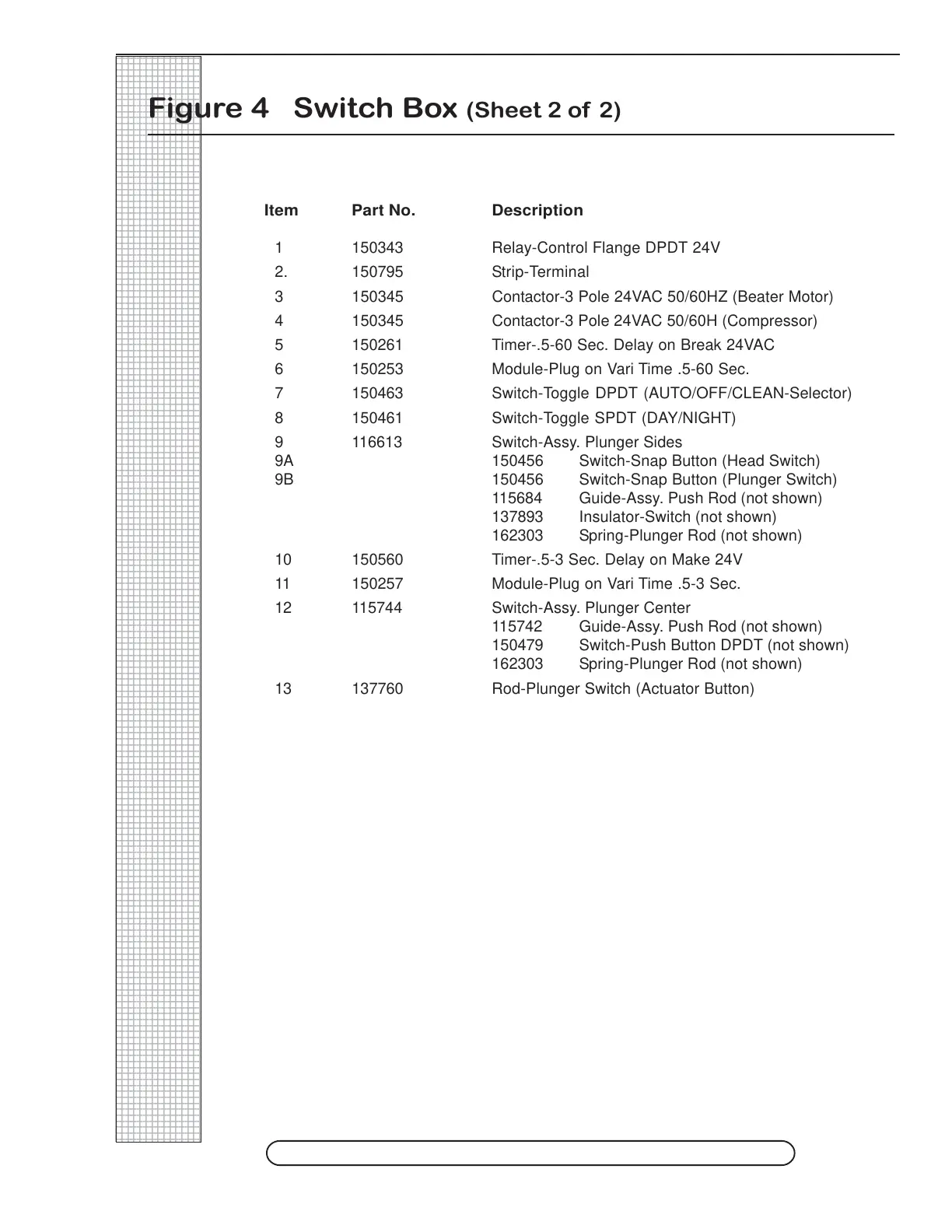

Figure 4 Switch Box (Sheet 2 of 2)
