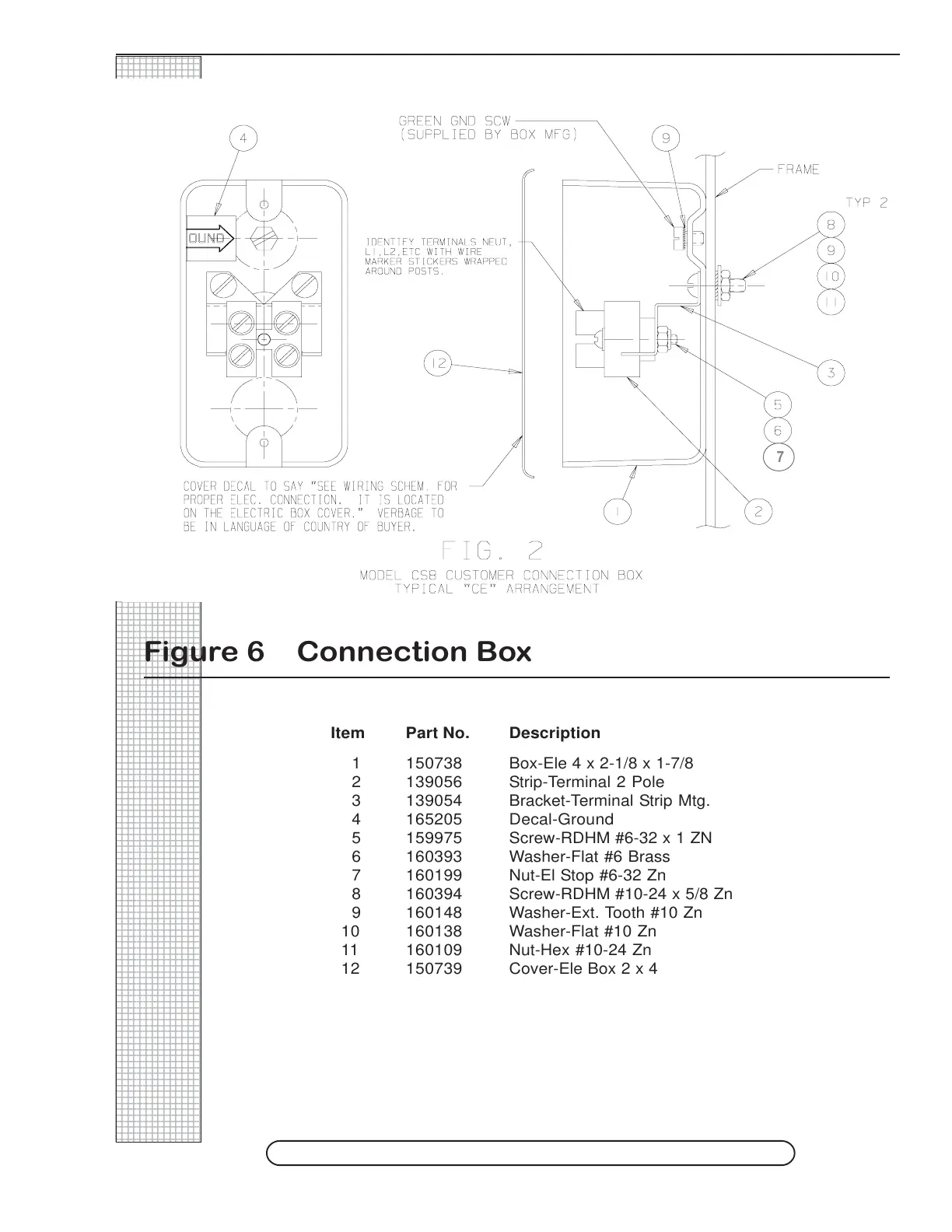

Figure 6 Connection Box

Item Part No. Description

1 150738 Box-Ele 4 x 2-1/8 x 1-7/8

2 139056 Strip-Terminal 2 Pole

3 139054 Bracket-Terminal Strip Mtg.

4 165205 Decal-Ground

5 159975 Screw-RDHM #6-32 x 1 ZN

6 160393 Washer-Flat #6 Brass

7 160199 Nut-El Stop #6-32 Zn

8 160394 Screw-RDHM #10-24 x 5/8 Zn

9 160148 Washer-Ext. Tooth #10 Zn

10 160138 Washer-Flat #10 Zn

11 160109 Nut-Hex #10-24 Zn

12 150739 Cover-Ele Box 2 x 4
