ELECTRO FREEZE Model CS8

184965-01

Use only original or authorized replacement parts with this freezer 9

2345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456

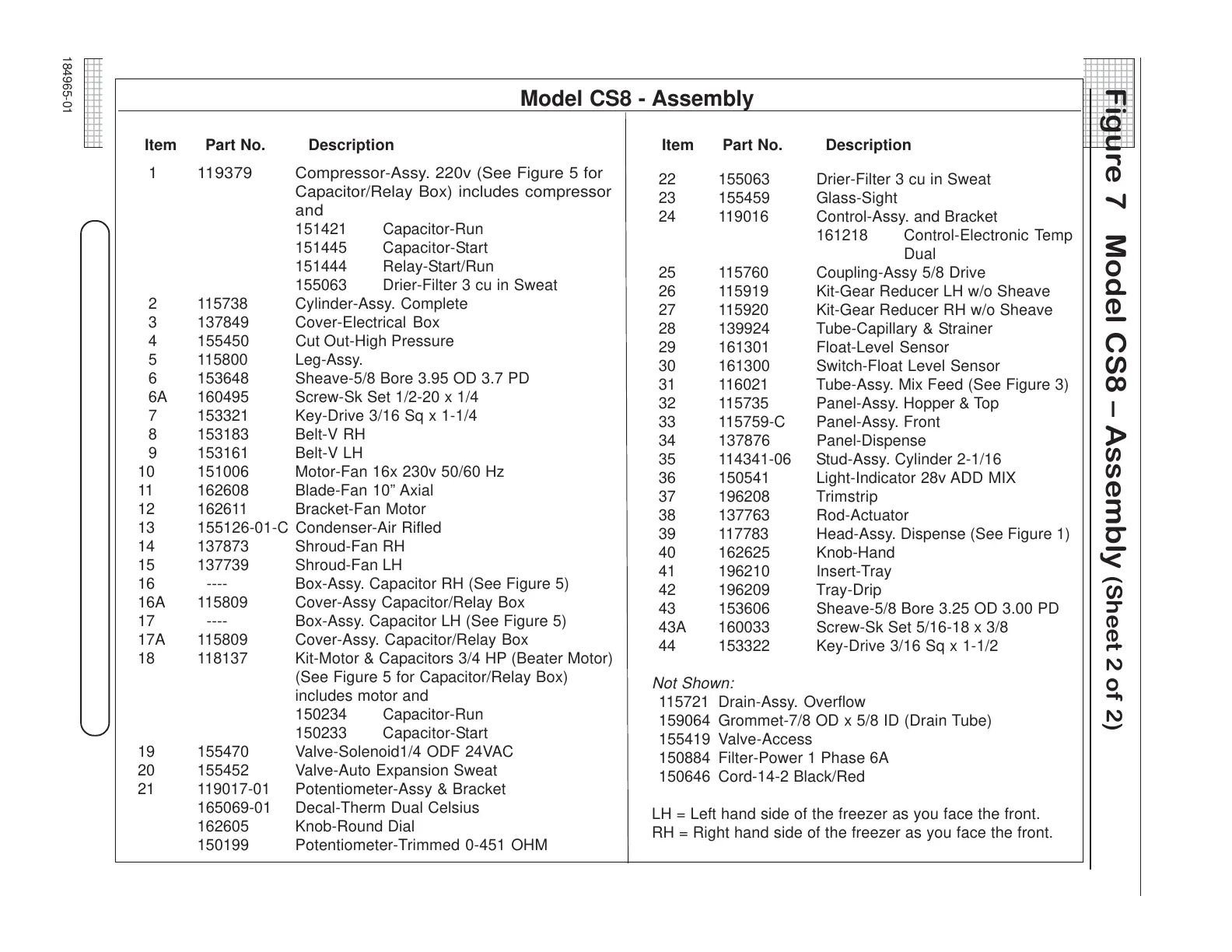

Figure 7 Model CS8 – Assembly (Sheet 2 of 2)

Item Part No. Description

22 155063 Drier-Filter 3 cu in Sweat

23 155459 Glass-Sight

24 119016 Control-Assy. and Bracket

161218 Control-Electronic Temp

Dual

25 115760 Coupling-Assy 5/8 Drive

26 115919 Kit-Gear Reducer LH w/o Sheave

27 115920 Kit-Gear Reducer RH w/o Sheave

28 139924 Tube-Capillary & Strainer

29 161301 Float-Level Sensor

30 161300 Switch-Float Level Sensor

31 116021 Tube-Assy. Mix Feed (See Figure 3)

32 115735 Panel-Assy. Hopper & Top

33 115759-C Panel-Assy. Front

34 137876 Panel-Dispense

35 114341-06 Stud-Assy. Cylinder 2-1/16

36 150541 Light-Indicator 28v ADD MIX

37 196208 Trimstrip

38 137763 Rod-Actuator

39 117783 Head-Assy. Dispense (See Figure 1)

40 162625 Knob-Hand

41 196210 Insert-Tray

42 196209 Tray-Drip

43 153606 Sheave-5/8 Bore 3.25 OD 3.00 PD

43A 160033 Screw-Sk Set 5/16-18 x 3/8

44 153322 Key-Drive 3/16 Sq x 1-1/2

Not Shown:

115721 Drain-Assy. Overflow

159064 Grommet-7/8 OD x 5/8 ID (Drain Tube)

155419 Valve-Access

150884 Filter-Power 1 Phase 6A

150646 Cord-14-2 Black/Red

LH = Left hand side of the freezer as you face the front.

RH = Right hand side of the freezer as you face the front.

1 119379 Compressor-Assy. 220v (See Figure 5 for

Capacitor/Relay Box) includes compressor

and

151421 Capacitor-Run

151445 Capacitor-Start

151444 Relay-Start/Run

155063 Drier-Filter 3 cu in Sweat

2 115738 Cylinder-Assy. Complete

3 137849 Cover-Electrical Box

4 155450 Cut Out-High Pressure

5 115800 Leg-Assy.

6 153648 Sheave-5/8 Bore 3.95 OD 3.7 PD

6A 160495 Screw-Sk Set 1/2-20 x 1/4

7 153321 Key-Drive 3/16 Sq x 1-1/4

8 153183 Belt-V RH

9 153161 Belt-V LH

10 151006 Motor-Fan 16x 230v 50/60 Hz

11 162608 Blade-Fan 10” Axial

12 162611 Bracket-Fan Motor

13 155126-01-C Condenser-Air Rifled

14 137873 Shroud-Fan RH

15 137739 Shroud-Fan LH

16 ---- Box-Assy. Capacitor RH (See Figure 5)

16A 115809 Cover-Assy Capacitor/Relay Box

17 ---- Box-Assy. Capacitor LH (See Figure 5)

17A 115809 Cover-Assy. Capacitor/Relay Box

18 118137 Kit-Motor & Capacitors 3/4 HP (Beater Motor)

(See Figure 5 for Capacitor/Relay Box)

includes motor and

150234 Capacitor-Run

150233 Capacitor-Start

19 155470 Valve-Solenoid1/4 ODF 24VAC

20 155452 Valve-Auto Expansion Sweat

21 119017-01 Potentiometer-Assy & Bracket

165069-01 Decal-Therm Dual Celsius

162605 Knob-Round Dial

150199 Potentiometer-Trimmed 0-451 OHM

Item Part No. Description

Model CS8 - Assembly

Item Part No. Description

184965-01

ELECTRO FREEZE CS8 - CS8 Assembly
